Homefong 7 Inch Video Intercom System Touch Screen Wired Video Door Phone with Picture/Photo/Video Recording SD Card Support

$451.03 $428.48

Out of stock


SKU: 32495835417
Category:

Description

Notice

1:We could not guarantee that our video door phone system could be compatible with your own video intercom system and access control system.If you need to connect other system ,please contact us for technical support before buying.

2:Attempt to disassemble the product can damage it and void your warranty.Please contact us if your products faults,you will have to assume all responsibility without authorization from us.

7″ Video Door Phone intercom doorbell camera system 7 Inch color video door phone camera intercom system
7 Inch HD metal video door phone doorbell intercom
7″ video door intercom camera entry system 7″ video camera door phone intercom system
Product Overview Color Video Door Phone camera intercom system

Compatibility with Russian,Provide customized solution !

Russian call panels, Russian OSD menu are customizable.

Please contact us if you need customize.

Day/Night vision, makes you see clearly at night

The outdoor camera has 3pcs 850 nanometer IR LED and IR sensor ,
the IR sensor will turn on the IR led automatically when light in low level.
It allows you can see clearly who is knocking the door even at night. It is brilliant design.

Video and Audio Chat, Dual-way intercom,Video/Picture Record

Built-in microphone supports bi-directional communication .
ultra-clear sound quality without any noise.Built-in memory can save 80 pictures, support external max 32GB SD card(Not Included) ,It will record automatically when someone ring the bell

1200TVL , see Sharper and more Details

1200TVL High Resolution HD CMOS, see sharper and more details than 800TVL/600TVL

Adjust Lock Time,Compatible with all electronic lock

Support to connect an electrical lock to this system.
With this function,you just need to press the unlock button on monitor.

Support to adjust the time between lock and unlock, so, you can connect all electronic lock.

Support to adjust sound volume

There are 3 mode sound volume of your living.This system has the option of adjusting the volume. There is a flexible option of setting the volume from mute and up to 10, making it convenient for night time.

Further functions with the upgrade version monitor we are selling now:

Multi-languages in the OSD menu of each monitor

Every piece of monitor has 6 languages in the OSD menu of monitor: English, Russian , Spanish, French, Arabic and Japanese.

Show time and date When the monitor in standby mode, you are able to set the monitor to show the time and date if you want.

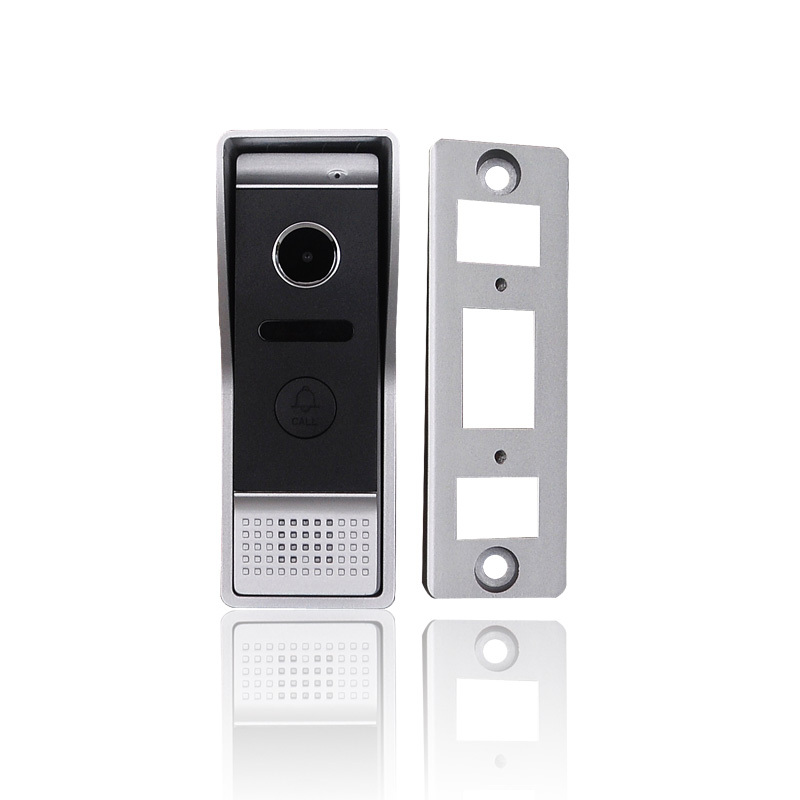

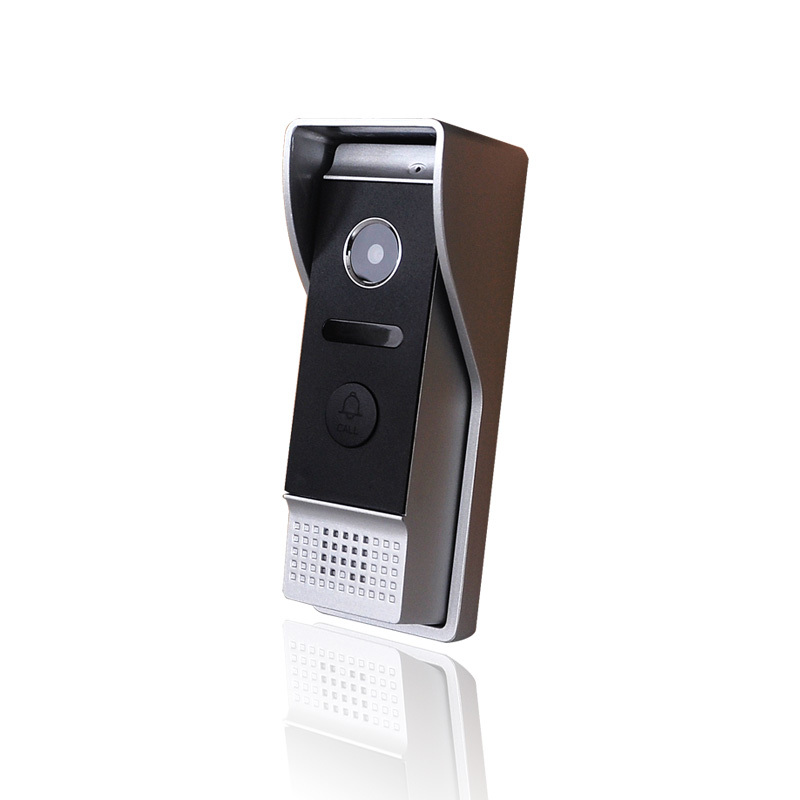

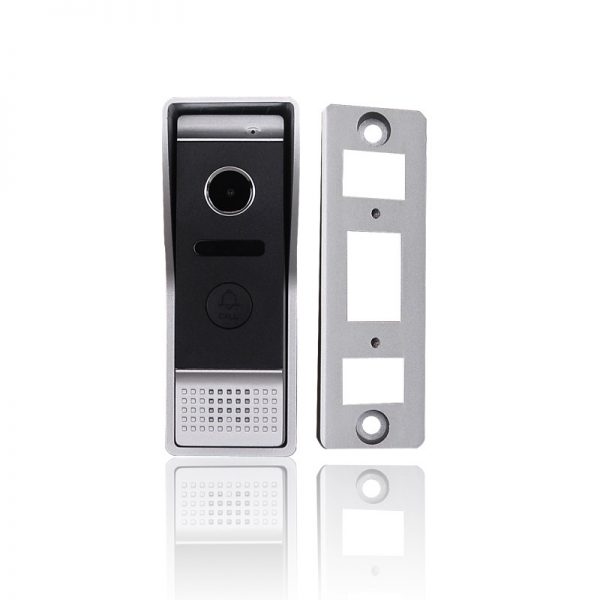

Product Show – DP203 Series Color Video Door Phone camera intercom system

IR night vision camera

Advanced infrared-assisted lighting feature,enables you to identify the visitors even during night time

IP 65 Water-proof

whatever the indoor and outdoor, sunny day, rainy day, cloudy day, fog, snow, It can work stable

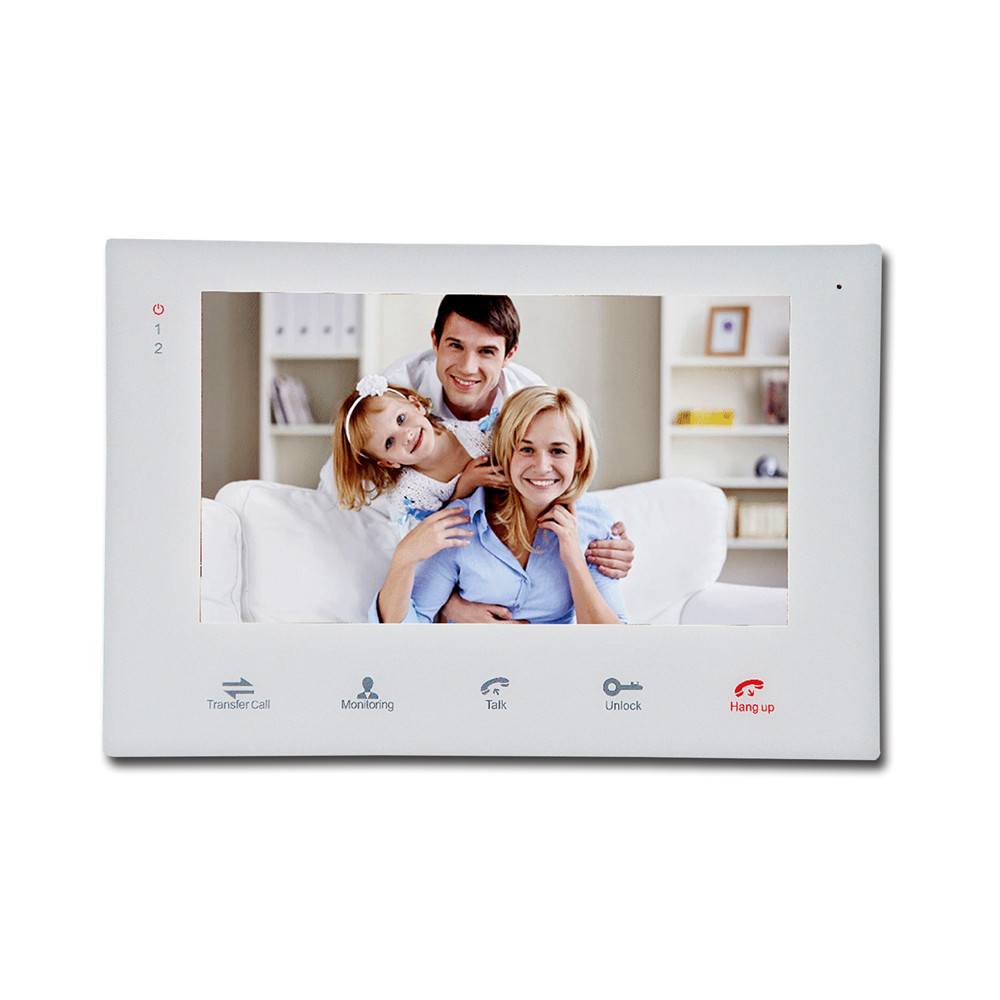

Product Show – Indoor monitor Color Video Door Phone camera intercom system

Touch Sensor Buttons

Touch sensor button with blue and red back-light LED make the monitor more fashionable beautiful

variety of interfaces

Support 2 outdoor video camera doorbell phone,2 security cameras,slave indoor monitor etc.

Product Specs – Doorbell Color Video Door Phone camera intercom system
Model DP203Series
camera sensor 1/3″ CMOS , 1200TV-Line
Lens 3.7mm Lens
Night Vision IR light
Electronic lock support
Power Consumption 200mA Max.
Material aluminium alloy panel with Arcylic Layer
Waterproof IP65
Operation Temp. -40°c +60°c
Installation Surface mounted
Product Specs – DM708 Series Color Video Door Phone camera intercom system
Monitor 7″ wide color HD TFT LED ,16:9 Display
Resolution 800X480
Memory Built-in memory can save 80 pictures, support external max. 32GB SD card
Intercom mode Hands-free dual-way communication
Delay calling time 120s
Keypad touch sensor button
Power input External power DC12V
Power Consumption Standby:1W; Working:5W
Material Acrylic Piano Lacquer shell
Recording picture:jpeg format;video:avi format
Operation Temp. -10°c +60°c
Installation Surface mount

More products that you may be interested in:

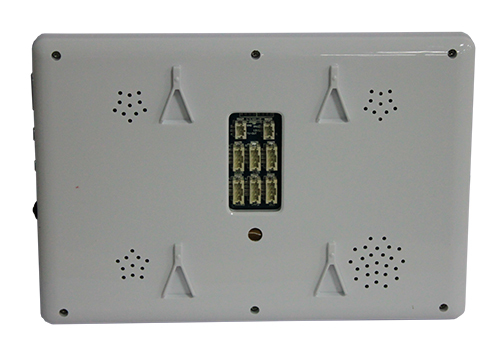

The back of monitor with ” Homefong” logo

Color Video Door Phone camera intercom system
NO. Name Discription
1 LED 1 Power LED
2 LED 2 Door 1 LED
3 LED 3 Door 2 LED
4 TFT display View visitor’s image displayed on the TFT screen
5 Operation buttons Human body sensor touch buttons
6 Microphone Transmit the voice to outdoor camera
7 Speaker Sound from outdoor camera
8 Settings button Menu setting button
9 Increase Volume Increase the ringer vilume of the indoor device or increase volume for the indoor device during intercom
10 Decrease Volume Decrease the ringer vilume of the indoor device or decrease volume for the indoor device during intercom
11 Snapshot To capture a frame of the video stream as a still photo
12 Record Start manual record or stop manual record
13 SD card slot For the models with SD card for recording and photograph
DESCRIPTION ON SYMBOL
1 Intercom call or transfer calls to another indoor unit
2 Watch the door and camera images
3 Release the door lock
4 Call button
5 Hang up buttons
6 1.The button is a composite key,users can press the button,scroll the button upward or download.
2,In srandby mode,press the button once to quickly access the menu.
3,In main menu settings,scroll the button upward or download to select sub-menu,In sub-menu settings,press button to select menu iptions,scroll button upward or download to adjust values of each option,then press button to confirm.When select option “Return” on the menu,press button to exit menu interface,and the indoor device will be into standby mode.
7 In monitoring or talking mode,press the button to capture a frame of the current video stream as a still photo
8 In monitoring or talking mode,press the button to start manual record,and press it again to stop manual record.
DESCRIPTION ON LED INDICATOR
1 The power indicator of the indoor unit
2 The door 1 state lights, to door 1 working when the light is on
3 The door 2 state lights, to door 2 working when the light is on
Product Size Color Video Door Phone camera intercom system

HD TFT Monitor

Video Door Phone camera

How to install – Monitor Color Video Door Phone camera intercom system
How to install – doorbell Color Video Door Phone camera intercom system
How to use Color Video Door Phone camera intercom system
What’s in the box Color Video Door Phone camera intercom system
Monitor
x 3
Monitor mounting plate
x 3
Door camera
x 2
Door camera mounting plate
x 2
Power adapter
x 3
200mm 4 pin connector
x 15
200mm 2 pin connector
x 3
Screw Bag
x 5
User Manual
x 5
Guarantee Card
x 5
Qualified certificate
x 5
Notice:Please note that the extension cable is not included in this item.You need to buy seperately according to your needs. When transmission distance is longer,video and audio singnal suffer more attenuation.Please use standard cables to match the transmission distance.if you have any questions please contact us before you order this item
Kindly Remind: We will send applicative power adapter to you according to your states.
AUtype EUtype UKtype UStype
Related Selection On Sale
7″ video 1200TVL door phone record door access control 7″ white 1200TVL video doorbell camera door phone record
7″ HD LCD video intercom record system with doorbell camera 4″ door phone intercom with door release

Additional information

Installation

Wall Mounting

Camera Sensor type

CMOS

Intercom Monitor Size

7 Inch Acrylic Piano Lacquer shell Video Door Phone

Calling Mode

Dual way audio communication Video Door Phone

Doorbell Camera Sensor

1/3''CMOS, 1200TVL

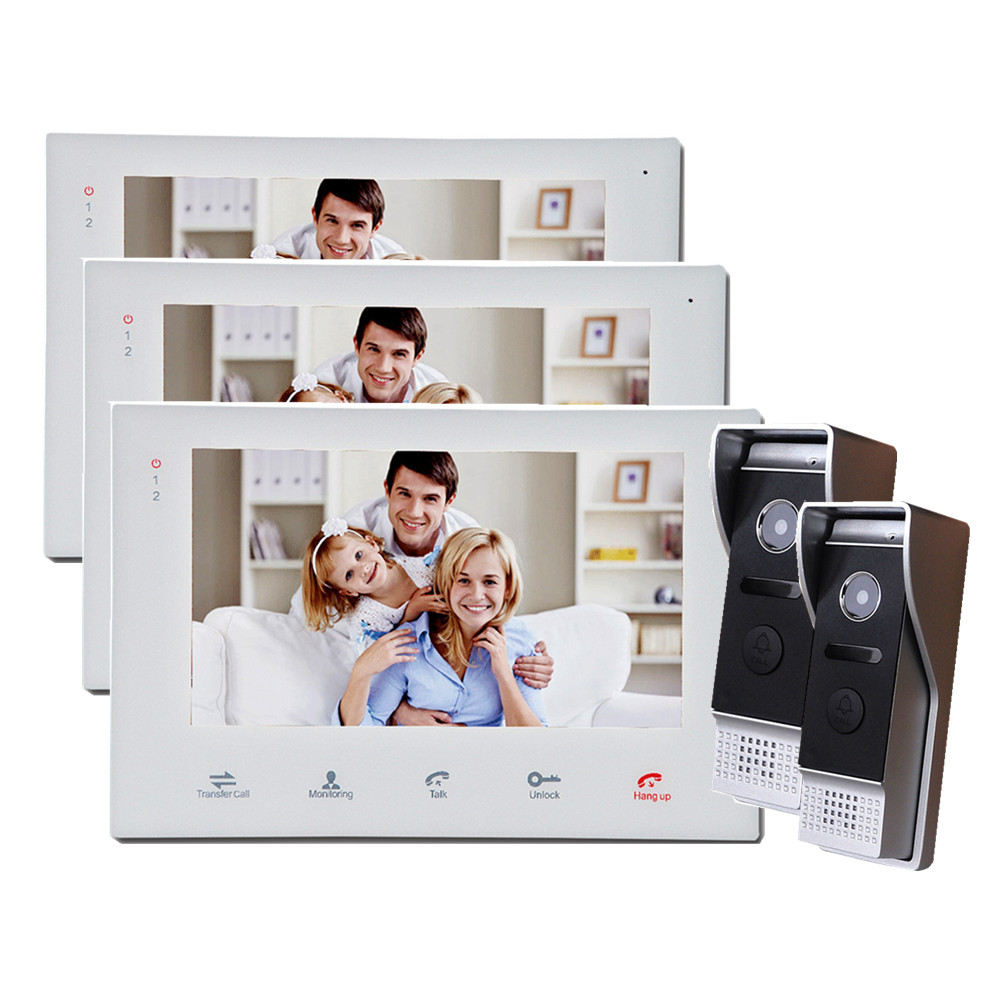

Include

2 Doorbell Camera+3 indoor Monitor

Rings

Different melodies,chimes

SD Card:

support up to 32GB(Not included in the package)

Power Source

outdoor doorbell powered by indoor monitor

Waterproof level:

IP65 Aluminium Alloy Panel

Zone Input

Other

Access Control

Other

Viewing Angle (°)

Other

Resolution

800 x 480

Camera

Other

Size

7 INCH

Connection Method

Wired

Display Screen Type

Color

Power

Other

Sensor Size(Inch)

1/3

Kit Configuration

Two to Three Video Doorphone

Type

Intercom System

Material

Acrylic Piano Lacquer

Communication Interface

Wired

Technology

Analog

Doorbell

Yes

Answering Mode

Hands-free

Samrt Home Interface

No

Waterproof

Yes

Display Screen Size(inch)

7

Model Number

DS-3M708-2P203T

Brand Name

HomeFong

IP Camera Interface

No

Recording

Video/Picture Video Intercom Monitor
