Hikvision Video Access Control-DS-KV8102-1A(DS-KV8102-IM),WDR camera,Visual intercom doorbell waterproof,IC card,IP intercom

213.16$ 202.50$

7 in stock

Qty :

SKU: 32719030236


If you need a mounting box, please open this link:

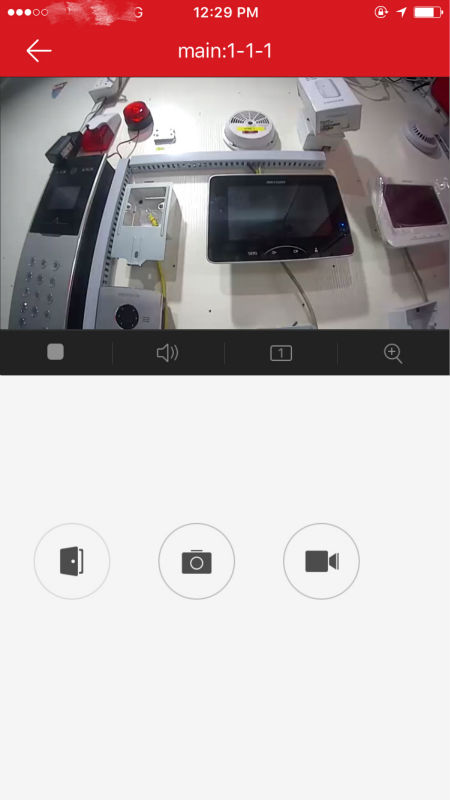

Mobile APP:Hik-connect(The WIFI of the indoor monitor must be activated)

APP Support multi language;

When the outdoor station access to HIKVISION NVR, and the light is relatively dark, IR light in the outdoor station will be auto opened,Provide lighting for NVR recording,and every 30 minutes to test a brightness.(The base version does not have this feature.)

When someone pushes the button of outdoor station,you can receive information on your mobile phone,you can use the phone to unlock door/Electric door closer,and answer/hang up the video;

The outdoor station can access to HIKVISION NVR,and it can live view,record,playback. You can swipe card on the outdoor station to unlock,can also swipe card to HIKVISION 485 card reader. If you use 2/4-button outdoor station, indoor monitors support video dialogue among each room number,For example 101 call 201,101 call 301,201 call 301,and if indoor monitor has a camera,Each room can see each other’s video images.; If you use one-button outdoor station,and you have more than one indoor monitor,Master indoor monitor and Slave indoor monitor can’t support video dialogue between them,becuse there is only one room number. The indoor monitor can take a sub video stream from HIKVISION camera,without time limit!(The base version does not have this feature.) DS-KH8301-WT/DS-KH8501-WT can insert TF memory card, support video recode and playback video; The indoor monitor has the function of Alarm input and Alarm output,and it can connect to Infrared alarm detectors, smoke detectors, gas detectors, magnetometer sensor,and it can connect to Acousto-optic alarm; When the indoor monitor alarms,it can push information to your phone. The indoor monitor can control opening Electric Lock and Hikvision fingerprint/smart lock;

Cabin bottom box, IC card entrance guard read head, 1.3 million pixels wide dynamic 120 ° wide Angle lens Single button the door machine, the machine can achieve the call more indoor machine model, or more than the door machine call many sets of indoor machine model, support the door machine directly authorized user card, call captured images, control of electric locks the door machine support. Can be added to the hik NVR video directly

System parameters High-performance embedded processor SOC processors Operating system, embedded Linux operating system Video parameters 130 w pixel cameras, CMOS low illumination high-definition color video camera Video compression standard h. 264 1280 * 720 resolution Video frame rate of 25 frames per second Mend a light infrared light Audio parameters Built-in audio input all point to the microphone Audio output built-in speakers The audio compression standard g. 711 u Audio compression bit rate of 64 KBPS Sound quality support for noise suppression and echo cancellation Access control parameters Built-in card reader built-in IC card reading head Door magnetic detection can detect door magnetic switch state Through the open button to open the door open button Normally open normally closed support setting normally open/closed Network parameters 10 m / 100 m Ethernet adaptive The network protocol TCP/IP, SNMP, SIP, RTSP Alarm parameters Alarm input tamper, door magnetic detection Device interface So a RJ45 10 m / 100 m adaptive Ethernet front-end ports 1 RS485 interface RS485 full-duplex IO input 4 IO output 1 The work environment Working temperature and 40 ~ 70(degree centigrade) Working humidity 10% to 90% The power consumption of 10 or less w DC12V power supply The other parameters Degree of protection IP65 Overall dimensions 182 mm * 100 mm * 32.5 mm

Additional information

Connection Method




Display Screen Size(inch)




Viewing Angle (°)




Samrt Home Interface


Model Number



Dark Bottom Box

Sensor Size(Inch)


Answering Mode


Brand Name







Front:aluminum alloy wire drawing; Back: engineering plastics;



Communication Interface


IP Camera Interface



Entrance Machine

Camera Sensor type


Zone Input


Access Control

Inductive Card
