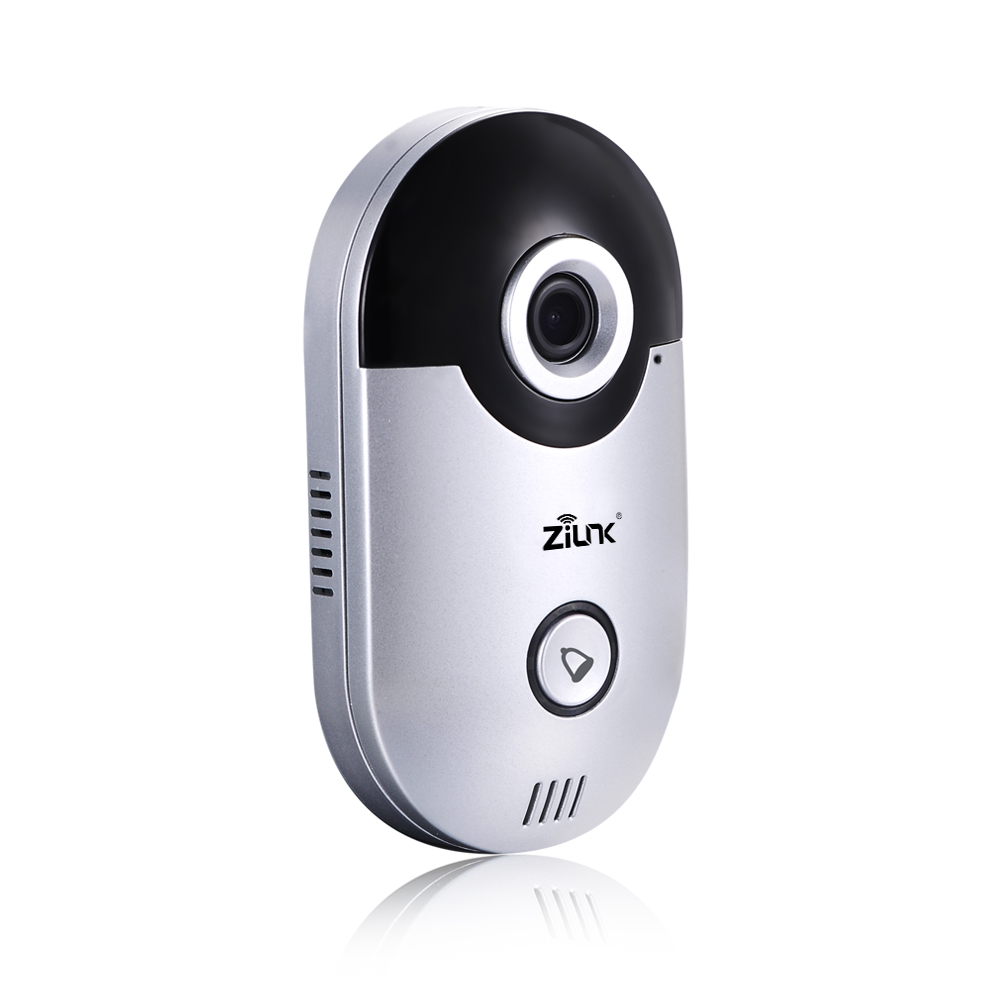

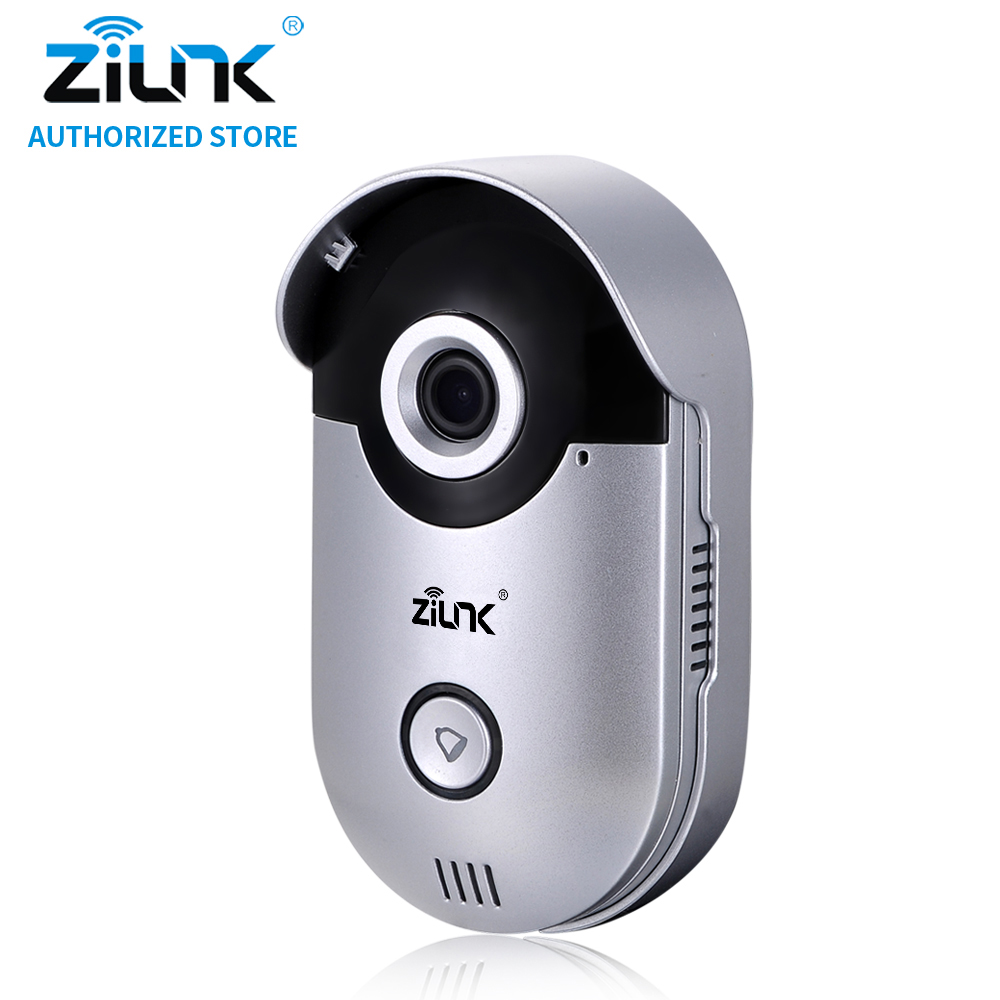

ZILNK Video Intercom HD 720P WIFI Doorbell Camera Home Security Night Vision Wireless Doorphone Without Indoor Bell Chime Silver

ZILNK Video Intercom HD 720P WIFI Doorbell Camera Home Security Night Vision Wireless Doorphone Without Indoor Bell Chime Silver

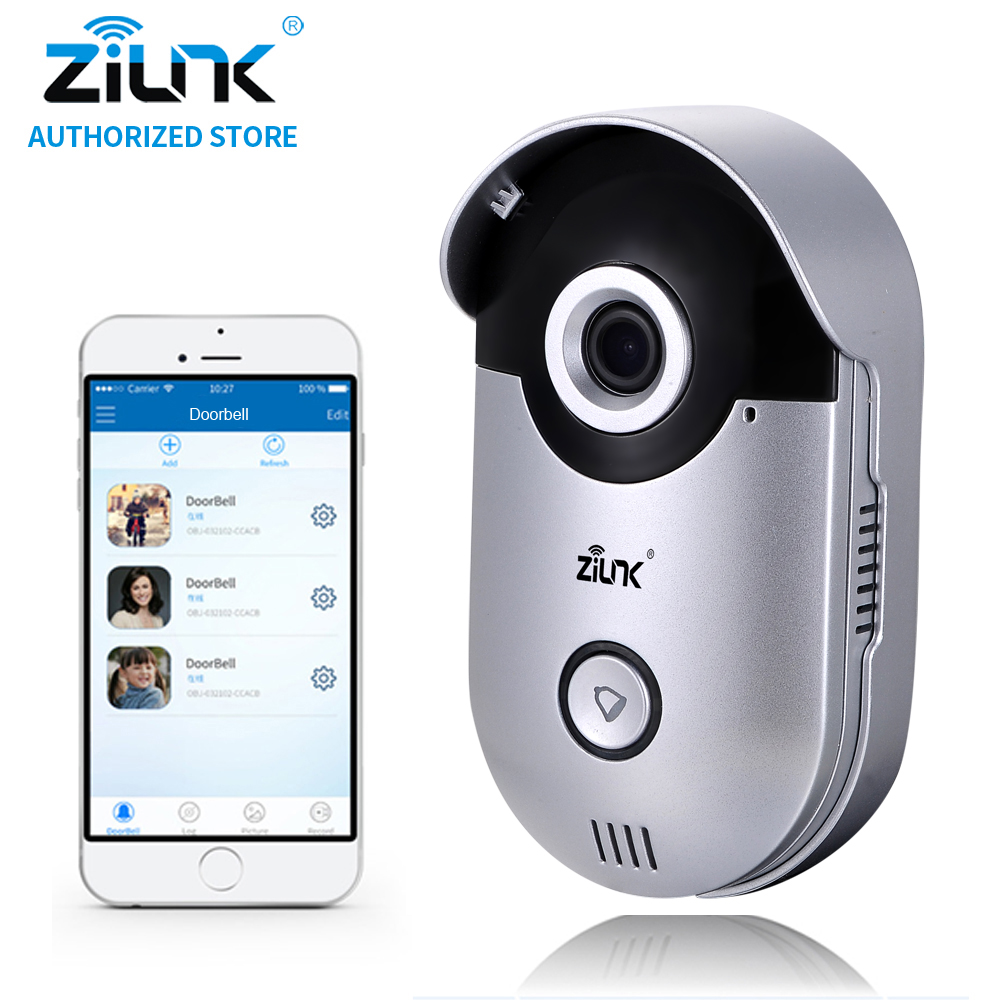

This Digital Video Doorbell is a Wi-Fi enabled video doorbell that allows you to see who’s at your door from your mobile device – whether you’re at home, at work or on the go.

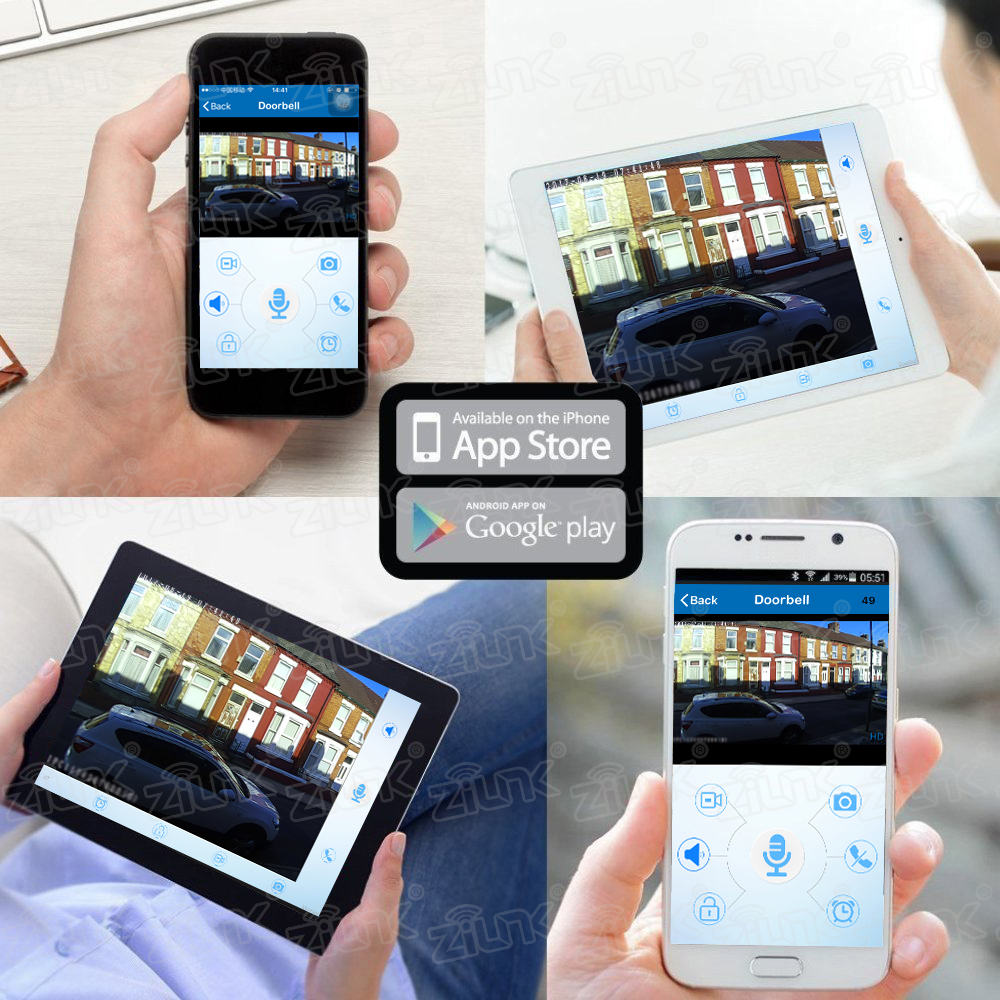

When a visitor presses the button, It sends you a a live video feed so you can see, hear and speak to the person at your door from iOS and Android mobile devices.

It helps you stay connected with your home, feel safer about answering the door on your terms. It is a video doorbell which allows you to see out of the camera at any time.

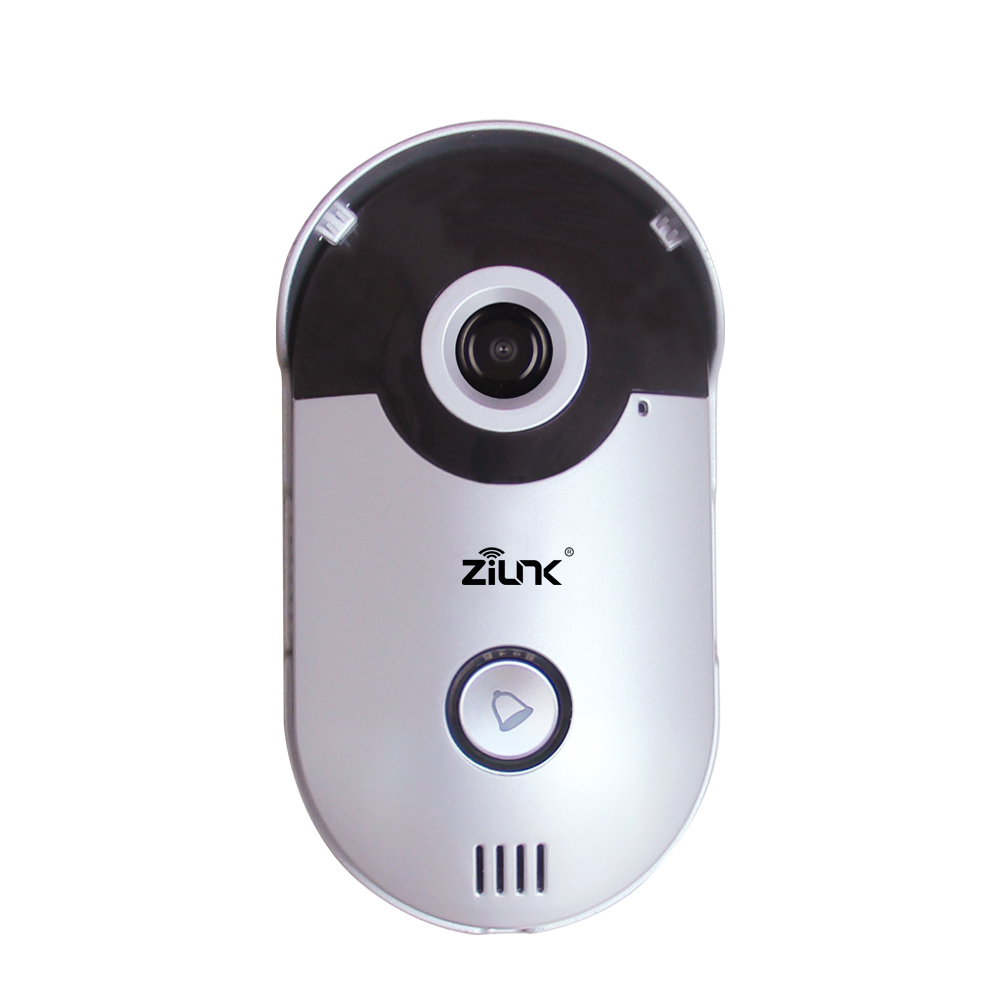

1. Camera

2. Built-in microphone

3. Call button with indicator light

4. Built-in speaker

5. IR LEDs (for night vision)

6. Relay connector (for electrical door lock)

7. Power connector

8. LAN connector

9. Reset (use pin to press and hold for approx. 10 seconds)

10. Screw hole for screw (A)

13. Screw holes for screw

14. Screw hole for screw

15. Screw holes for screw

16. Screw hole for screw)

IT IS STRONGLY SUGGESTED TO PERFORM A TEST BEFORE THE WIRELESS DOORBELL IS INSTALLED

Note: Download the “WiFi Doorbell HD” app from Google Play Store or App Store to your android or iOS device. Make sure your android or iOS device connected to the local Wi-Fi successfully.

Step 1: Power-on the wireless doorbell with an external 12V DC adaptor.

Step 2: Wait about 40 seconds until hear the voice: “Welcome to smart home”.

Step 3: Then the doorbell will be under the SmartLink Config Mode: The indicator light keeps flashing.

If the doorbell is not under the SmartLink Config Mode, please RESET it to the config mode.

How: Hold the RESET button at least 10 seconds, the device will be restarted and reset.

Where: Reset button on the backside of the doorbell which is under the “Reset” sticker.

Step 4: Run the App and click “Add Device”.

Step 5: Click “SmartLink”, check the SSID, input the correct password, click “Start”, and then the doorbell will start to connect to your local Wi-Fi.

Note:

1. Please choose SmartLink mode for setting the Wi-Fi at the first time.
2. Please make sure your android or iOS device connected to the local Wi-Fi successfully.
3. Networked Devices mode is only suitable for setting the Wi-Fi when the doorbell connected with a network cable(RJ45), or for adding a doorbell which has been connected to the Wi-Fi already.

Step 6: Once hear the voice prompt “Successful” means the Wi-Fi SmartLink setup successfully. “Refresh” and click the UDID of the doorbell to add it to the device list automatically, “Refresh” and it will be online.

If the wireless doorbell performs as described, please proceed to do the installation. If not, please double check and repeat the step 1 to step 6. Make sure the Wi-Fi password is correct.
