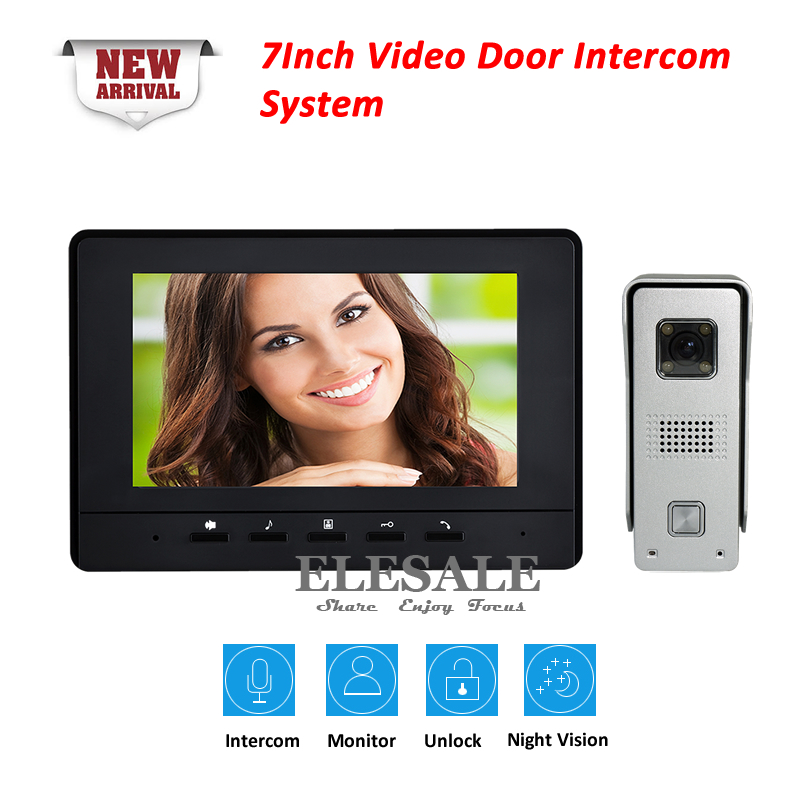

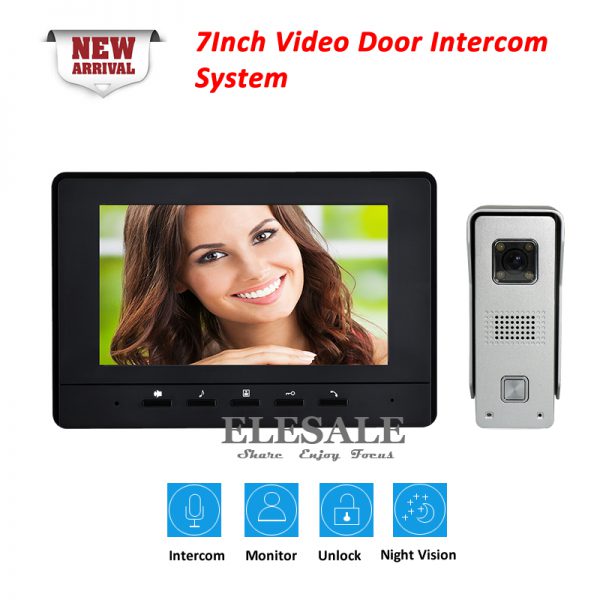

7″ Video Intercom Door Phone Doorbell System 700TVL Camera Aluminum Alloy IR Night Vision 1V1
If you need to DIY the set of doorbell system.You can buy those accessories.
Video door phone system enables you can see and talk to the people outside when the visitor presses the call button. The people inside the house does not need go to the door to check who is at the door, Anyway, this system will bring great convenience for you and your family members, especially for the children, the aged and the disabled. The outdoor unit has 700TVL camera and nice appearance, the indoor unit equips a 7inch LCD Color screen and black color make it looks more elegant. It can be widely used in villa house, office, factory and other place needs intercom, it is a good choice for home security and intercom.
This video door phone contains 1 outdoor camera and 1 indoor monitor, it support max 2 outdoor units and 4 monitors. If you need more cameras and monitor, please feel free to contact us.
- Brand new and excellent performance
- Outdoor camera equips aluminum alloy outer casing
- 7Inch color TFT LCD monitor with high resolution
- High definition 700TVL Camera and Aluminum Alloy outer casing
- 2-way intercom and handsfree intercom
- Bulit-in white light leds provide better night view, enables you see color image at night
- Indoor monitoring
- Brightness, chroma and volume adjustable
- 16-chord melody ringtone for choice
- Monitor support mute mode and avoid get disturbed at night
- Can work with electric lock and support lock-control function
2-Way Intercom
The monitor will ring to remind you that there is a visitor at the door, then you can press the answer button on monitor to talk to outside. Both outdoor unit and monitor has microphone and speaker, enables the visitor can also hear and talk to you.
Night Vision
The outdoor unit equips white light leds and IR sensors, the leds will turn on automatically at night. It enables you can see color imgae even at night. This feature is much better than other door phone use IR leds, which can only see black and white image. It is a wonderful design.
Indoor Unlock
The outdoor unit has e-lock port, you can connect an electric lock to the outdoor unit, then you can open the door via Unlock button on monitor. It is a wonderful design. (The lock at below photo is not included. If you need electric lock, please contact us for quotation)
Wiring For Reference
Note
1, We provide a testing cable in the package, you can buy additional cable to extend the cable from your local market.
2, Please do bench test before installation.
3, In case of the damage during transportation, we place a protective film on the screen. You can tear it down if you do not like it.
4, It supports max 100m. You should use suitable according to the distance.
0-10M: RVV4 *0.3mm2
10-30M: RVV4 *0.5mm2
30-50M: RVV4 *0.75mm2
50-100M:RVV4 *1mm2
| Camera | |
Camera Resolution | 700TVL |
| Night Vision Distance | More than 2 meters |
| Working Temperature | -20 degrees ~ +60 degrees |
| Intensity of Illumination | 0.01 lux |
| Lens | 2.3mm, 92degree |
| Dimension | 128x52x40mm(LxWxH) |
| Installation | Surface Mounted |
| Net Weight | 300g |
| Model | M3 |
| Monitor | |
| Screen | 7″ LCD Digital 16:9 Display |
| Effective Pixels | 800 x 480 |
| Delay Calling Time | 120s+-10% |
| Delay monitoring time | 40s+-10% |
| Adapter Input | AC100 – 240V 50-60HZ |
| Adapter Output | DC15V 2A |
| Unit Consumption | Less than 6W, standby less than 0.5W |
| Working Temperature | -20 degree ~ +60degree |
| Installation | Wall mounted |
| Dimension | 240mm(L) x 150mm(W) x 23mm(H) |
| Weight | 500G |
| Model | V70H |
Shipping
1, We will send the items within 3 days once your payment is completed.
2, We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries and other factors.
3. We use your Aliexpress address as shipping address, please confirm the address before you pay.
Payment
1, We accept Aliexpress Escrow payment including Visa Credit card, MasterCard Credit Card, Western Union and other payment options. You can choose to suit your payment..
2, Payment must be received within 3 days after placed the order.
Service
30 Days Money Back Guarantee:
1, If you are not satisfied with the item purchased from us, please inform us(via email, message) within 30 days of receipt of goods. We will guide you to return and refund the item. Please note that the postages/custom fees (if any) spended in such an order are on the customer’s cost.
2, All returned items MUST BE in the original packing with all components and accessories included and you MUST PROVIDE us with shipping tracking number and reason for the return.
3, We will bear all the shipping cost if the product(s) is(are) damaged during shipment.
4, We may not accept your return without informing us in advance.
5, Customs fee, handling charge, postage and insurance are not refunded.
Supplier Warranty:
We offer one year warranty manufacture’s limited warranty for defective items(excluding items damaged from misuse, abuse, neglect or accident after receipt)
Feedback
1, Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.
2, We kindly request you to please do not leave negative feedback or open any case before contact us, if you have not received the package for some time or you are not satisfied with our item after receive it. We will try our best to provide a best solution.
3, We expect high standards of excellence and strive for 100% customer satisfaction.
