HSV891W 5.8GHZ HDMI Wireless Extender 1080P With Audio Extractor Support 3KM Transmission Outdoor Supper wireless hdmi Extender

298.41$ 283.49$
Clear

SKU: 32776246678
Category:

Description

HSV891W 5.8GHZ HDMI Wireless Extender 1080P With Audio Extractor Support 3KM Transmission Outdoor Supper wireless hdmi Extender

Introduction

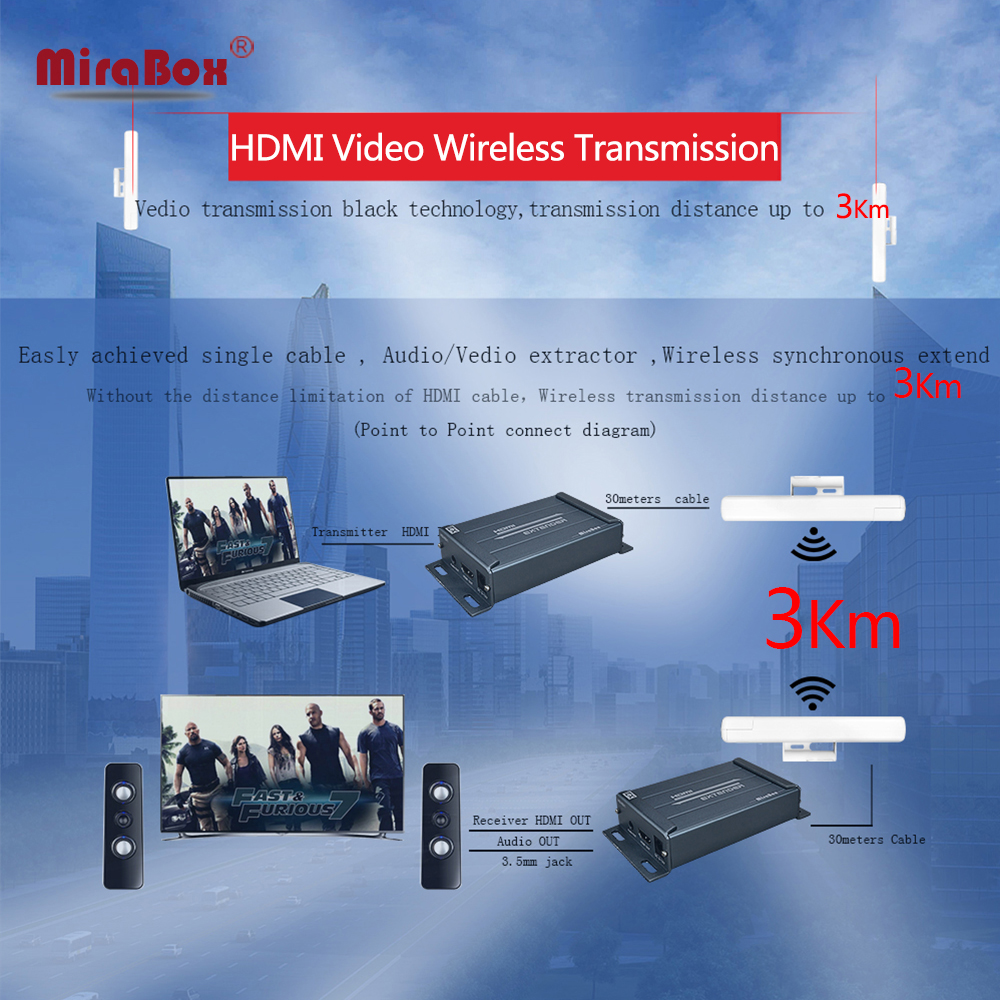

The HSV891W Wireless HDMI Extender set combines HSV891 and wireless unit to provide point to point wireless long range HDMI transmit function. The maxim outdoor transmit range could reach 3000meters ( based on the wireless environment, such as background noise, interference, etc.)

Features

1. Transmit HDMI signal from source device to display device up to 150~300meters(max) wirelessly indoor or 3000meters(max) outdoor

2. Support indoor and outdoor long distance video transmission.

3. Flexible design for multi usage. Customer could use HSV891 for 150meter wired transmission or combine wireless unit for long range wireless transmission.

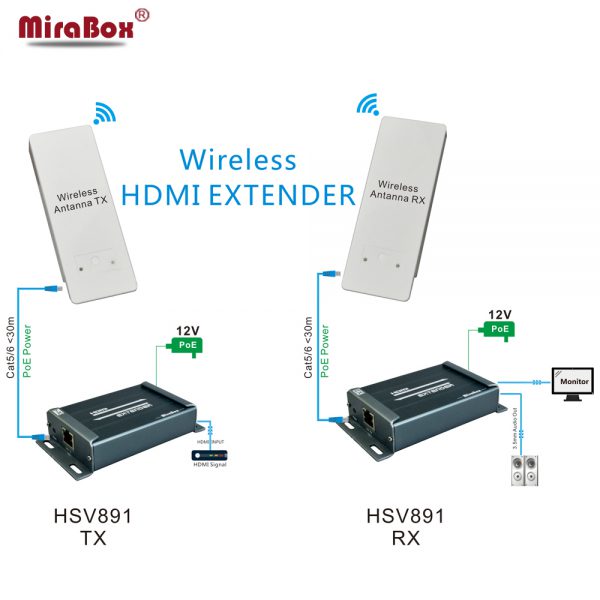

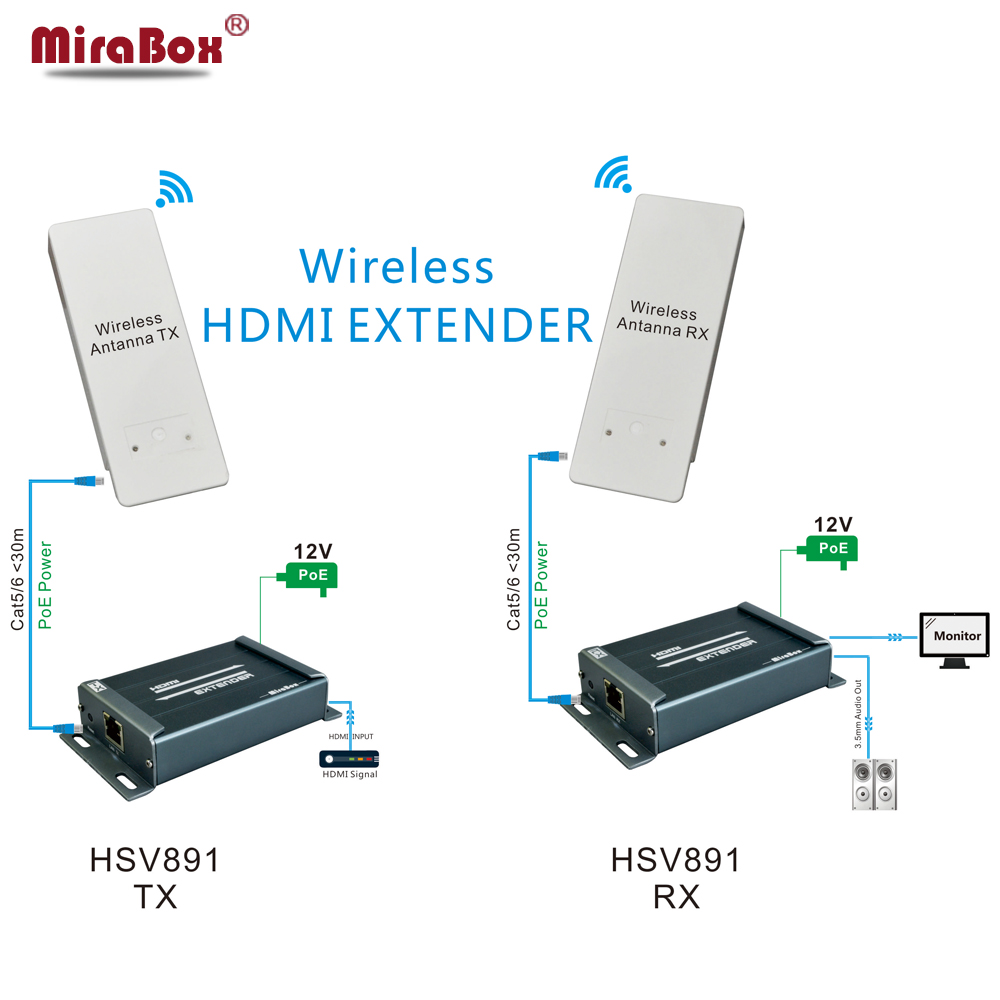

4. Easy to install. No need for external power supply, just need one cat5 cable between HSV891 and the wireless unit. Cable length could reach 30meters.

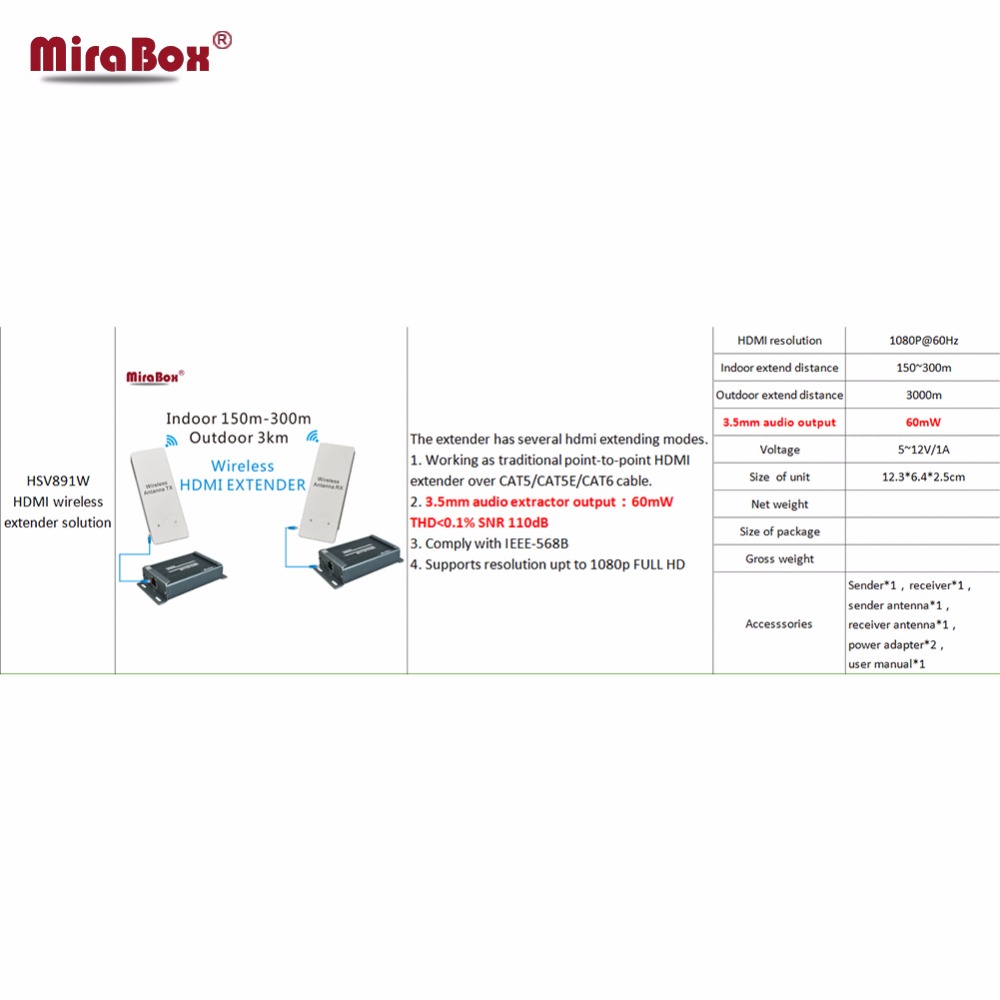

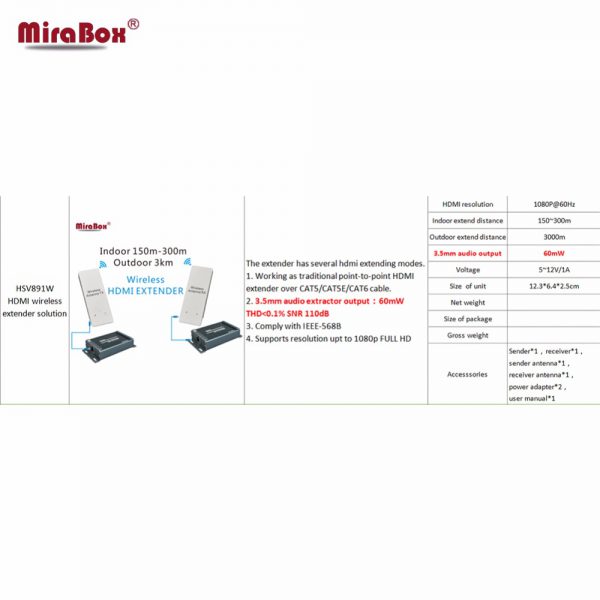

Specification

  • HDMI signal: Full compatible with HDCP
  • Transport protocol: M-JPEG
  • Support resolution: [email protected], [email protected], [email protected], [email protected], [email protected]/60Hz, [email protected]/60Hz, [email protected]/60H
  • Transmit distance: 150m~300m indoor(max) or 3000m outdoor(max)
  • Please noted that the maxim distance could reach in an ideal environment. In field applications, the actual range affected by background noise, in band interference, etc.
  • Working temperature: 0°C-60°C
  • Power supply: POE by HSV891
  • Enclosure material: Aluminum
  • Product dimension: 195.4×137.5×30.8mm(L*W*H)*2pcs
  • Adapter voltage: 100-240V
  • Weight: 1326g
  • Color: Black
  • 3.5mm audio extractor output: 60mWTHD<0.1% SNR 110dB3.
  • Comply with IEEE-568B
  • Supports resolution upt to 1080p FULLHD

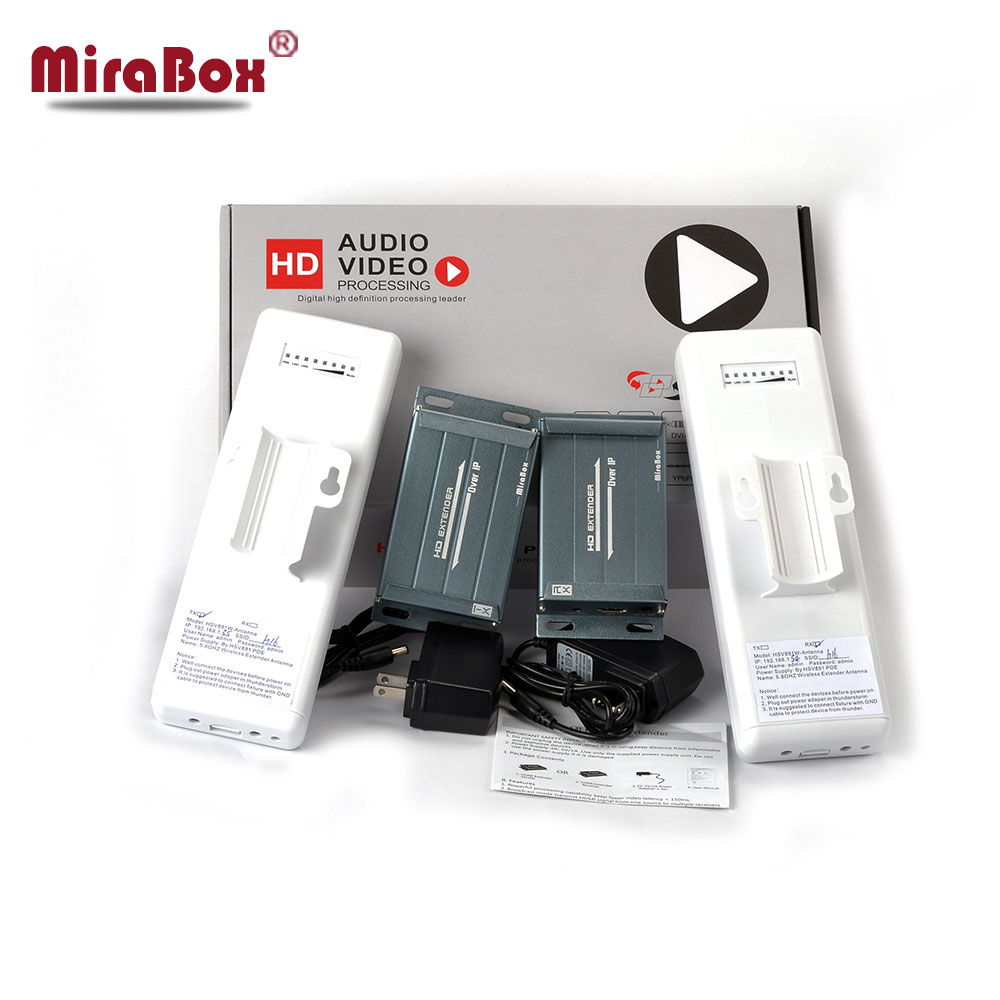

Package Content

  • 1 x HDMI extender TX sender+TX Antenna
  • 1 x HDMI extender RX receiver+RX Antenna
  • 2 x DC5V 1A power adapter
  • 1 x User manual

Additional information

Application

Projector,DVD Player,Multimedia,Television,Camera,TV BOX,Monitor,Computer

HDMI resolution

[email protected]

Audio Output Format

L/R Stereo analog audio

Audio Output Port

3.5mm jacket

Wireless Frequency

5.8GHz

Size of unit

12.3*6.4*2.5cm

Voltage

5~12V/1A

3.5mm audio output

60mW

Outdoor extend distance

3000m

Indoor extend distance

150~300m

Product name

wireless hdmi extender 5.8GHZ

Connector B

HDMI

Outer Diameter

wireless hdmi extender

Version

HDMI 1.4

Type

HDMI Cables

Bundle

Bundle 5

Connector A

HDMI

Gender

Female-Female

Package

Yes

Brand Name

MiraBox

Shielding

Non-Shielded

Model Number

HSV891W HDMI Extender

Packing

Polybag
