5.8GHZ Wireless HDMI Extender With IR Remote Support 3KM Outdoor Transmission 1080P Wireless HDMI Transmitter And Receiver

309.46$ 293.99$
Clear

SKU: 32787485674
Category:

Description

5.8GHZ Wireless HDMI Extender With IR Remote Support 3KM Outdoor Transmission 1080P Wireless HDMI Transmitter And Receiver

Introduction

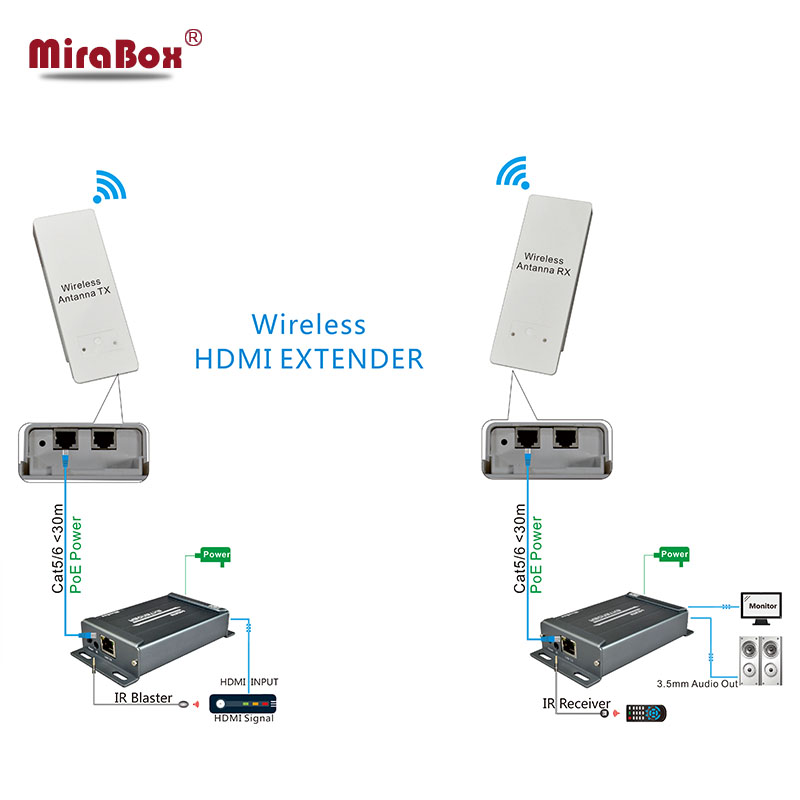

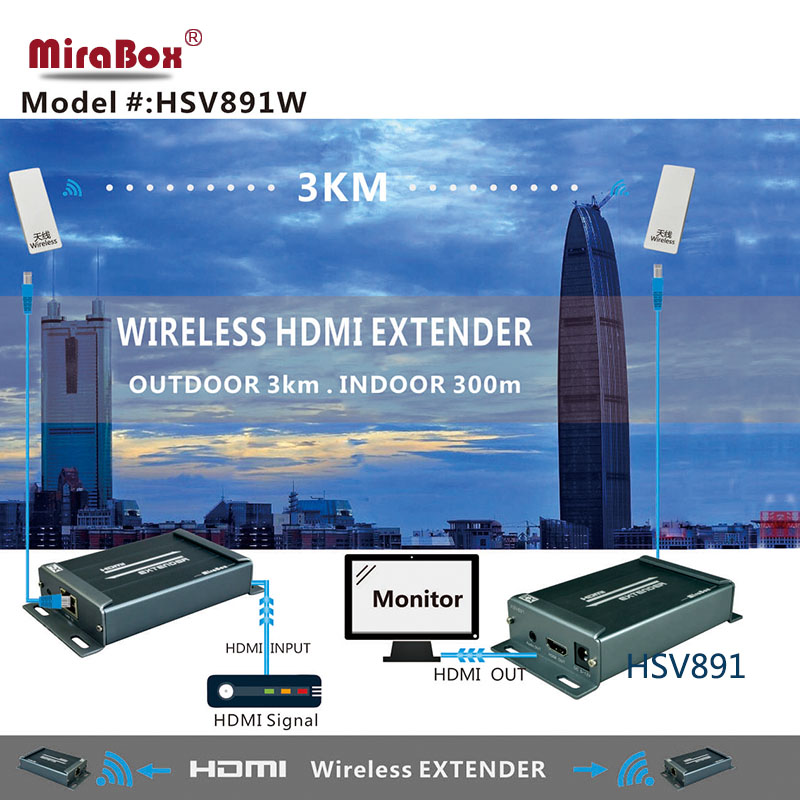

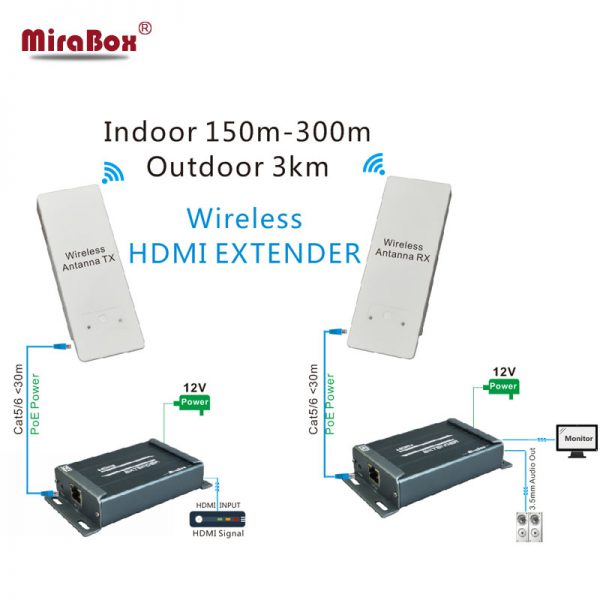

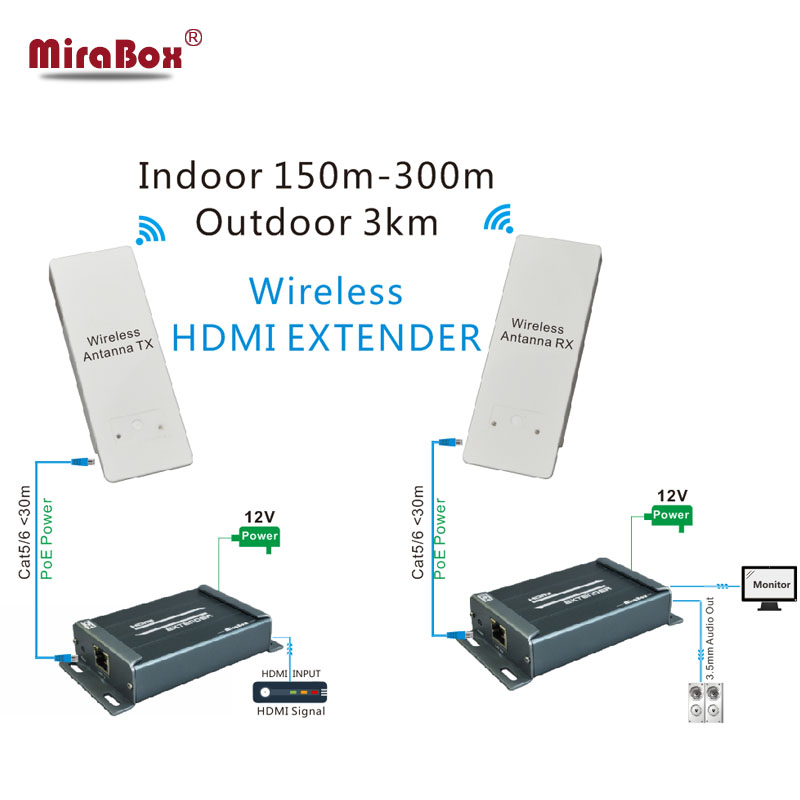

The HSV891W-IR Wireless HDMI Extender IR set combines HSV891-IR and wireless unit to provide point to point wireless long range HDMI transmit function. The maxim outdoor transmit range could reach 3000meters ( based on the wireless environment, such as background noise, interference, etc.)

Features

1. Transmit HDMI signal from source device to display device up to 150~300meters(line of sight max) wirelessly indoor or 3000meters(line of sight max) outdoor

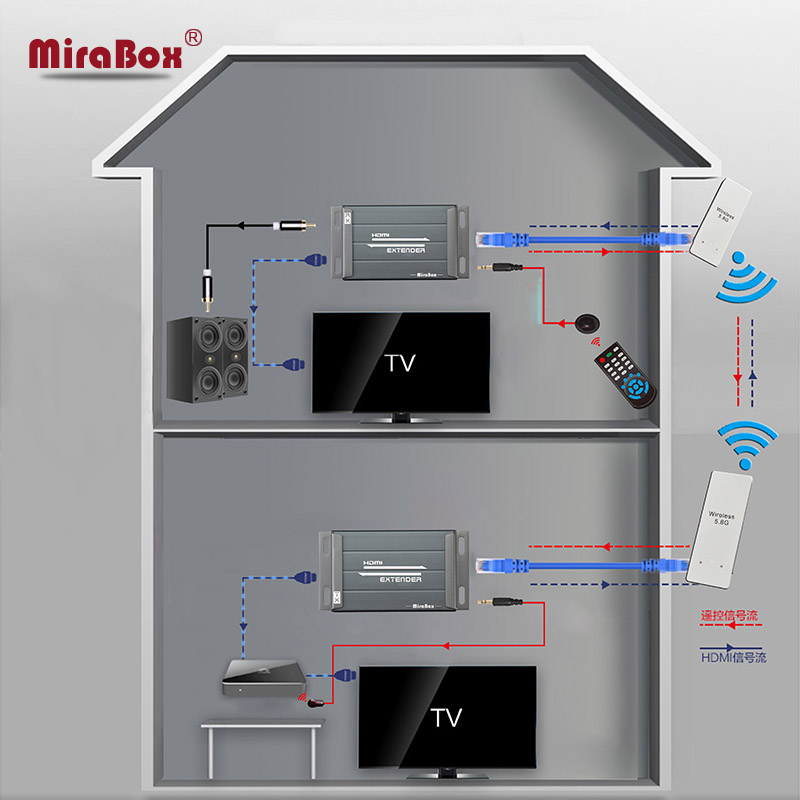

2. Support indoor and outdoor long distance video transmission.

3. Flexible design for multi usage. Customer could use HSV891-IR for 150meter wired transmission or combine wireless unit for long range wireless transmission.

4. Easy to install. No need for external power supply, just need one cat5 cable between HSV891 and the wireless unit. Cable length could reach 30meters.

Specification

  • HDMI signal: Full compatible with HDCP
  • Transport protocol: M-JPEG
  • Support resolution: [email protected], [email protected], [email protected], [email protected], [email protected]/60Hz, [email protected]/60Hz, [email protected]/60H
  • Transmit distance: 150m~300m indoor(line of sight max) or 3000m outdoor(line of sight max)
  • Please noted that the maxim distance could reach in an ideal environment. In field applications, the actual range affected by background noise, in band interference, etc.
  • Working temperature: 0°C-60°C
  • Power supply: POE by HSV891-I
  • Enclosure material: Aluminum
  • Product dimension: 195.4×137.5×30.8mm(L*W*H)*2pcs
  • Adapter voltage: 100-240V
  • Weight: 1326g
  • Color: Black
  • 3.5mm audio extractor output: 60mWTHD<0.1% SNR 110dB3.
  • Comply with IEEE-568B
  • Supports resolution upt to 1080p FULLHD

Package Content

  • 1 x HDMI extender IR TX sender and TX Antenna
  • 1 x HDMI extender IR RX receiver and RX Antenna
  • 2 x DC12V 1A power adapter
  • 1 x User manual

Additional information

Model Number

HSV891W-IR HDMI Wireless Extender IR

HDMI resolution

[email protected]

Audio Output Format

L/R Stereo analog audio

Audio Output Port

3.5mm jacket

Wireless Frequency

5.8GHz

Size of unit

12.3*6.4*2.5cm

Voltage

5~12V/1A

3.5mm audio output

60mW

Outdoor extend distance

3000m(max)

Indoor extend distance

150~300m(max)

Product name

5.8GHZ HDMI Wireless Extender IR

Application

Projector,DVD Player,Multimedia,Television,Camera,TV BOX,Monitor,Computer

Version

HDMI 1.4

Type

HDMI Cables

Gender

Female-Female

Package

Yes

Connector A

Jack,HDMI

Brand Name

MiraBox

Shielding

Non-Shielded

Packing

Polybag

Bundle

Bundle 2

Connector B

HDMI

Outer Diameter

HDMI Wireless Extender IR
