Hikvison Original English PT wireless camera DS-2CD2F42FWD-IWS 4MP WDR Mini PT IP Camera POE Audio/Alarm IO WIFI
Read Before Purchase

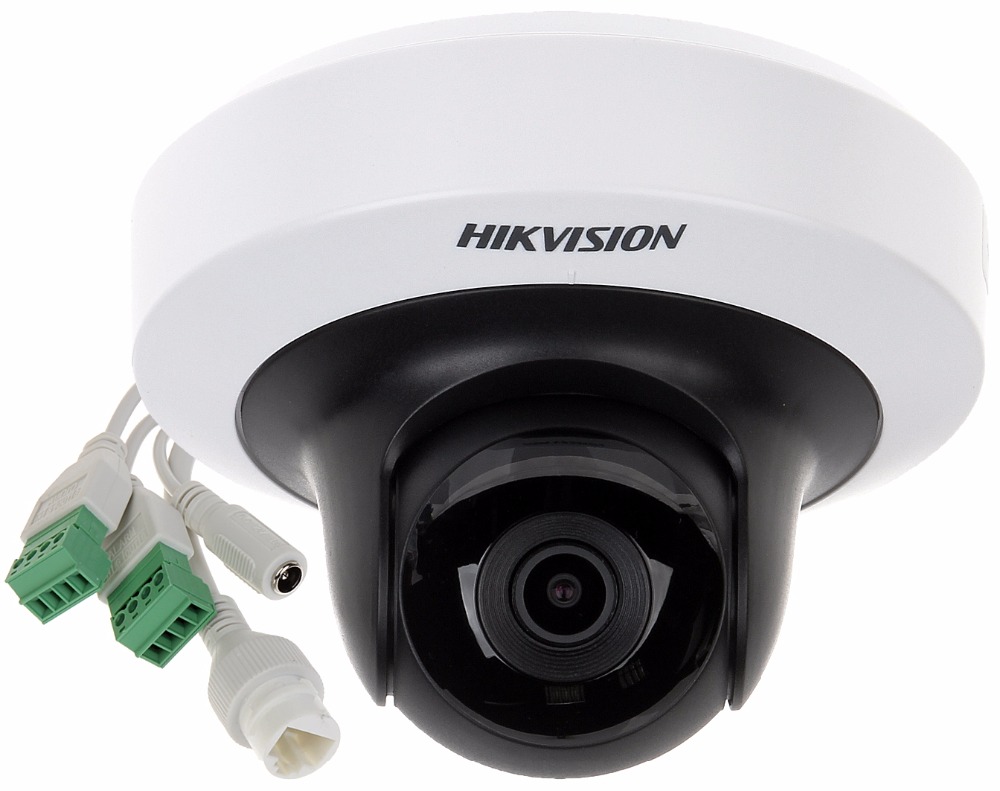

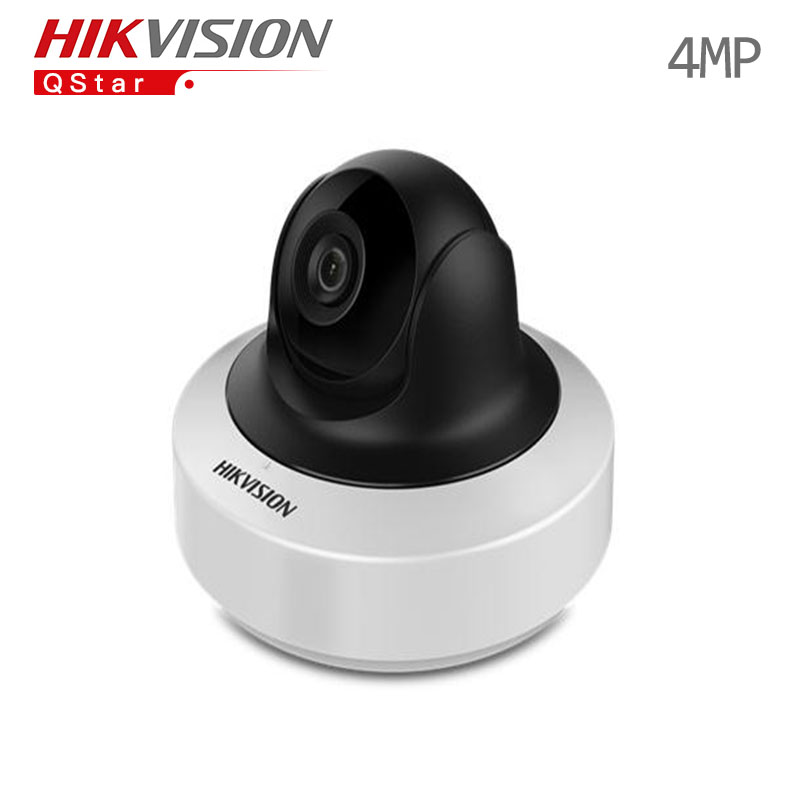

- This item is original Hikvision 4 Megapixel Mini Dome Camera DS-2CD2F42FWD-IWS , English Firmware ( Support upgrade, Russia etc.. many language contained)
- Fix lens 2.8mm , 4mm
- Camera comes with Hikvision logo, and Package box comes with White and Red Color retail box (showed above )
- Huge In stock! The shipping arrangement could be finished within 24 hours once the order is placed
Key Feature
DS-2CD2F42FWD-IWS
- 4MP WDR Mini PT Network Camera
l Up to 4 megapixel (2688×1520) high resolution
l Full HD1080p video
l Dual video streams
l 120dB Wide Dynamic Range
l Pan & tilt rotation
l Support on-board storage, up to 128GB
l DC12V & PoE
l Support H.264+
l Up to 10m IR range
l -S: Audio/Alarm IO
l -W: Built-in Wi-Fi
Specifications
Camera
Image Sensor: | 1/3″ Progressive Scan CMOS
Min. Illumination: | 0.01Lux @ F1.2, AGC ON , 0.028Lux @ F2.0, AGC ON, 0 Lux with IR
Shutter time: | 1/3 s to 1/10,000 s
Lens: | 2.8mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm)
Lens Mount: | M12
Adjustment Range: | Pan: -90° ~ 90°, Tilt: 0° ~ 75°
Day& Night: | IR cut filter with auto switch
Wide Dynamic Range: | 120 dB
Digital noise reduction: | 3D DNR
Compression Standard
Video Compression: | H.264/MJPEG/H.264+
H.264 code profile: | Main Profile
Video bit rate: | 32Kbps~16Mbps
Dual Stream: | Yes
Max. Image Resolution: | 2688 × 1520
Frame Rate: | 50Hz: Main stream: 20fps (2688 x 1520), 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
60Hz: Main stream: 20fps (2688 x 1520), 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
50Hz: Sub stream:25fps(352×288),25fps(640×360) 60Hz: Sub stream: 30fps(352×240),30fps(640×360)
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC: | Yes, zone configurable
ROI: | Support
Network
Network Storage: | NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: | Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security: | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering, Anonymous access
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface

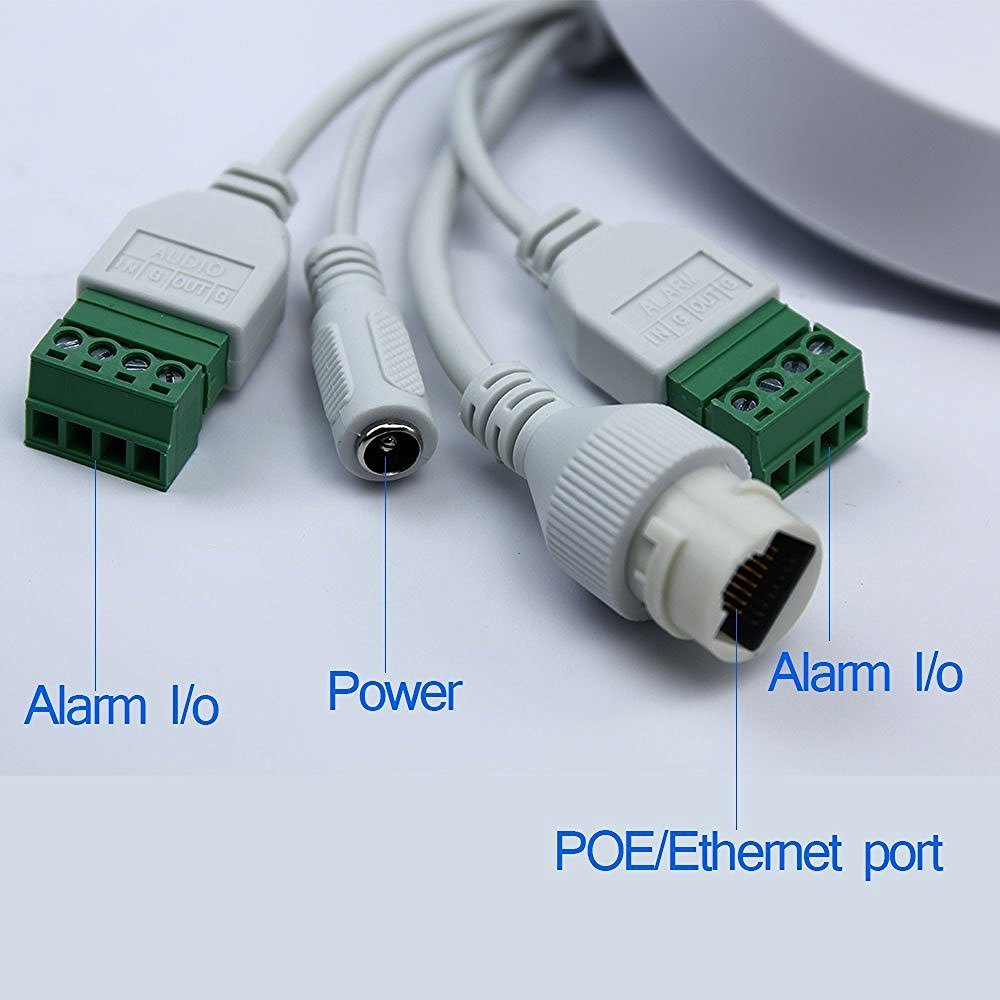

Audio: | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface
Alarm: | 1x alarm I/O *only for –S models

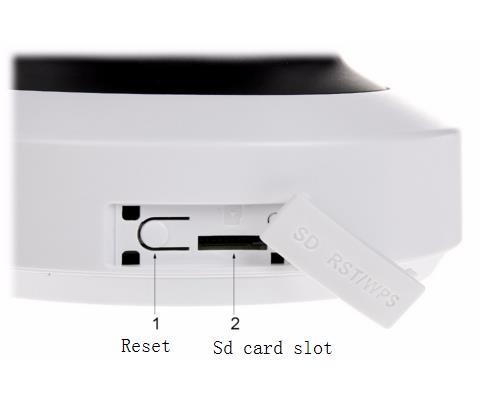

On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: | Yes
Wi-Fi Specification (-W)
Wireless Standards: | IEEE802.11b, 802.11g, 802.11n
Frequency Range: | 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: | 20/40MHz Support
Modulation Mode: | 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Power: | 11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm
Receive Sensitivity: | 11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)
Transmission Rate: | 11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps
Wireless Range: | 50m(depend on environment)
Protocols: | 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
General
Operating Conditions: | -10°C ~ 40°C (14°F ~ 104°F), Humidity 95% or less (non-condensing)
Power Supply: | DC12V ± 25%, PoE (802.3af Class 3)
Power Consumption: | Max. 5W (Max. 7 W with IR cut filter on, max. 9W with pan & tilt rotation)
IR Range: | 10 meters
Dimensions: | Φ119.93 × 87.08mm
Weight: | 500g (1.1lbs)
“-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support
the 802.1X protocol.
Package included:
* 1 x 4MP WDR Mini Dome Network Camera
* 1 x Software CD with User Manual
* 1 x Installation screws
* 1 x Retail Packaging Box
(Notice:Power adapter supply not included)
