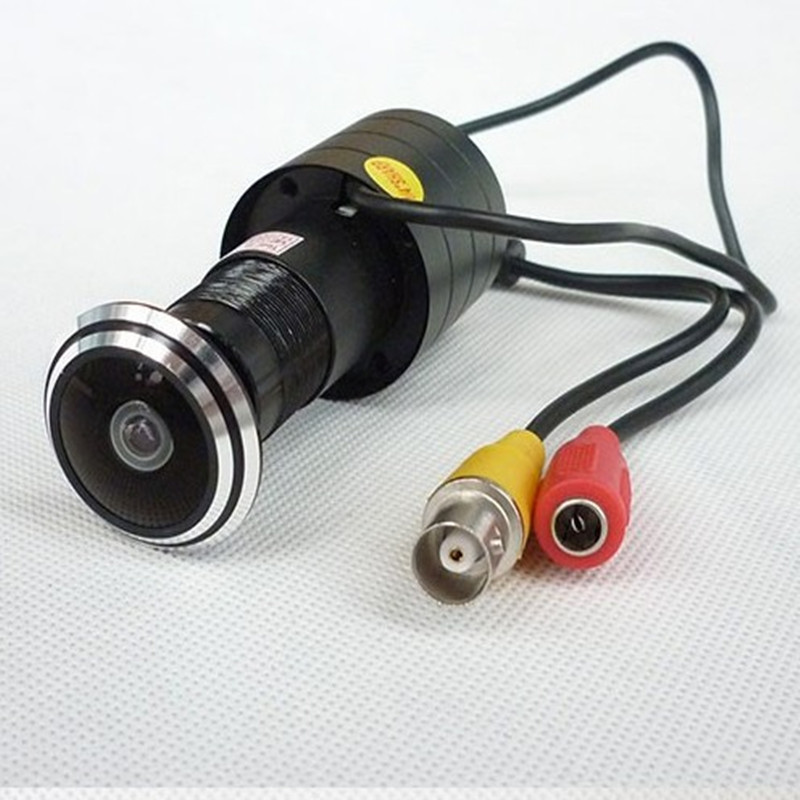

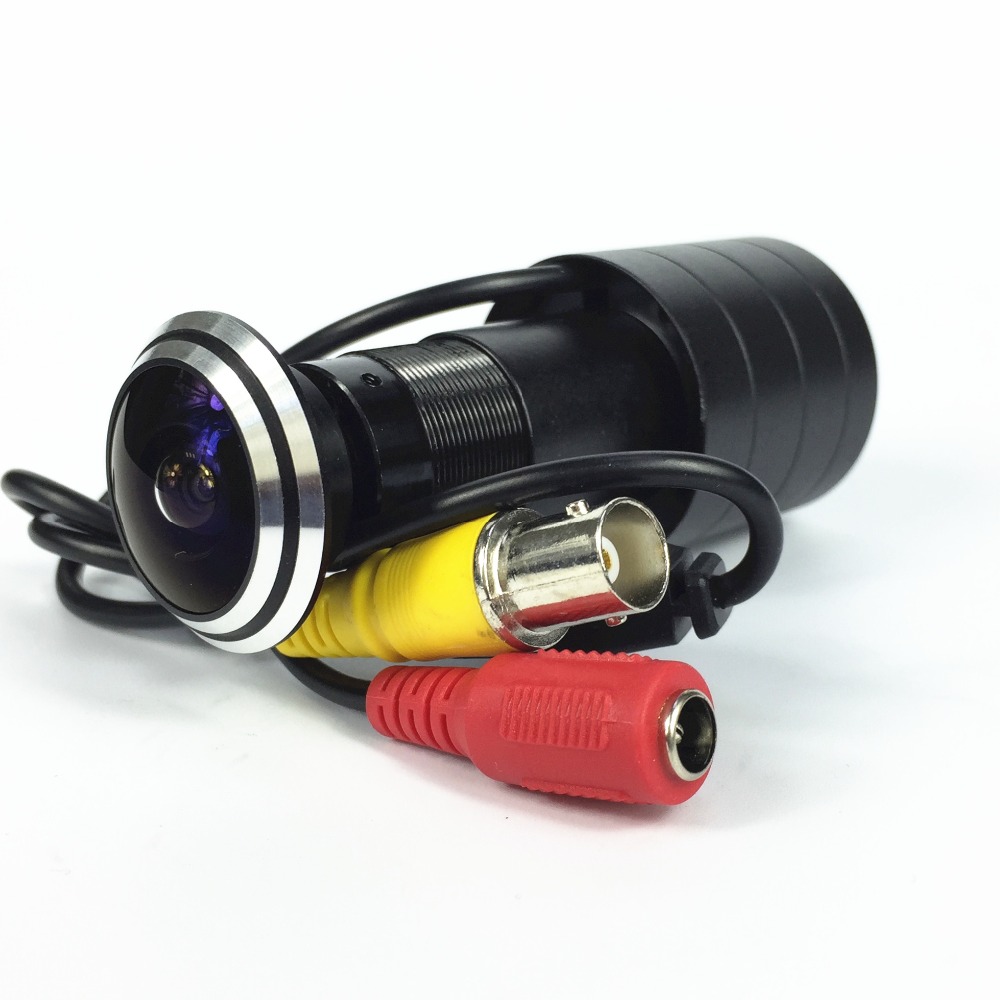

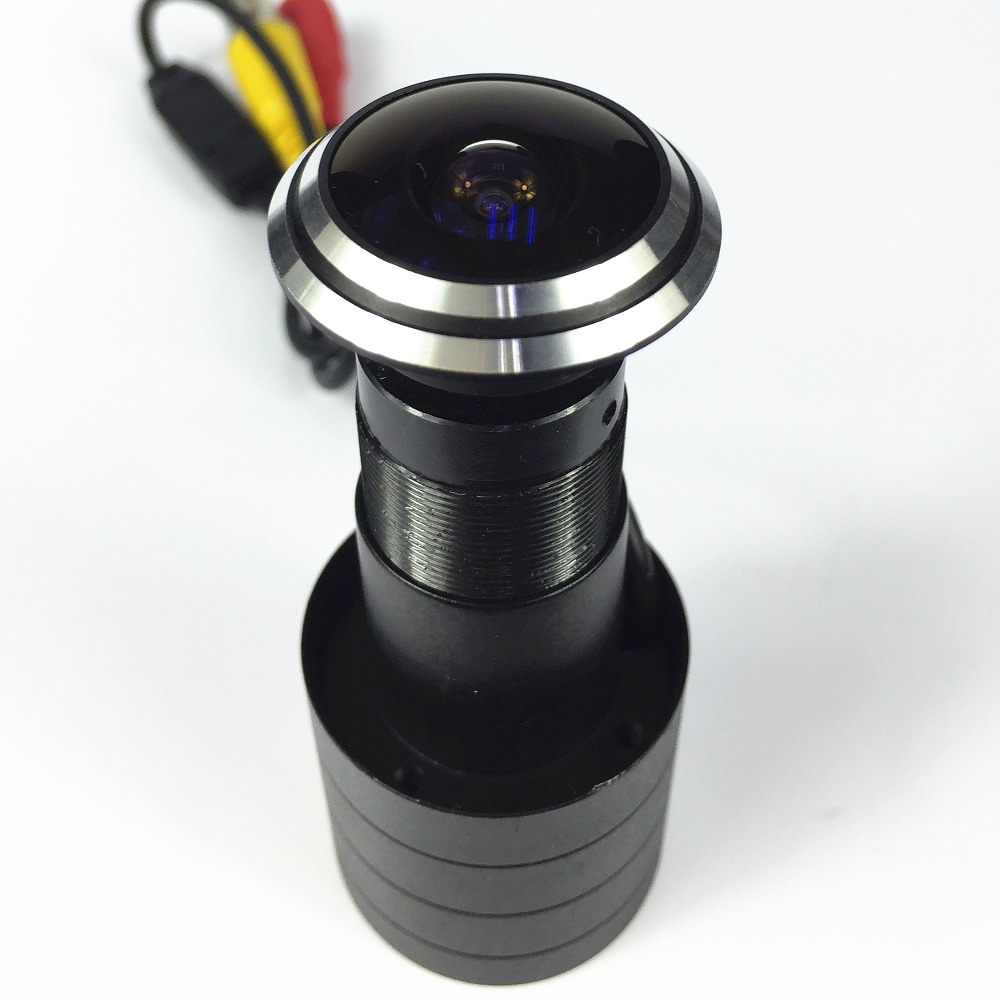

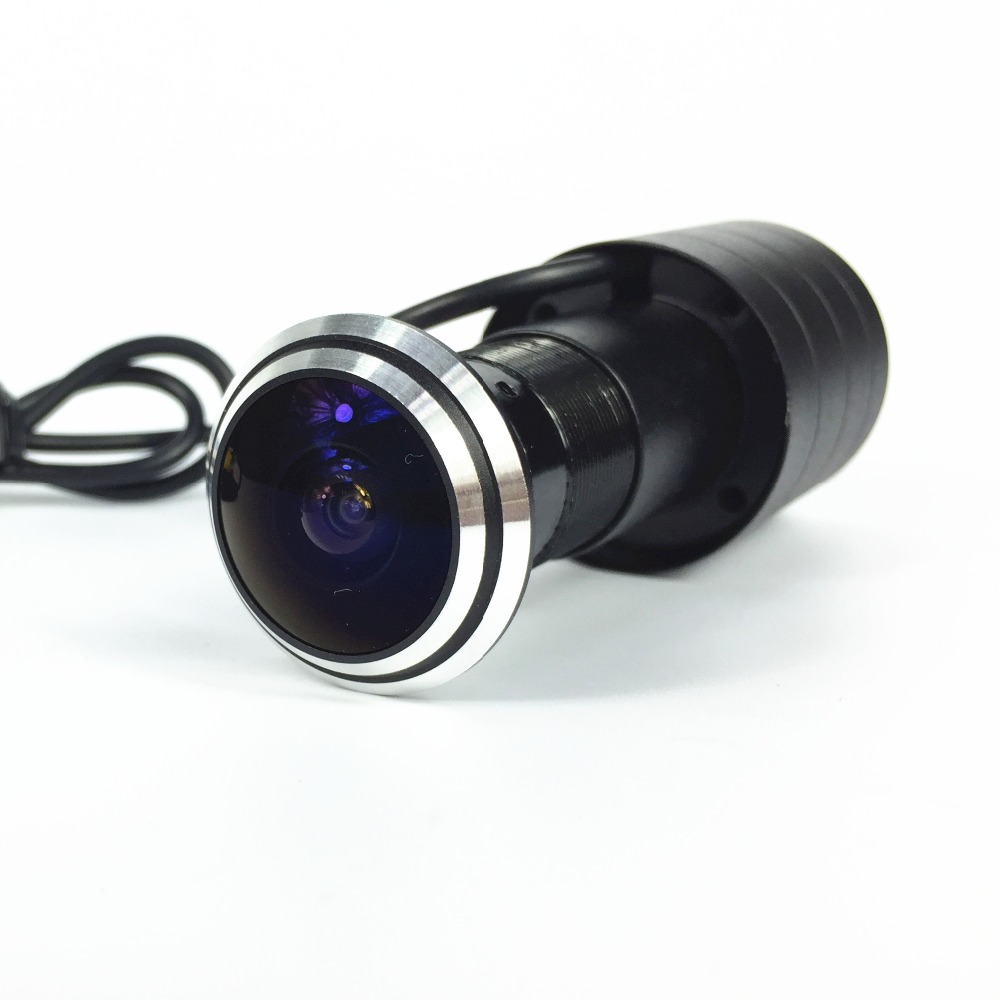

Hot Sale 1/3″ CCD 800TVL Color Home Door Hole Eye Peephole Pinhole Viewer Security mini CCTV Camera for 25-30mm Thickness Door

Sony CCD camera cat

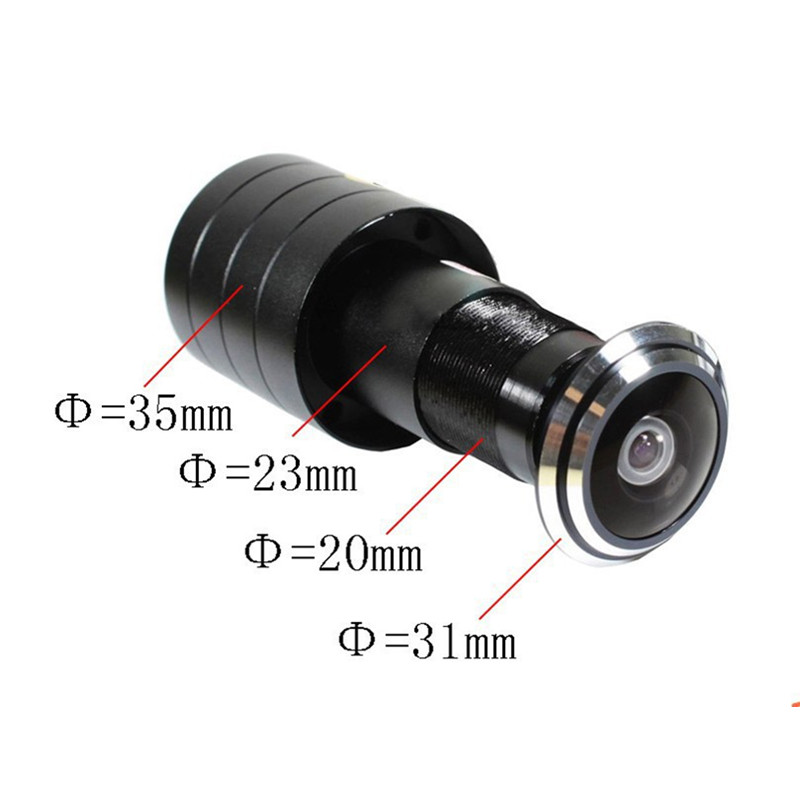

Product Size:

Lens diameter 32MM

Intermediate thin section 25MM

The total length 30MM – 85MM adjustable

At the bottom of the thickest part of the 36MM

Simple installation instructions:

Fancy chart, Accessories sequentially spin down, and then the former cat burglar doors down, expand the appropriate space (big generous about 25MM) and the product penetration from the outside, and finally the other accessories can be fitted

Image Sensor 1/3 Inch SONY CCD image sensor

Horizontal resolution 800 TV Lines,

No amount of infrared light (without IR)

Scanning frequency PAL: 15.625 kHz / 50 KHz

Scanning System 2: 1lnterlace, 2: 1 interlace

Minimum illumination 0.5 Lux

Internal Synchronization Internal / DC12V

Signal / noise ratio greater than 48dB Better than

Auto Auto Electronic Shutter 1/50 ~ 1 / 100,000 sec.

Video Output 1 Vp-p, 75 composite signal

Power supply 12V DC ( 10%)

1.7mm lens configuration

Power Consumption 800mA / DC12V

Standard accessories:

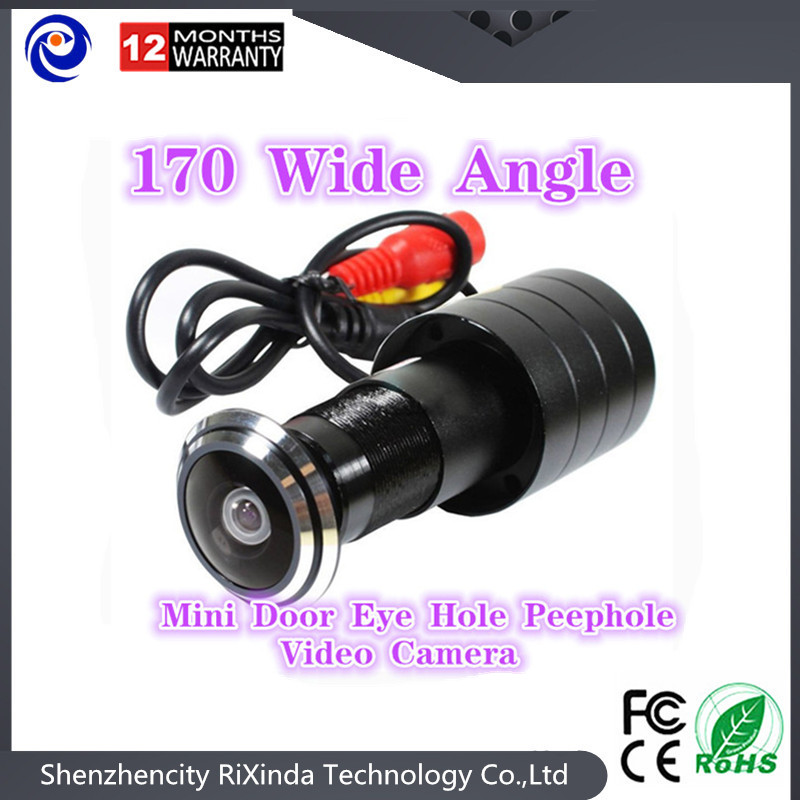

1. Camera (wide angle 170 degrees) a

Tips: This camera without power and other accessories.

Trouble and Solution:

1. No Picture after providing power
May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude.
Please check all the conecting cable and monitors whether be connected correctly or not.

2. The picture level direction have flowing interference ripples
May be caused by the power supply AC ripples, it need filter the wave of the power supply.
Check the monitor and peripheral equipments used.

3. The picture background color changes continuously
The fluorescent lamp\’s electromagnetic field cause color roll. This is proper phenomenon of the cameras.
Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can
improve it.
Use Power supply external sync. Camera can solve it.

4.The picture smear too mass
The power supply\’s voltage unstable
Connecting cables not connect correctly or have high impedance.

Trouble and Solution:
PS: PAL format is for Euro Courty, NTSC
format is for USA, Canada,
if you don\’t know which one you need, please feel free to contact us.

1. No Picture after providing power
May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude.
Please check all the conecting cable and monitors whether be connected correctly or not.

2. The picture level direction have flowing interference ripples
May be caused by the power supply AC ripples, it need filter the wave of the power supply.
Check the monitor and peripheral equipments used.

3. The picture background color changes continuously
The fluorescent lamp\’s electromagnetic field cause color roll. This is proper phenomenon of the cameras.
Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can
improve it.
Use Power supply external sync. Camera can solve it.

4.The picture smear too mass
The power supply\’s voltage unstable
Connecting cables not connect correctly or have high impedance.

Additional information

Power Consumption(W)

24W

Minimum Illumination(Lux)

0.1

Viewing Angle (Degree)

85

Ships From

china

color

Black Default/ White Optional

Audio Output

Other

Lens (mm)

1.8

Dimensions (L x W x D)(mm)

15*5*5

Sensor Brand

SONY

Style

Mini Camera

Power Supply(V)

12V

Connectivity

Closed System/CCTV Wired

Brand Name

shrxy

Special Features

Waterproof / Weatherproof

Alarm Action

Email Photo

High Definition

960H

Video Compression Format

H.264

is_customized

Yes

Type

Analog Camera

Supported Operating Systems

Windows 7,Windows Vista,Windows 98,Mac os,Windows 8,Windows XP

Supported Mobile Systems

iPhone OS,Android

Sensor

CCD

Technology

mini

Model Number

door eye camera
