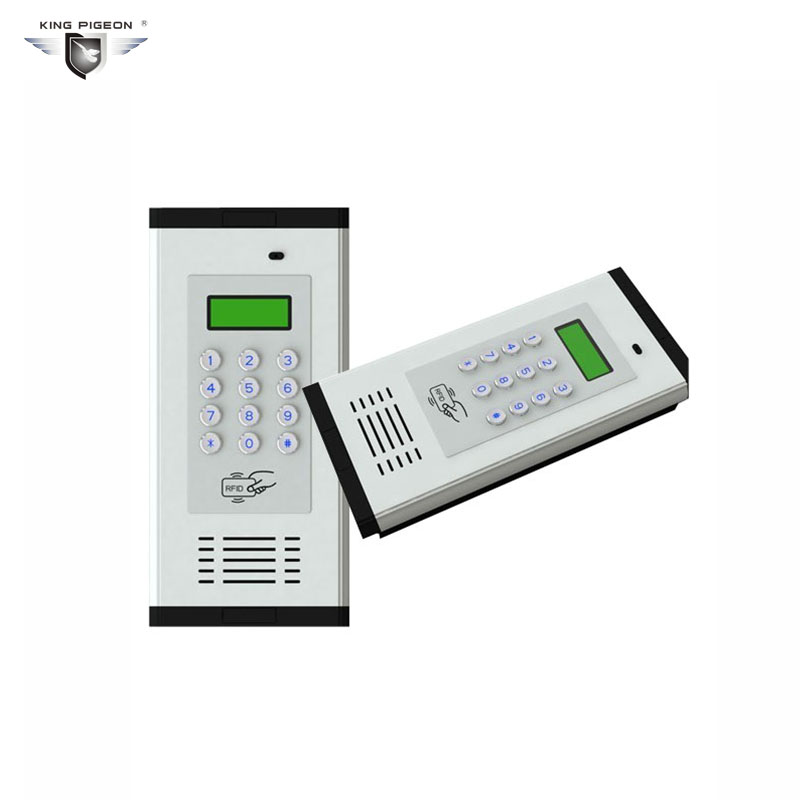

GSM Access Control Door Alarm System 850/900/1800/1900MHz LCD Screen 1000 Authorized Number Door Opener RFID Card SMS Text K6

$160.14$202.55
Clear

SKU: 32784405949
Category:

Description

GSM Access Control Door Alarm System 850/900/1800/1900MHz LCD Screen 1000 Authorized Number Door Opener RFID Card SMS Text K6

The GSM Access Control is a new type advanced Access Control system, it supports dial to open the door for user or visitors. By this

new type access control system, no need to install indoor intercom any more to save wiring and indoor intercom cost.

The GSM Access Control inbuilt an industrial quad band 850/900/1800/1900Mhz GSM Module (3G Module is optional), supports up

to 1000 authorized phone numbers for maximum 200 room numbers, it is special for apartment access control.

For authorized users, the GSM Access Control will reject the call from authorized number then carries out the open door action on the

first ‘ring’, no call charges. Also, the user can use RFID card to open the door.

For visitors, dial the room number on the GSM Access Control keypad, the GSM Access Control will dial the room owner’s phone automatically,

the owner can open the door remotely or reject to open the door.

For administers, can manage the room owner phone numbers remotely by SMS or by keypad.

Features

1. Inbuilt Quad-band 850/900/1800/1900Mhz GSM module, 3G is optional;

2. Secure – Using caller ID for identification, unknown callers are ignored;

3. No need to install indoor intercoms, no need wiring and indoor intercom cost;

4. No call charges. the GSM Access Control rejects the call from authorized number then carries out the open door action on the first ‘ring’;

5. Can open the door for visitors from anywhere, no distance limit;

6. No need to provide a remote control or keys or RFID card for different users;

7. Up to1000 authorized phone numbers for maximum 200 room owners;

8. Each Room has an Admin Password and 5 authorized Phone Numbers and 5 RFID Card;

9. Supports RFID Card to open the door;

10. Administer can add or remove authorized users by SMS Text commands;

11. 2 Relay Outputs (NC/NO), Relay close time is programmable (1~300 seconds), compatible with Electronic Locks and CCTV Camera;

12. User Friendly Design, LED Screen, Alloy Shell and keypad , Easy for installation;

Specifications

Item

Reference Scope

DC Power supply

Standard adapter: DC 12V/1.5A

Power consumption

Standby:12V/70mA; Working Max.: 12V/300mA

GSM Frequency

850/900/1800/1900Mhz/ 3G WCDMA/3G CDMA2000

Transmit power

Class 4 (2W) at EGSM 900 and EGSM 850

Class 1 (1W) at GSM 1800 and GSM 1900

SIM interface

Supporting 3V SIM Card

External antenna

SMA Antenna interface, 50 Ohm

Max.Autorized Number

1000

Max. Room Number

200

Max. RFID Card

1000, non-contact RFID Card(M1 S50)

Relay Outputs

2, Rated: 5A/30VDC,5A/250VAC

Temperature range

-10-+70 °C

Humidity range

Relative humidity 95% (condensation free)

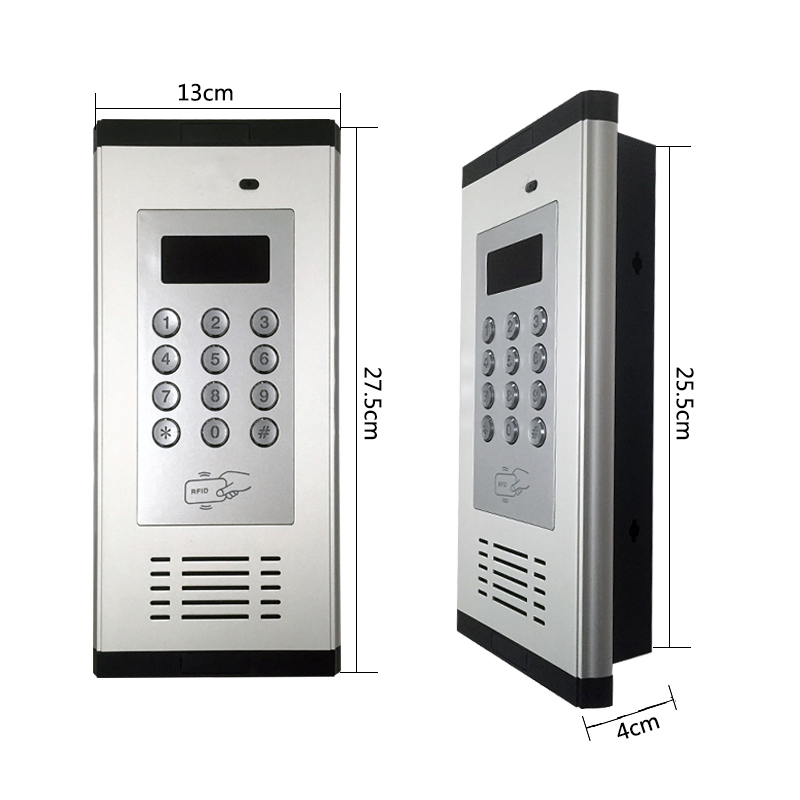

Exterior dimension

273mm*130mm*50mm

Install Dimension

252mm*113mm*33mm

Wall-mount Dimension

252mm*113mm*33mm

Net Weight

1000 g

Packing List:

Gsm Apartment Intercom *1

User Manual*1

Please note:This link price is 2G version.

Additional information

Model Number

K6

Brand Name

KING PIGEON

Security Mode

Fail Safe
