12V Electric Lock remote control+remote unlock Door Access Switch Electric Control Lock Gateway Access Control System
This system doesn’t provide e-lock and power of e-lock, user can purchase them based on requirement. Wireless unlock control which is set up on the e-lock, shares with e-lock when it works.
Notes: You should guarantee that the distance between wireless unlock control and outdoor camera should be within 10m so that wireless unlock control can receive unlock command.
1.Open the unlock control box, and connect wire according to figure.
2.Learning method and Remove operation among unlock control, remote control and wireless video door phone.
1)Press the ‘learning’ button of unlock control, the learning indicator light will flash, then press the button of remote control (If it is for wireless video system, press the button of indoor monitor when it is in talking status), At this time the learning indicator light flash and then go out soon, Which means that it enters learning status.
2)Repeat above operation, the learning indicator light flashes and then goes out, which means that the learning is successful.
3)Press the ‘learning’ button of unlock control for 6 seconds until the learning indicator light flashes and then goes out, which means all stored information has been removed successfully.
4)Remote control (optional), please use 27A/12V battery, and press to unlock.

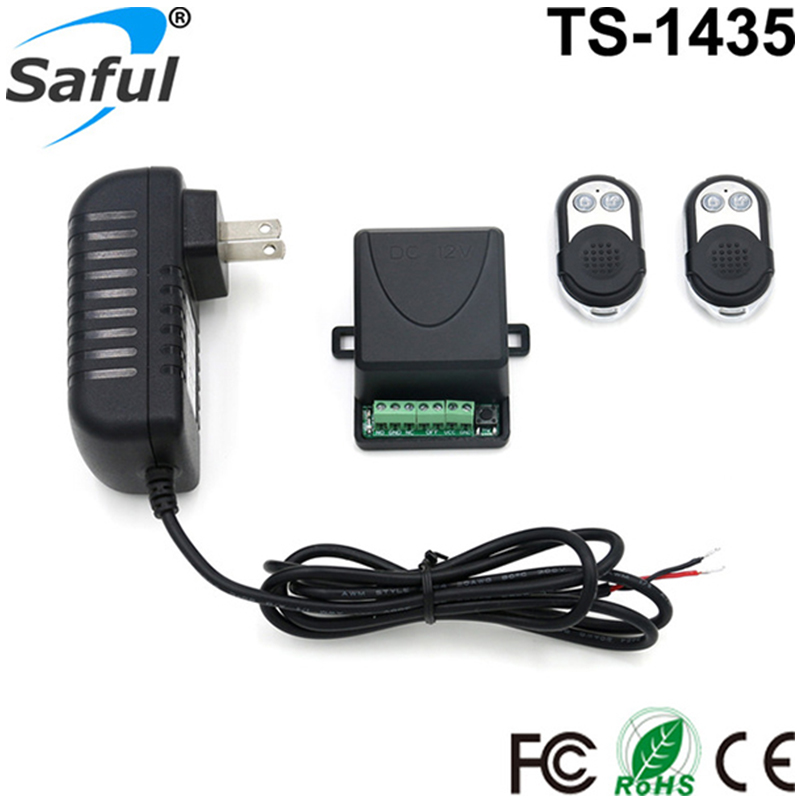

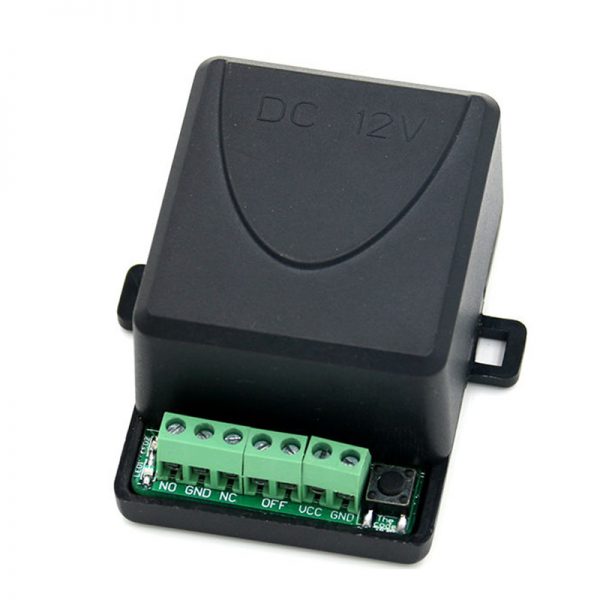

1x wireless unlocking control box

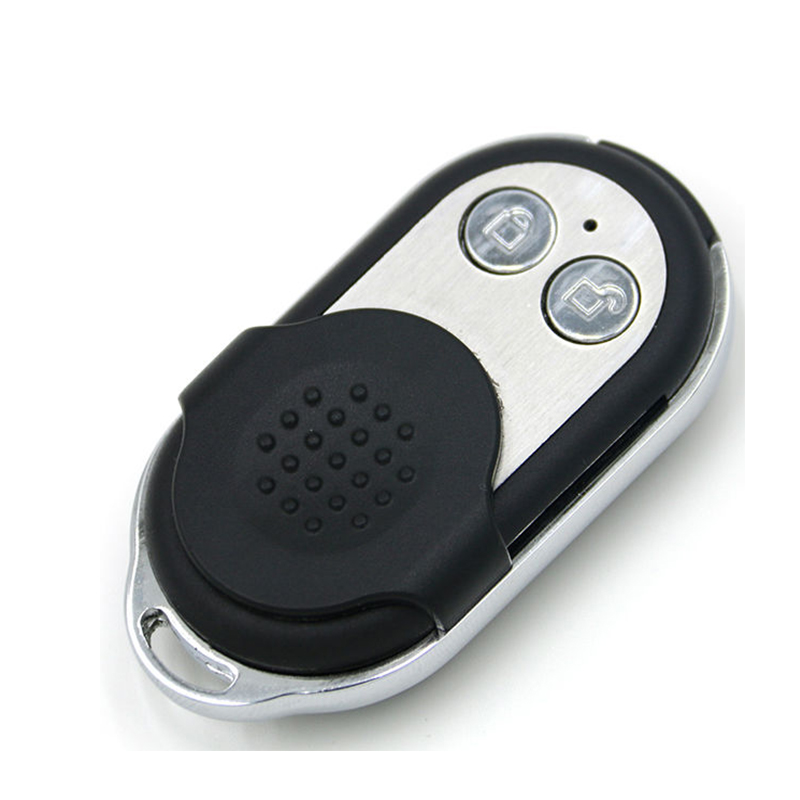

2x wireless remote control
1x DC12V power adapter ( support US,EU,AU,UK and so on)
