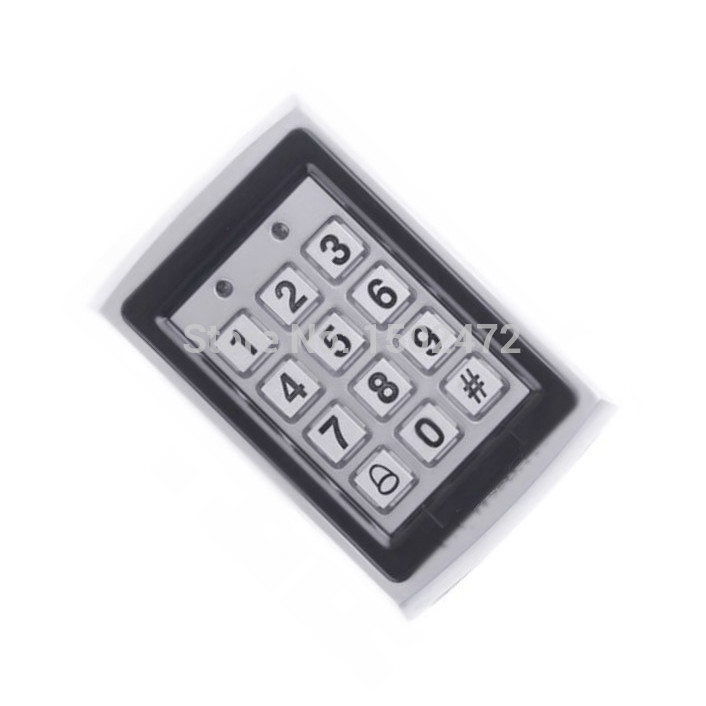

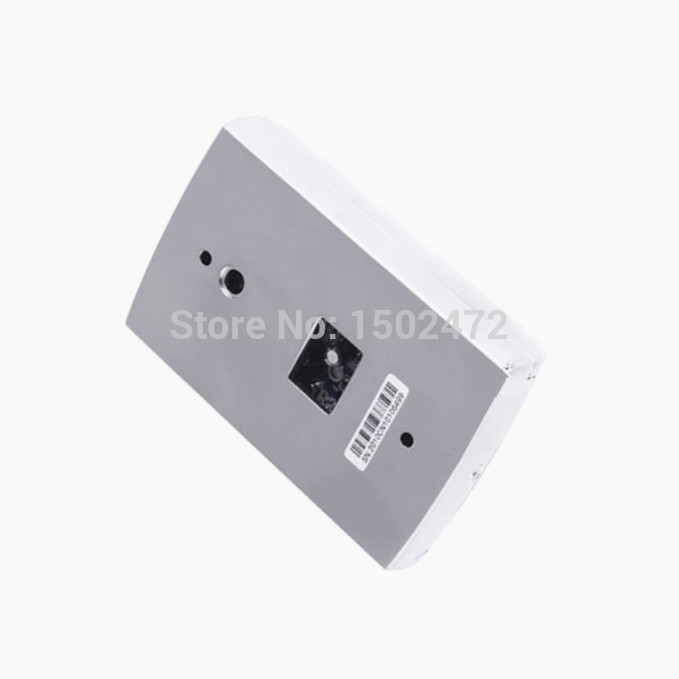

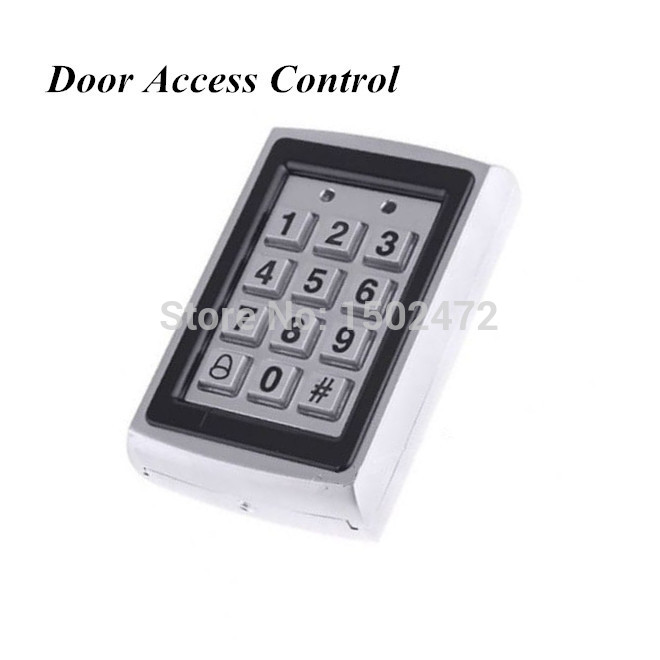

Door Mirror RFID Reader & Keypad Door Access Control Waterproof Metal Keypad Case

$32.81 $31.17

Out of stock


SKU: 32240759077
Category:

Description

Door Mirror RFID Reader & Keypad Door Access Control Waterproof Metal Keypad Case

Features:

  • High quality and high security

  • Metallic case for better protection

  • Support 1000 standard users

  • Support entry modes : Password Only / ID Card Only / Password + ID Card

  • Can add card number and delete card number as your requirement

  • Classical appearance with useful function

  • Alarm function

  • With lock relay output, secure / normal Mode, NO / NC output

  • Built-in bell button can connect a external bell

  • Designed for home and office

  • Built-in proximity card reader (125KHZ ASK modulation)

  • Built-in keypad for PIN code entry

  • Sensitively and response quickly

  • Auxiliary input & auxiliary output

  • 8 Auxiliary Modes including : door ajar, forced door, shunt, door monitor, normal / secure

  • Internal buzzer

  • 2 status / programming interface LED’S

  • 2 modes of operation : normal mode, secure mode

  • 3 user levers : normal user, secure user, master user

  • Code search feature that helps make maintaining user codes easier

  • Built-in case and back tamper bell, chime, siren, battery backup, tamper output features available with IBA power supplies

  • Programmable siren time

  • Programmable lock strike release time

Specifications:

Input Voltage :

DC 12 ~ 18V

Input Current : – Standby : 40mA (not including attached devices)
– Max : 130mA (not including attached devices)
Frequency : 125kHz
Read range : 65mm
Modulation : ASK at 125kHz
Compatible Cards : ALL 26-bit EM cards
Operation Temperature : -31°C ~ 63°C
Dimension :

– Approx. 76 (W) x 120 (H) x 27 (D) mm
– Approx. 3” (W) x 4-3/4” (H) x 1” (D) inch

Net Weight :

Approx. 450g

Lock Strike Relay :

5A

Auxiliary Relay : 5A
LockStrike Control Output : Collector open output (25mA)
Auxiliary Control Output : Collector open output (25mA)

REX :

N.O., dry contact

Auxiliary Input (In / Monitor) : N.C., dry contact in
Monitor Mode : N.O., dry contact input mode

Package Included:

1 x Metal Door Access Control RFID Reader with Keypad

1 x User Manual
