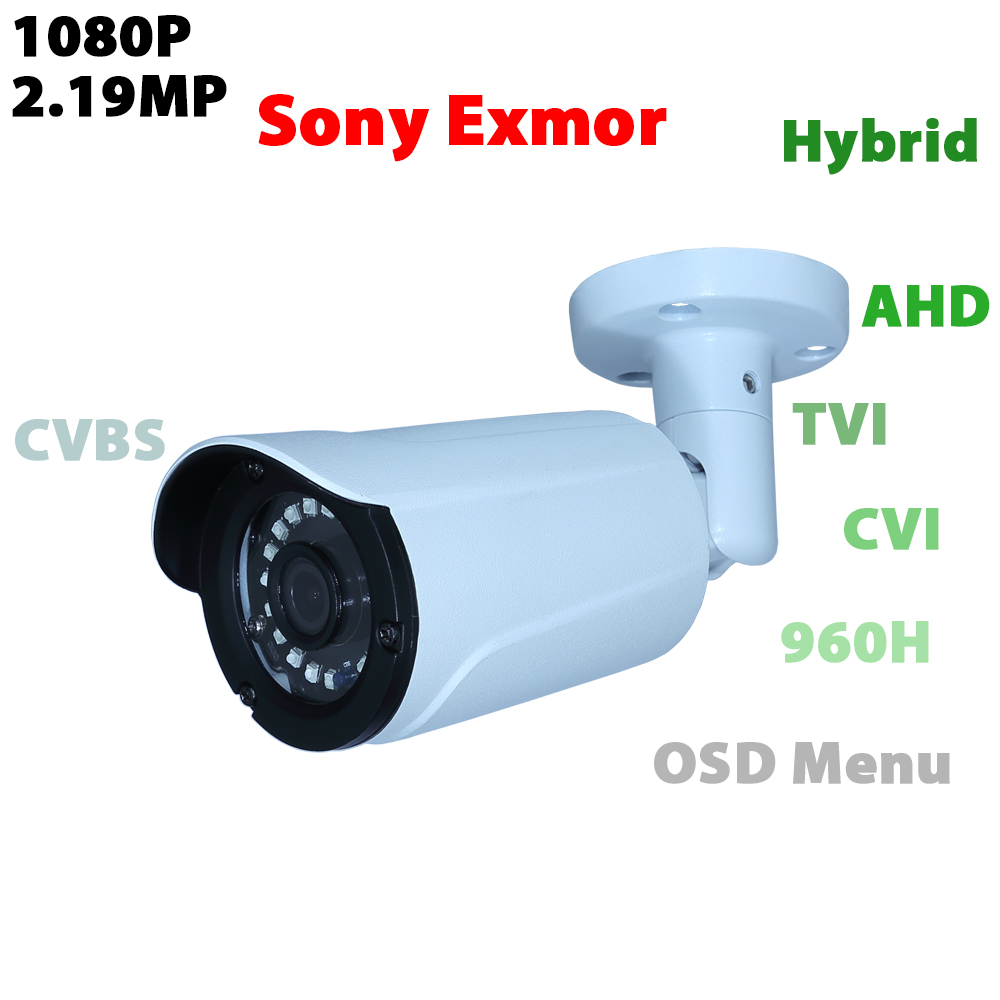

1080P hybrid analog video camera sony Exmor CMOS IMX323 AHD/TVI/CVI/CVBS output waterproof bullet security CCTV camera

43.93$ 41.73$
Clear

SKU: 32815932106
Category:

Description

Notes:

Each camera includes the free parts as follows:

BNC video cable connector:2pcs

Power supply cable DC male connector:1pc

Screw for installing camera:3pcs

1080P hybrid analog IR color bullet waterproof camera

Features

  • Exmor IR color bullet camera
  • 1080P real time image, high resolution,
  • Sony Exmor CMOS Sensor IMX323LQN
  • Approx.2.19M effective pixel 1/2.9”CMOS
  • High performance ISP with 2D digital noise reduction module
  • 3.6mm lens 3.0 Megepixel
  • 95°angle of view
  • 2D digital noise reduction
  • Max [email protected]
  • Support AHD/TVI/CVI/CVBS TV output
  • High speed, long distance, real time transmission
  • Support ICR switch, true day/night
  • Support OSD menu
  • Support COC control
  • Bulletl casing waterproof
  • Easy to install

Application SceneThis is a high performance camera with high sensitivity CMOS image sensor,2D noise reduction function, is suitable for the scenes which requires high definition image display in day and night such as finance, telecommunications, government, schools, shops, airports, factories and hotels and so on.

Model GM-6045M
Camera
Image Sensor 1/2.9″ CMOS Sony Exmor IMX323LQN
Effective Pixels 1985(H)×1105(V), 2.19MP
ISP(Image Signal Processor) FH8536E
Scanning System Progressive
Electronic Shutter Speed PAL: 1.3s~1/30000sNTSC: 1s~1/30000s
Minimum Illumination 0.01Lux
Image System PAL/NTSC
Video Output AHD/TVI/CVI/CVBS
Resolution 1080P (1920×1080)
Frame Rate 25/[email protected], 30/50/[email protected]
S/N Ratio More than 52dB
IR Distance Up to 100m (328feet)
IR On/Off Control Auto
IR LEDs Microcrystalline Led 18pcs
Lens
Lens Type Board lens
Mount Type Board-in
Focal Length 3.6mm
Aperture F1.4
Angle of View 95°
Focus Control Manual
Function
OSD Menu Yes
Function Control OSD ( COC Control )
Brightness 1-20
Exposure Mode GLOB/CENTER/BLC/FLC
Day & Night EXT/W&B/Color
White Balance Manual
Contrast Manual
Sharpness Manual
Color Gain Manual
2D digital noise reduction Manual
Video Standard PAL/NTSC
HD Format AHD/TVI/CVI/CVBS
Image Size 1080P/720P
D-WDR Open/Auto/Close
Language Multi-language
Reset Yes
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°Tilt: 0° ~ 90°Rotation: 0° ~ 360°
Eelectrical
Power Supply DC 12V±25%
Power Consumption Max 8.0W (12V DC, IR on)
Environmental
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH* Start up should be done at above -30°C (-22°F)
Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66 waterproof
Construction
Casing Aluminium
Dimensions 200mm×70mm×65mm
Net Weight 0.4kg
Gross Weight 0.6kg

The Video Quality Of Camera

Day Vision

Night Vision

3 Megapixel High Definition Lens

3 megapixel lens of cameraLarge aperture F/1.8

More light can be collected by this lens

More light can reach CMOS to make up pictures

Clearer picture camera can offer

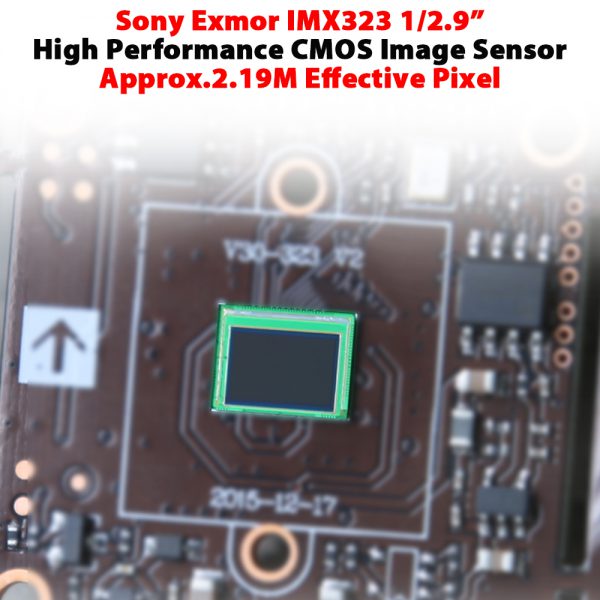

Sony IMX323LQN CMOS Sensor

Sony Exmor Technology

Full HD support high sensitivity CMOS image sensor

Improved sensitivity in the near infrared region

High-speed processing,low noiselow power dissipation

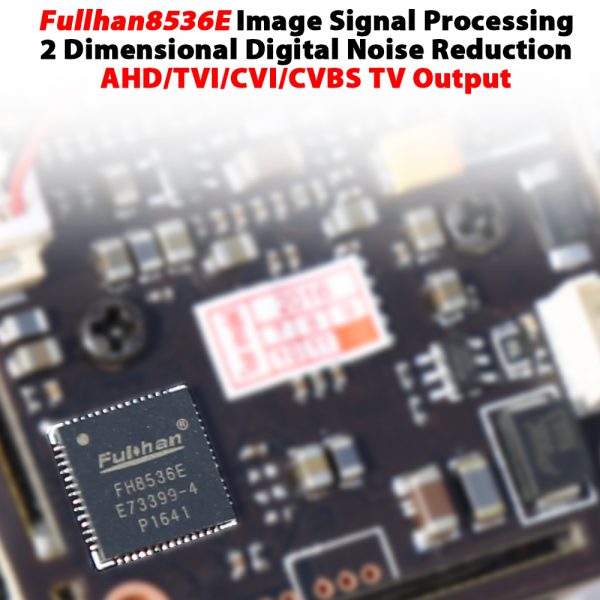

FH8536E ISP(Image Signal Processor)

FH8536E ISP is produced by ShangHai FullHan company

FH8536E ISP is a Low-Power High Performance ISP

TV format output setting

There are 2 ways to switch TV output of camera

Switch by OSD cable

Press The Setting Button About 3 Seconds To:

Switch by DVR

Enter camera menu through OSD cable/Video setting/Transfer mode

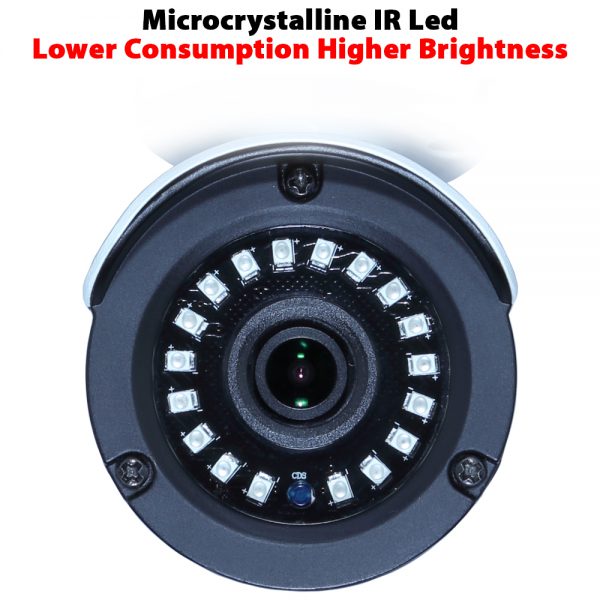

Advantage of microcrystalline IR led

①Low consumption and high brightness

②Angle mixed ,less dark corner area,see more details

③Upgraded Light Sensitive Resistor(CDS)

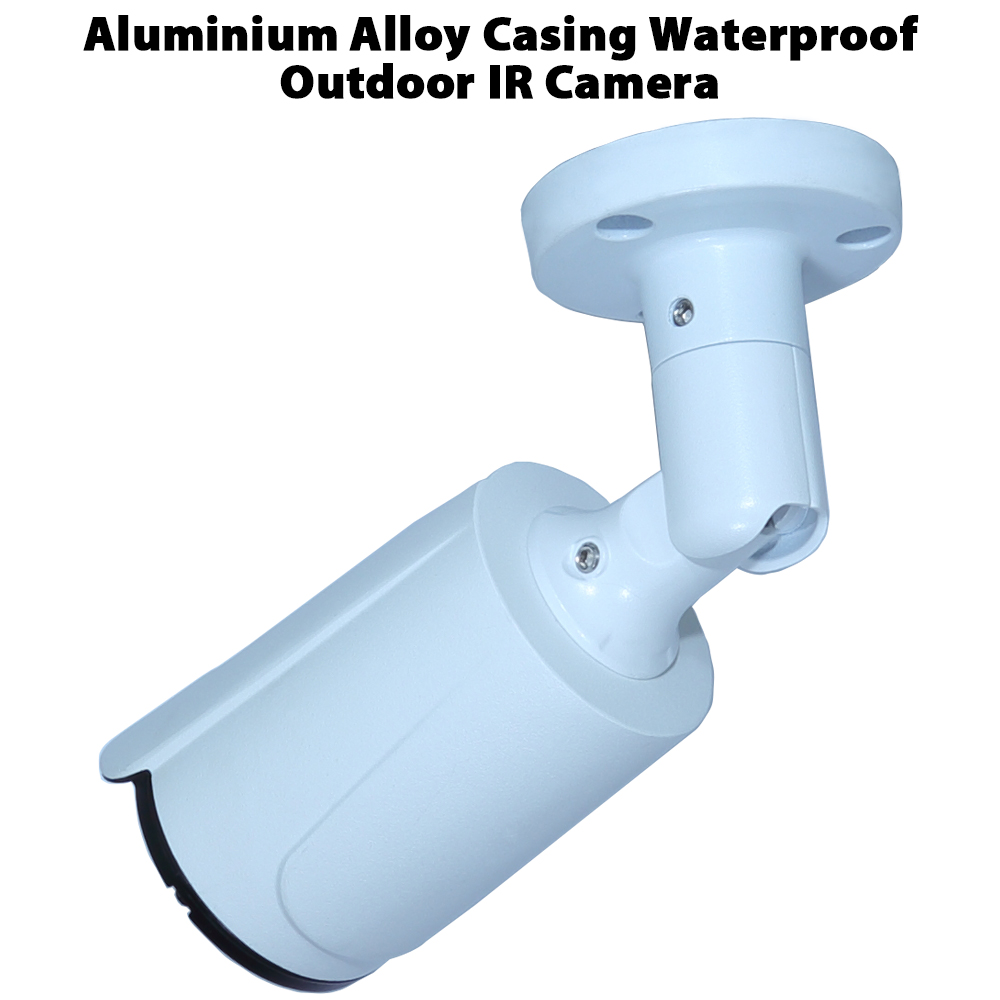

Product Show

Unique design

Excellent painting finishing

IP 66 waterproofAluminium alloy

OSD Cable

Good quality OSD video&power cable with OSD menu keyboard

IR CUT Filter

Good quality IR CUT filter used in the camera

Highly transparent optical glass filterMetal and ABS casing,working stable,better for dissipating heat

Additional information

Installation

Ceiling

Viewing Angle (Degree)

90°

Audio Output

Other

Brand Name

Eyechucai

IR Distance(m)

100M

Power Consumption(W)

6

Dimensions (L x W x D)(mm)

200x70x65mm

Color

White

Power Supply(V)

DC12V

Supported Operating Systems

No

Video Compression Format

H.264

Sensor Brand

SONY

Special Features

Waterproof / Weatherproof

Technology

Infrared

Minimum Illumination(Lux)

0.01

Style

Dome Camera

Type

AHD Camera

is_customized

Yes

Wall Bracket

Side

High Definition

1080P(Full-HD)

Lens (mm)

3.6mm

Sensor

CMOS

Connectivity

Closed System/CCTV Wired

Model Number

GM-6045M
