Single/double access Door & gate Access Control system Electronic integrated RFID motorized lock with RFID reader 40pcs ID tags

$36.93$51.03
Clear

SKU: 32809013135
Category:

Description

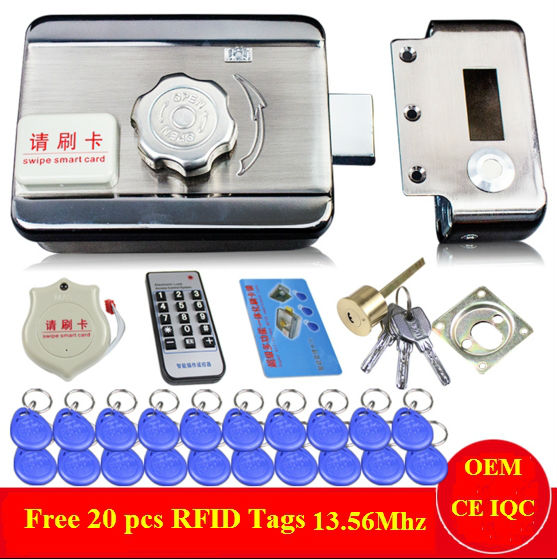

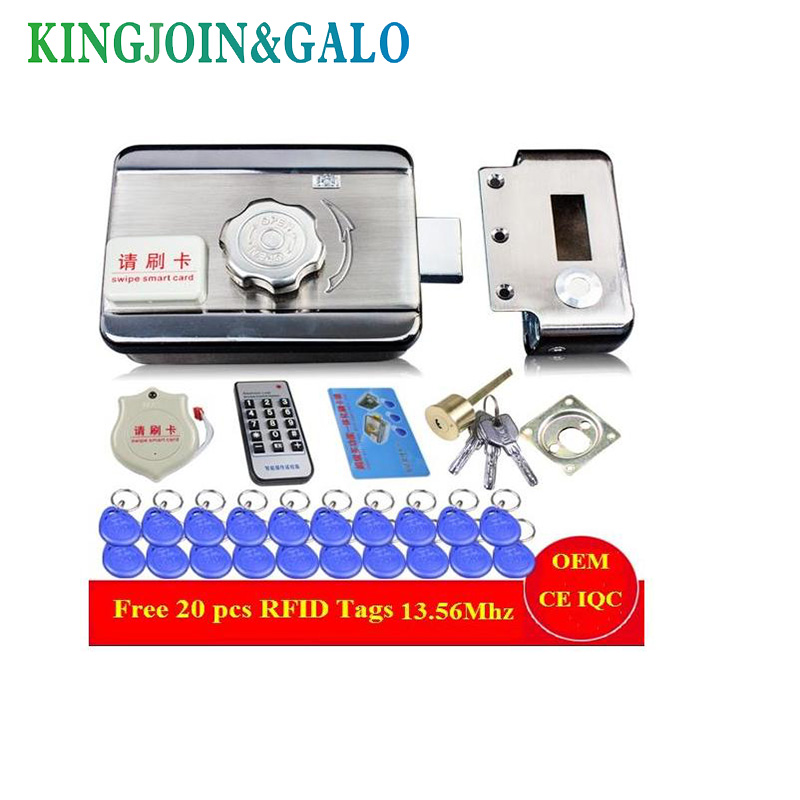

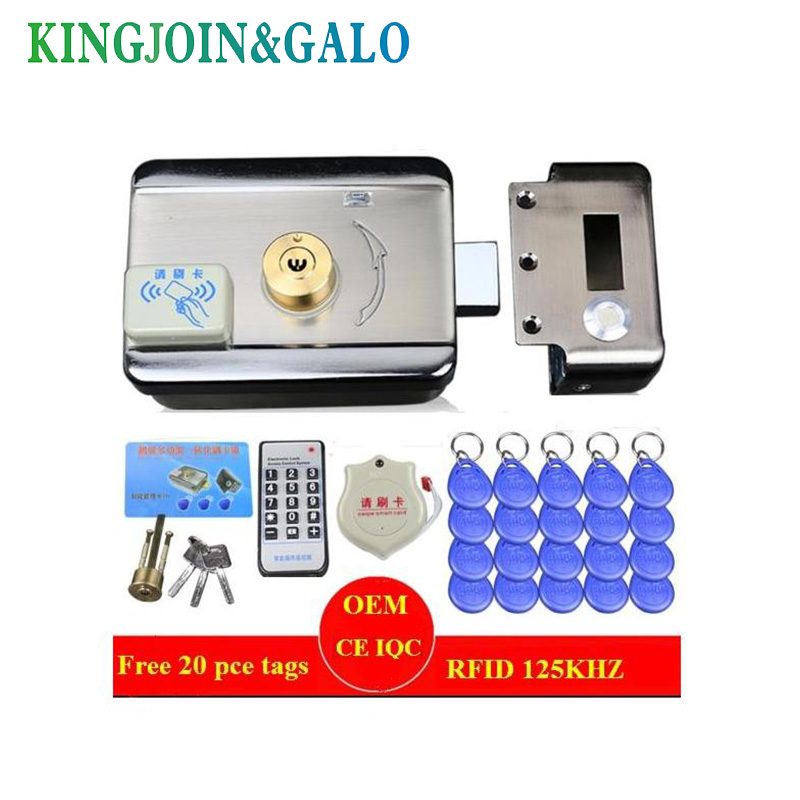

Package contents: a unit of lock(bidiretional access version or single access version)+40pcs keyfobs+key+master card+remote control(no battery included)

D= bidirectional access lock, S= single access lock

there are four models of this lock:

1. one with ID reader 125khz, opening by knobs for exit; one with ID reader 125khz, opening by keys for exit;

​2. one with IC reader 13.56MHZ, opening by knobs for exit; one with IC reader 13.56MHZ, opening by keys for exit;

Battery CR2025 inside of this remote control will be taken out before delivery as battery is very sensitive for shipping; this kind of battery is easy to be found locally.In compensation, we will offer 5 more keybobs each package.(totally coming with 20 tags)

For this lock, there are two version: one is exit by hand knob, no needing keys or card swiping to open it(single access); the other model is exit by keys or card swiping(bidirectional access);

​For RFID tags, we have other color available as red, yellow or green; also we could provide PVC card.

For English manual, it is not coming with this product and please leave your email, we will send it to you by email.

pic as follows, viewing the lock from inside of the room.the first one is single access lock and the second is bidirectional access lock;

Remote controller instructions:

Programming code: 9999
When enter the programming status, please press #9999#
When this is done, the LED light is green;
1.Adding extra card/tag
Press 1# and swipe the card, then there is sound di di di; card registered successfully; or press 2# and put in the last six digits of the tag;

2.Deleting card/tag

Press 4# and swipe the card; card deleted successfully;

Or press 5# and then put in the last 6 digits of the card and press #

Or to delete all users, press 90#90#;

3.Changing programming code:

Press 0+#+new code#new code#(the new code is any digits from 1000 to 999999999

4.Changing lock opening code:

the original code is 8888; and if the user press #8888#, the lock will open.

Press 92+new code+#(the code should be any digits from 1000 to 999999999)

5.Speaker operation:

Press 97+# to run the speaker and press98+# to close the speaker;

After all programming, please press # to log off the programming status.

Additional information

Security Mode

Fail Safe with Signal

Model Number

DSBD-D

Brand Name

KINGJOIN&GALO
