Authorized 200 users open gate at the specified time!

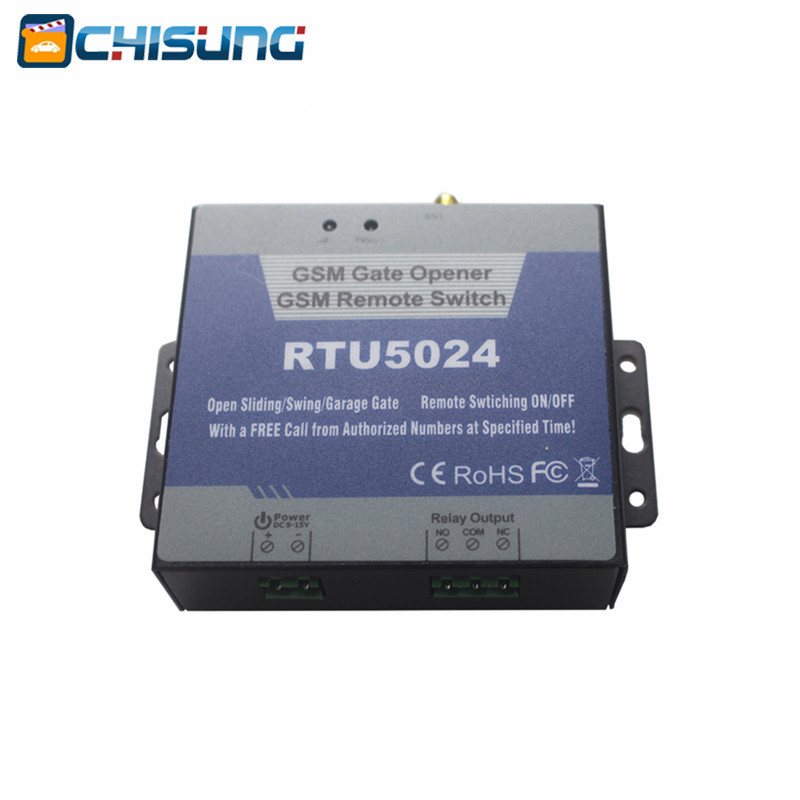

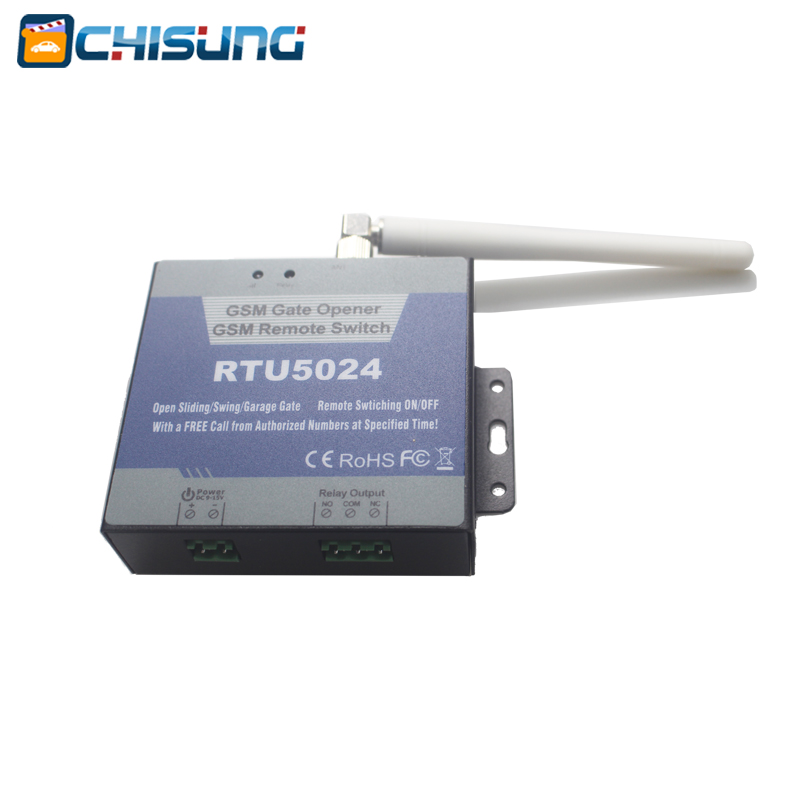

The GSM Gate Opener/Relay Switch RTU5024 is a powerful, very simple device which can be used for authorized door access, controlling gates, switching of remote equipment, car parking systems. Actually the it can be used in places which require to turn ON/OFF your system, machines, equipment remotely with a FREE call (missed call) by Caller-ID technology from your fixed or mobile phone.
1. Applications
— Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call!
— Residential: Door,gate,garage access control, electronic fan,microwave,air-conditioner control.
— Industry: Remote switch equipment, for example: street lights, solar power, motor, inverter, PLC, pumps, fans, etc.
— Agriculture: Remote control pumps, etc.
— Business: Remote control electronic boxes,bright billboards,LED signs,etc.
2. How it works?
A) Wiring the RTU5024 Gate opener with your door locks or other machines.
B) Insert SIM card to RTU5024 Gate Opener, Power up.
C) Send few SMS commands to RTU5024 Gate opener, to assign the authorized user list.
D) Make a phone call from the authorized user’s phone number, RTU5024 Gate Opener reject
phone call and door open or close.
For example,If you are using the RTU5024 GSM gate opener for open/close your garage door by
your family memebers, what you need is just 2~5 SMS commands only.
GSM Frequency | Quad-band 850/900/1800/1900MHz |
Relay | NC/NO dry contact,3A/240VAC |
DC Power supply | 9~24VDC/2A |
Power Consumption | 12V input Max.50Ma/Average 25mA |

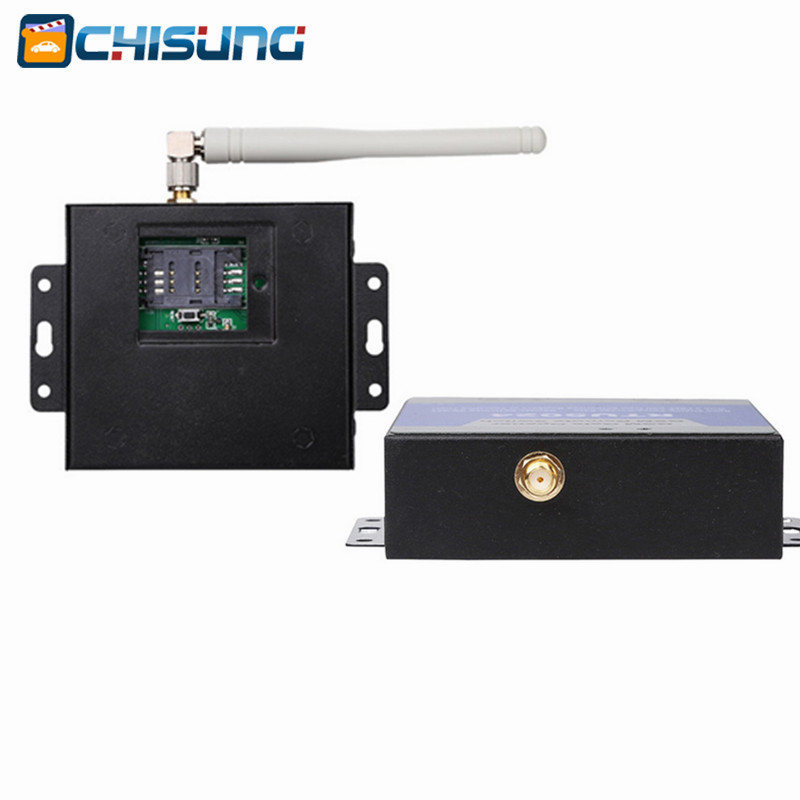

SIM Card | Support 3V SIM Card |
Antenna | 50 Ω SMA Antenna interface |
Temperature range | -20~+60 °C |
Humidity range | Relative humidity 90% |
Exterior dimension | W102mm*D76mm*H27mm |
Net Weight | 180 g |
Standard Packing List
> Gate Opener * 1
> Antenna * 1
> User Manual *1
> Packing size: 17*9.5*4 cm
> Gross Weight: 0.32kg
