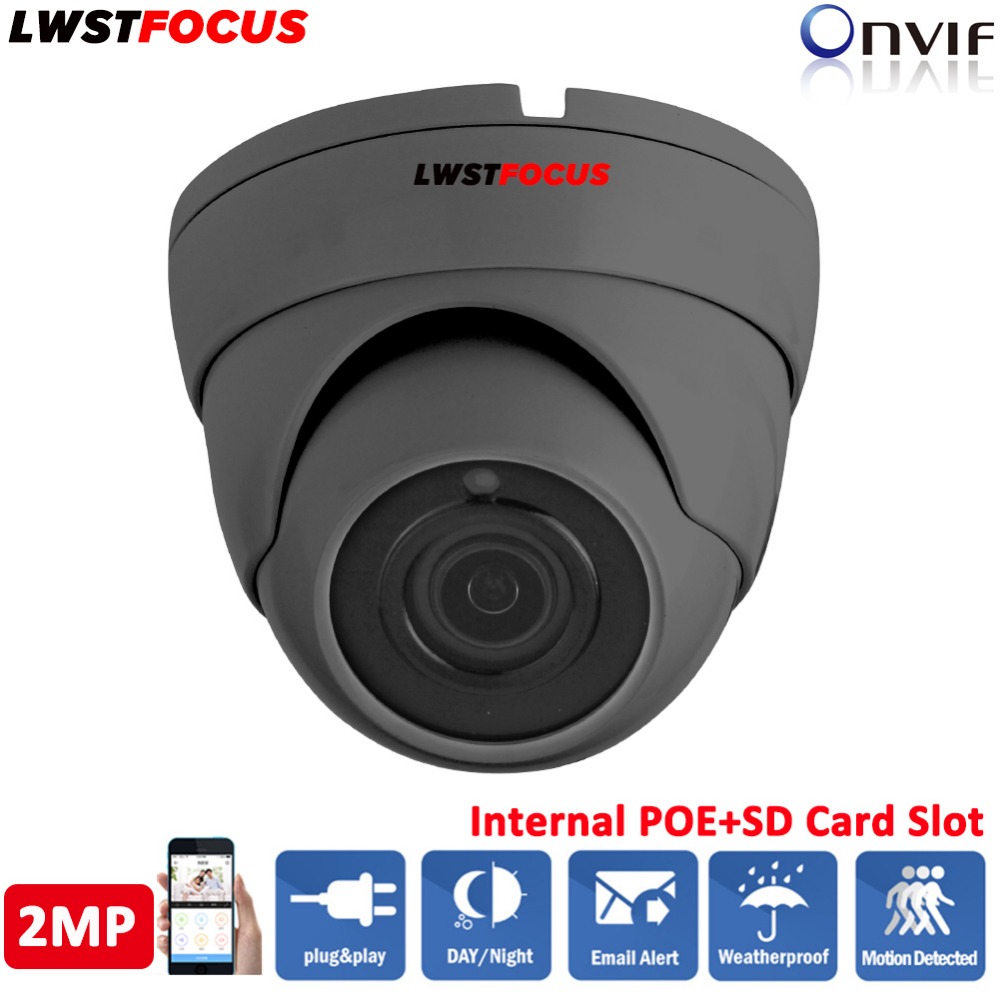

LWSTFOCUS 2MP 1080P HD IP Camera Micro SD/TF Card Sony IMX323 2.8/3.6mm P2P In/Outdoor IR Dome Network CCTV Camera FREEIP ONVIF

$63.98$72.81
Clear

SKU: 32821394880
Category:

Description

LWSTFOCUS 2MP 1080P HD IP Camera Micro SD/TF Card Sony IMX323 Onvif P2P Indoor Outdoor IR Dome Network CCTV Camera FREEIP ONVIF

POE Optional: Power Over Ethernet 10/100mbps IEEE802.3af for IP camera,12V 15.4W Support 10/100M.

Highly comptiable with Hikvision, XM,Dahua, add LWSTFOCUS, Hikvision, XM private protocal already, support ONVIF, ONVIF2.4 protocal. Notice : DC 12V NO POE IP Camera and 48V PoE IP Camera Version Optional. DC 12V NO POE Version Can Just Work With DC 12V 1A-2A Power Supply ( NOT INCLUDED) 48V PoE Version Has Built PoE Module Inside+SD Card Slot, Which Can Work With DC 12V Power Supply & 48V PoE Switch/Injector (NOT Included )

Main Characteristics

1.Support H.265, H.264,support fog mode, 2. Audio input(optional)/Reset function; 3.Use IR-CUT port,support automatic switching operation of optical filter; 4.Use standard 38*38 Single board module design structure,Suitable for most camera housings; 5.Maximum resolution 1920*1080@30fps, high quality images; 6.WEB new UI Interface,support proprietary protocol of hikivision, hikivison’s Computer client ivms4200,ONVIF protocol; 7.ISP use the third generation technology,the effect of image will full line upgrade.Performance is more excellent of 2MP IP camera, but the price is super advantage, create the market for the best cost-effective of 2MP IP camera Products Introduction

1/2.9″ SONY Low Illumination CMOS Sensor HISILICON Hi3516C, WDR; (Internal POE With SD Card Slot) Main Stream: 1080P@30fps; 3MP HD Lens, With IR-CUT

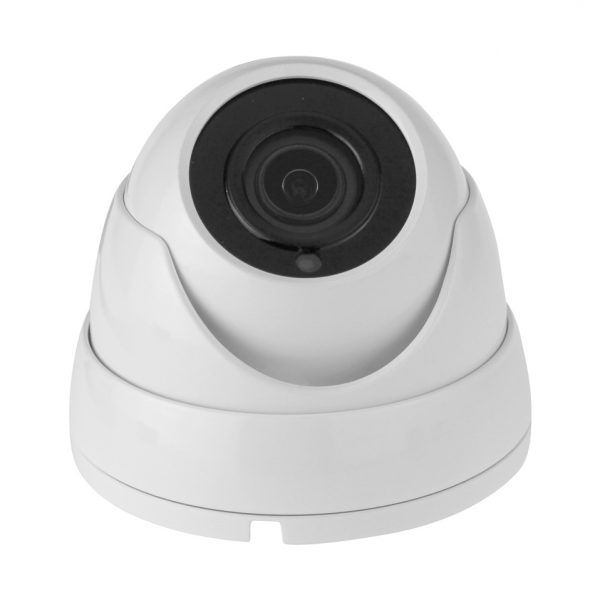

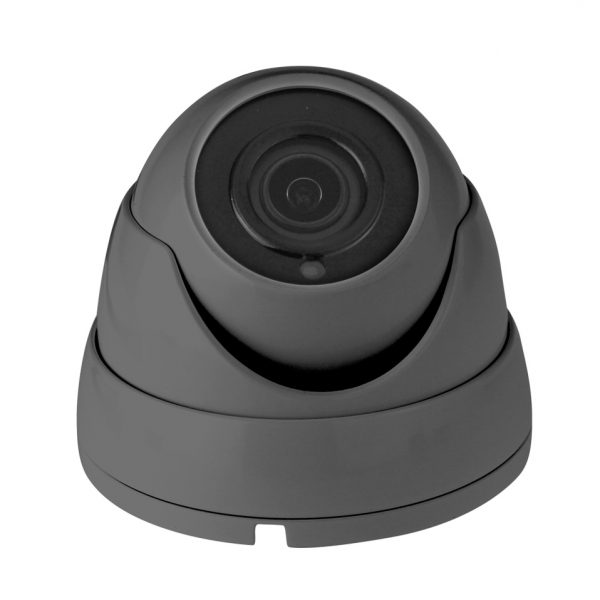

Vandalproof IR Dome Camera Water resistance: IP66 IR LED: 14µ x 18PCS IR range: 20M Board Lens 3.6mm/F2.0 2.8mm Lens Optional Size: 94 x 69(H) mm Weight: 450g If need 2.8MM lens, dark grey, white housing optional. Dear friend, please feel free to leave a message to me, thank you!

Function Introduction

1.With Screen Capture command

2.Motion Detection Alarm (range18 * 22) FTP(FPEG&AVI, SMTP, JPEG&MESSAGE&AVI;

3.Timing: Manually, PC synchronization, network synchronization (nistwindowsnw.nista.nistb.nist);

4.Privacy zone block (8 * 8), 3 groups can be supported;

5.Brightness Contrast saturation Sharpness adjustment White Balance: Auto & Manual 3D NR(adjustment range 1-255);

6.BLC(off by default), ISO mode (normal Enhanced – default), WDR (off by default), AE (automatic default, manually adjustment range 1-255

7.Electronic Shutter(off by default, manually adjustment range1/25 – 1/10000s);

8.PALNTSC optional and default as PAL;

9. Support DDNS and DDNS types as Oray,NO-IP,DYN DDNS;

10. Safe: Passowrd is required when connect third-party software or device (such as a type of VLC player RTSP);

11. Support audio which need add mic, off by default;

12. User Management(add,delete,configurate competence), 10 group at most;

13. DHCP(default as off), support unified Port for HTTPRTSPONVIF(default as 80);

14. P2P(FREEIP), support login ways as SNIOS APPAndroid APPQR code scanning, and support connection status display;

15. Main stream(1920*1080@30fps) sub-stream as D1-720*480,Stream adjustment Frame rate, bit rate, VBR CBR variable bit rate, frame interval),OSD menu(time + text, 2 lines);

16. Support OCX manual recording, manual shots, power outages memory support, built-in & external reset button.

Packing content

1*IP camera

Screws bag

1*CD(Softwares and User Guide)

1*Quik Operation Guide

1. We ONLY ship to Alibaba confirmed address. Please make sure your address on file is up to date. 2. Item will be shipped within 2-3 business days after payment confirmed. 3. All products are free shipping via Aliexpress Shipping, China Post Air Mail or HongKong Post Air Mail. The items usually take 10-21 business days to arrive, weekends and holidays not included. It may be up to 28 business days for some factors.If placed order more than 10pcs, please contact us for surprising best shipping price on UPS, DHL or EMS etc. 4. If you have not received your shipment within 30 days after we shipped, please contact us. We will check the shipment and reply you as soon as possible. 5. Buyer is responded for (in case) all tax or VAT under any circumstances. 1. Item will be checked and packaged in good condiction before ship out. 2. If you find any problems of our product, please contact with us first and we will help you to slove the problem. 3. Item comes with 12months warranty against any manufacturer defects. We provide replacement service for defective product. 4.All sales are final, no refunds or returns on perfectly working items. Unauthorised returns will be ignored. The return policy does not cover accidental damage due to misuse, abuse or improper care. Feedback is important to us, please kindly leave a positive feedback if you are satisfied with our product and service. We guarentee to do the same for you. Please contact us first before giving a non positive feedback, so that we can try our best to resolve the issue. We will be very appreciated if you give us 5stars, thank you!

To all dear customers, my dear friends, we are more than 10 years professional CCTV manufacturer, all products from us are more than 3rd QC tests, there is no middle man, true facotry direct selling, quality products in amazing facotry direct competitive price, welcom to contact us online or via email, we will relpy you within 12 hours, any support, please feel free to leave a message to Lewei. Thank you. Choose LWSTFOCUS, choose a quality reliable supplier, choose the best quality CCTV products.

Additional information

Viewing Angle (Degree)

90°

Audio Output

Other

Sensor Brand

SONY

Installation

Ceiling

Power Consumption(W)

3-12W

Connectivity

IP/Network Wired

Lens (mm)

3.6mm

Network Interface

RJ-45 10/100Mb Ethernet Slot

POE

POE Optional

Wall Bracket

Ceiling

SD Card Slot

SD Card Slot Optional

Solution

IMX323+Hi3516C

P2P APP

FREEIP(www.freeip.com)

Compression

H.264/H.265

IR Distance

20Meter

Protocal

Support Hikvision,XM private Protocal

Type

IP Camera

Power Supply(V)

12V

High Definition

2MP 1080P Full HD

is_customized

Yes

Alarm Action

Email Photo

Technology

Infrared

Minimum Illumination(Lux)

0.01Lux

Sensor

CMOS

Supported Operating Systems

Windows 7,Windows 10,Mac os,Windows 8,Windows XP

Video Compression Format

H.265,MJPEG,H.264

Brand Name

LWSTFOCUS

IR Distance(m)

20Meter

Model Number

LWIRDBS200

Special Features

Vandal-proof

Supported Mobile Systems

iPhone OS, Android, table,PC

Dimensions (L x W x D)(mm)

94 x 69(H) mm

Style

Dome Camera

Color

White
