Security Outdoor single beam sensor, Infrared Beam Sensor , Active Infrared Detector
Gate safety photocells are designed to reverse automation when the infra-red beam has been broken. This will trigger a relay built into the photocell which switches a pair of contacts on the main control panel of your gates. These photocells have an open circuit or a closed circuit which can be used to trigger the gates to reverse as a safety feature, or trigger to operate as an opening signal.

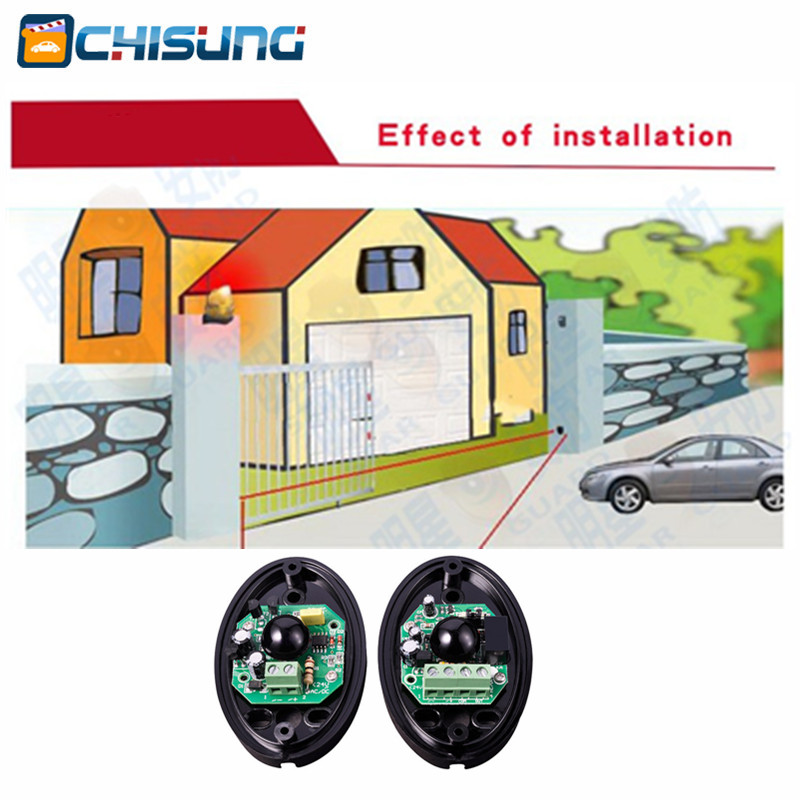

1.Install each pair at the opposite positions.Then there is a infrared area between these two detector parts. When someone passes the infrared region, the detector will send alarm signal to the security alarm host (which not included here).
2. Install Distance(Max.)in the above chart means the maximum install distance between the two detector parts.
3. Great to be installed for security system in school, office building, hosipital, home yard, etc.
4. Detecting range can be reduced to 30% in bad weather conditions, like rain, dust, etc.
5. English Usage Manual included in the pack. It will give you detailed instructions.
Detector Area: indoor 20m. Outdoor 10m
Work current : 50MA
temperature : +50~ (-30)
Size : 49.2 x 76 x 21.6MM
Water Proof, UV proof
1. Passed CE,FCC,ROHS,IP55 certification
2. With rain proof design
3. Unique digital filter circuit design,strong anti false alarm ability
4. With high levels of anti-RFI/EMI capability
5. Fully sealed design,rain-proof(fog),dust-proof(worm),suitable for hostile environment
6. The product is suitable for access control system,home intruder alarm system. Installation place:door,window,passage,barriers and so on.
7. Adopted 12-24V wide voltage design,can be used with kinds of alarm panel and access control system.
