IE Web Access Access Control Board door controller 4 Doors One Way Access Control Board Access Control Panel With Free Software

$123.16 $117.00

Out of stock


SKU: 1850302464
Category:

Description

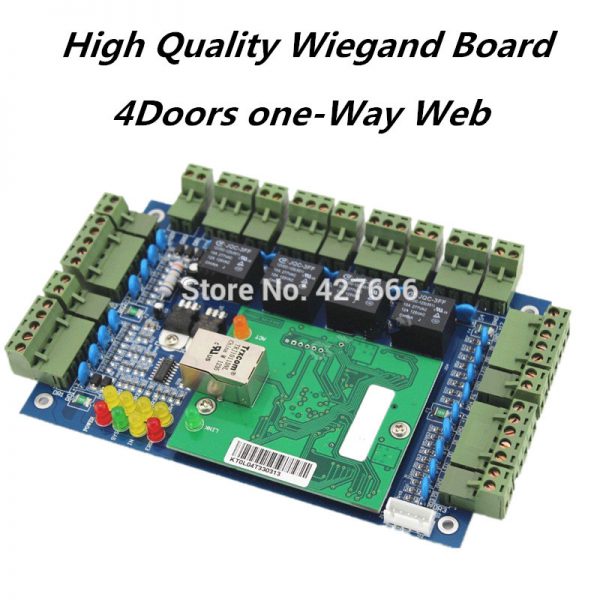

Specifications of the Access Control Board:

A

Communication

TCP IP

B

Software support data base

SQL

C

Description

Control 4 door,entry&Exit by card&keypad or exit by hit button

D

Power Supply

12VDC; 4-7A

E

Power Consumption of Circuit Board

Less than 100mA

F

Input Format of Reader

Wiegand 26/34 bit (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)

G

Quantity of Readers

4

H

Door Controlled

4

I

Door opening time extending setting

1-600 Seconds(adjustable)

J

Max q ‘ ty of controller

Unlimited

Technical details:

I

Operation Temperature

-40°-70°

II

Operation Humidity

10-90 % RH ,No Condensation

III

Q ‘ ty of users

20,000 Users

IV

Q ‘ ty of Event

Buffers(offline) 100,000 Event Buffers

V

Power interruption

protection measure High Speed Memory, Records never lose

VI

Max Distance

from Reader to Controller 100M (suggestion distance 80m)

VII

Max Distance

between Controllers Depand on network range

VIII

Collocations

PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton

VX

Alarm functions

Alarm for long time door open, ilegal break in, intimidate

X

Fire and alarm linkage

If no connection with the expansion board,,only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm

Additional information

Brand Name

sebury

Security Mode

Fail Safe with Signal

Model Number

L04-1

Communication

TCP/IP

Q ' ty of users

20000

Power Supply

DC12V

Q ' ty of Event

100000

is_customized

Yes
