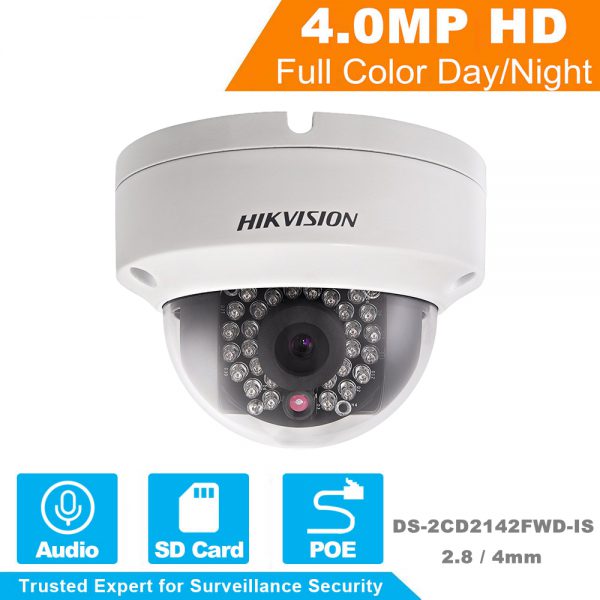

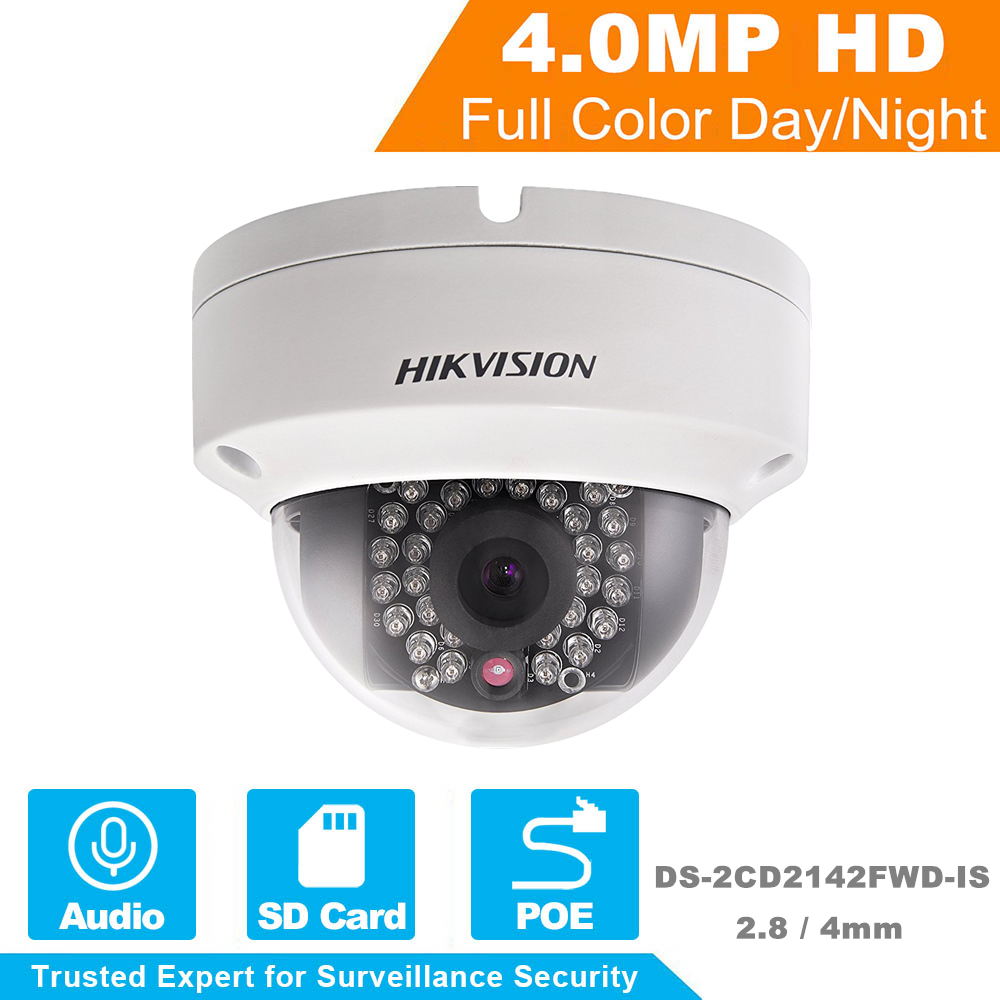

HiSecu Security IP Camera 1080P DS-2CD2142FWD-IS ( Mobile via icloud P2P / iVMS-4500)
4MP HD 1080P IR Dome Network Camera Indoor/Outdoor Fixed Lens Buit-in SD Card Slot & Audio / Alarm
Specifications
Camera
Image Sensor:1/3″ Progressive Scan CMOS
Min. Illumination : 0.01Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter time : 1/3 s ~ 1/10,000 s
Slow shutter : Support
Lens : 2.8mm, 4mm, 6mm @ F2.0
Adjustment Range : Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
Lens Mount : φ12
Day& Night : IR cut filter with auto switch
Wide Dynamic Range :120 dB
Digital Noise Reduction : 3D DNR
Compression Standard
Video Compression : H.264/MJPEG/H.264+
H.264 code profile : Main Profile
Video bit rate : 32Kbps~16Mbps
Dual stream : Yes
Max. Image Resolution : 2688 × 1520
Frame Rate : 50Hz : 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
60Hz : 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC : Yes, zone configurable
ROI : Support
Network
Network Storage : NAS (Support NFS, SMB/CIFS)
Alarm Trigger:Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access
System Compatibility:ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio :
1-ch 3.5 mm audio in (Mic in/Line in)/out interface
Communication Interface : 1 RJ45 10M / 100M Ethernet interface
Alarm : 1 alarm I/O
On-Board Storage :
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button : Yes
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply : 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption : Max. 5W
Weather Proof : IP67
IR Range : 30 m
Weight : 500g (1.1 lbs)
