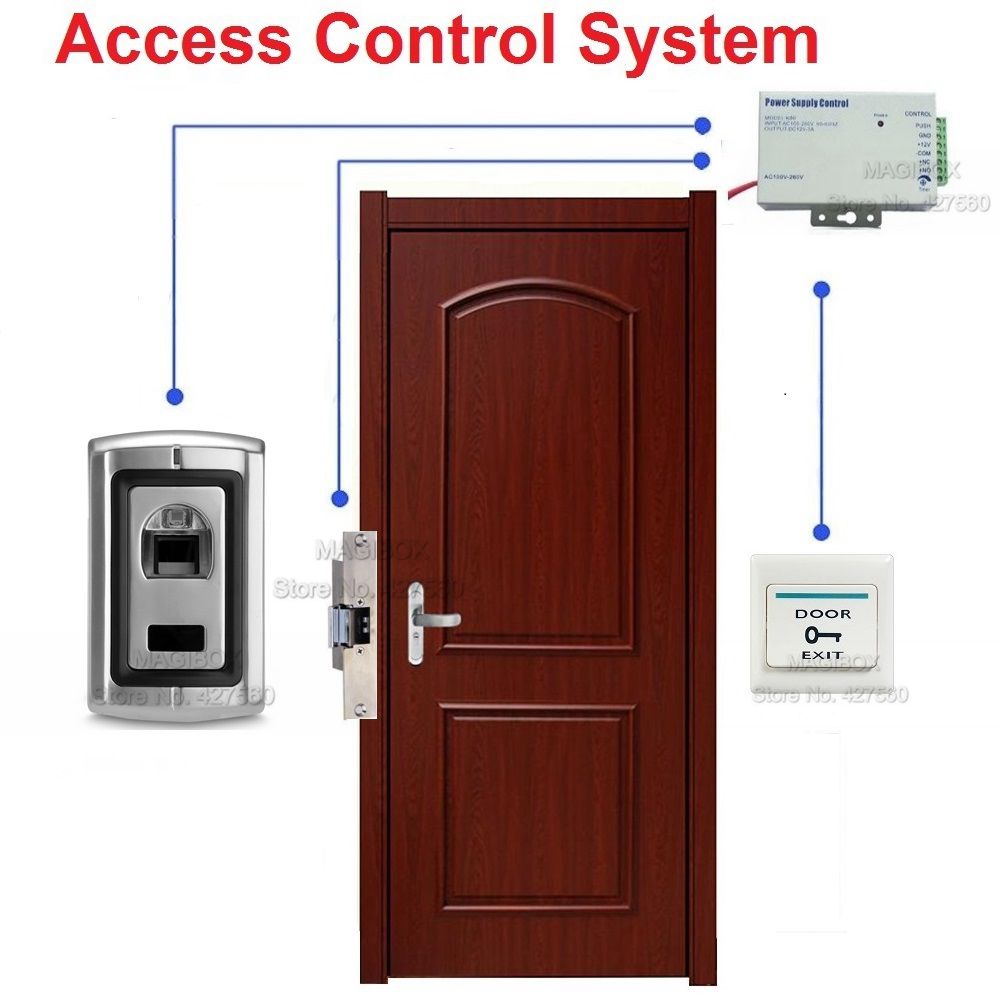

Fingerprint Door Access Control System Kit + Strike Lock +Power Supply + Switch

Fingerprint Access Controller:
Features:

Simple: Fingerprint only, easy to program
One relay: Secure for one door
Metal shell Bright Chrom Biometric, anti-vandal
120 fingerprints
Remote infrared programmer
Lock release relay, NO and NC, 12 Volt DC System
Fireproof, Shockproof
Programmable lock release time
Sleep mode to save energy
Built in PIR to wake up the device from sleep mode
Three color LED indicator
One second activation time, after placing finger on reader

Technical Specification:

Supply Voltage:12VDC ± 10%
Sleeping Current:<20mA
Stay Current:<100mA
Door Relay:3A
Temperature:-20C -60C
Humidity:20%RH-95%RH
Memory capacity:120
Manager quantity:2
User fingerprint quantity:118
Resolution:450 DPI
Fingerprint input time:<1S
Identification time:<2S
FAR:<0.0001%
FRR:<0.01%
Dimensions: L115mm x W70m x H32mm
Electric Strike Lock Specifications:

Made of Stainless Steel
Working Voltage: DC12V
Current Draw: 200mA (NO)
Fail Secure: Unlocked when energized (NO)
Safety function: Built-out voltage spike suppressor
Opening Mode: 90 degree swinging door
Performance Testing: one hundred thousand times aging test
Suitable For: Wooden Door, Metal Door, Fireproof Door.
Face plate: 150Lx39.5Wx28H(mm)
Net Weight: 0.4kg
Access Control Power Supply Specifications:

Can reduce the load of access controller, save wiring to reduce the hidden trouble
Set NC / NO outputs, can control various types of electric locks
Based delay control circuit, lock time can be in 0-15 seconds
Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line of
The circuit board has remote control port.
Operative device: E/M Lock, Access Controller, Exit Push Button
Input Voltage: AC 100~240V 50~60Hz
Output Voltage: DC 12V 3A
Outer Dimensions: 117 x 68 x 32mm
Door Exit Button Specifications:

Faceplate Dimension : 85Lx85W (mm)
Opening device: Normal Open
Maximun Power Rating: 3A/36VDC
Material: Hard Plastic
Package:

1 x Fingerprint Device with Screwdriver
1 x Electric Strike Lock
1 x Access Control Power Supply with Manual
1 x Door Exit Button
