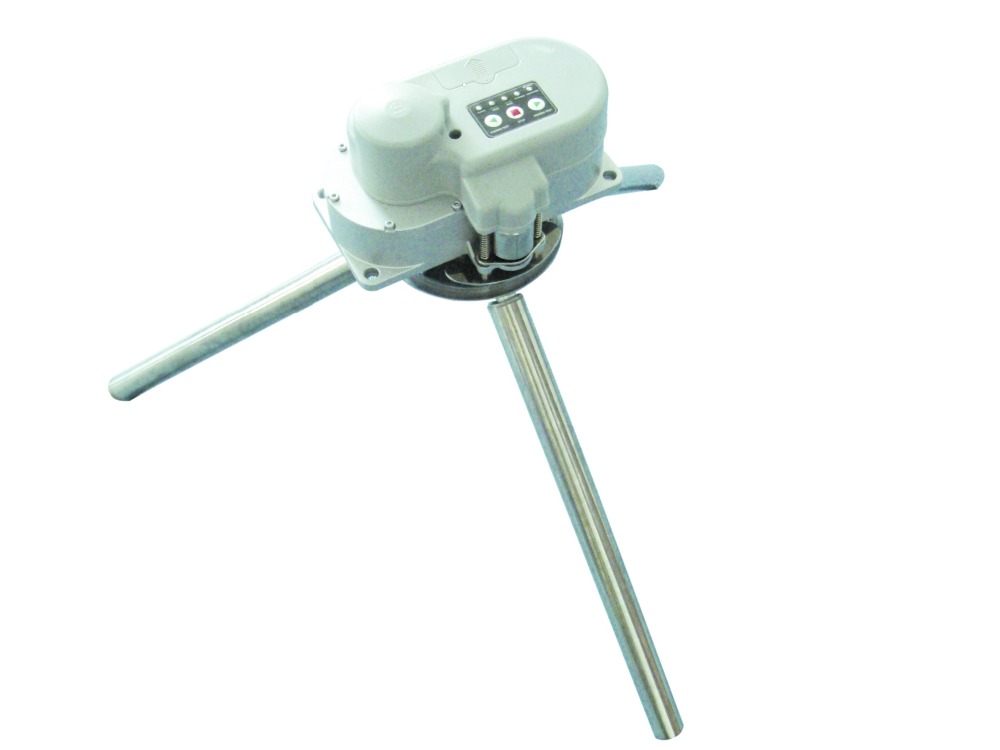

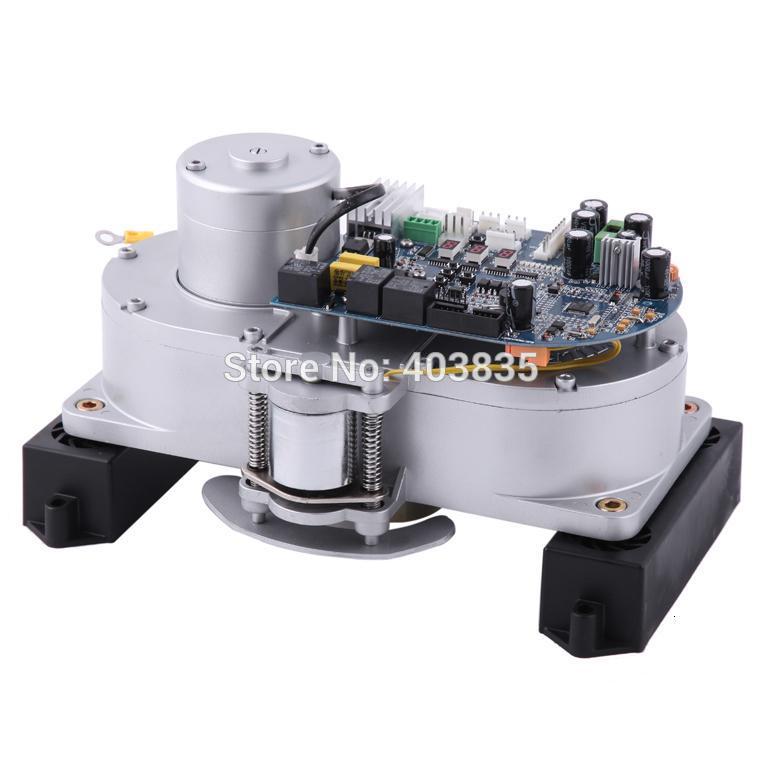

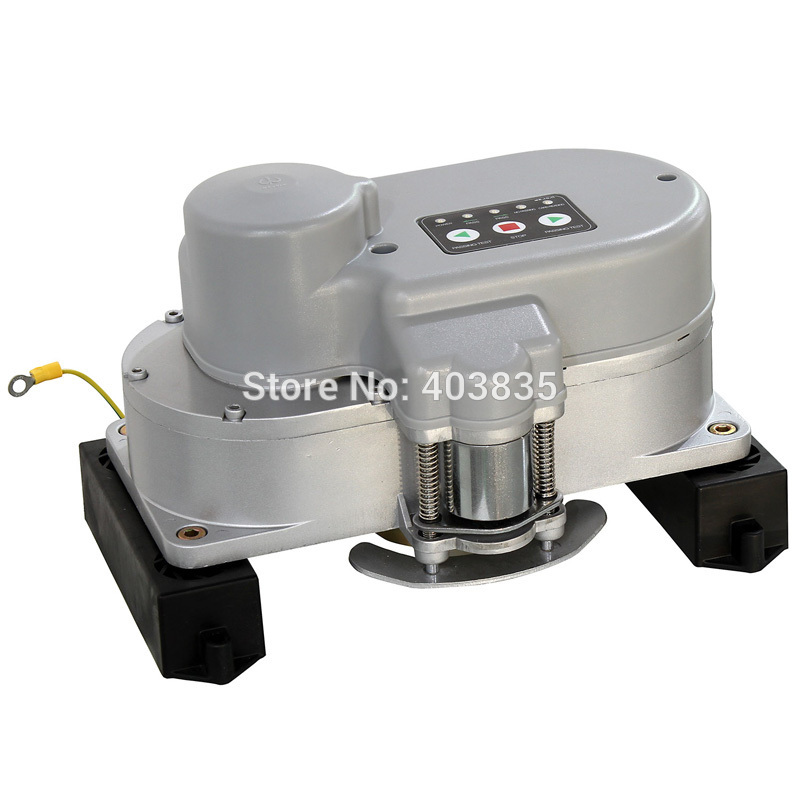

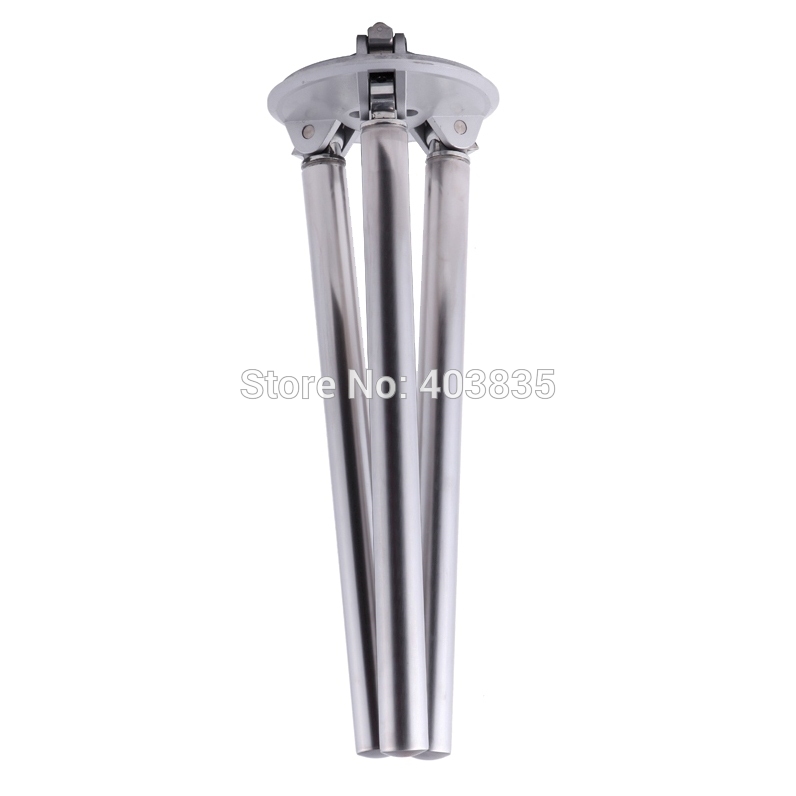

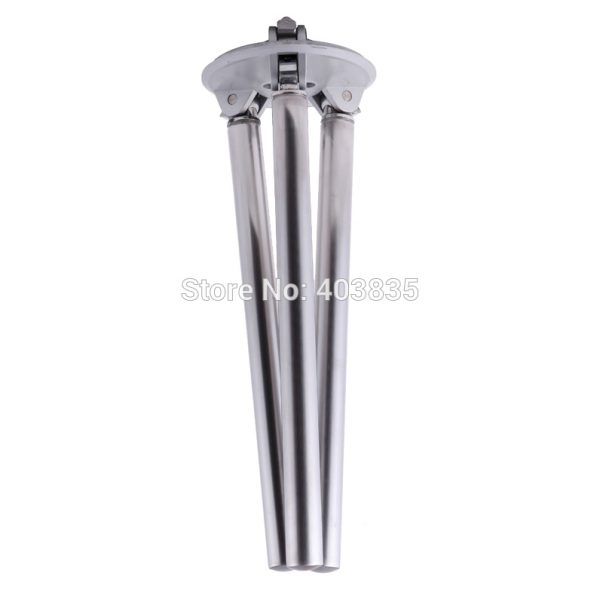

Automatic Turnstile Motor Tripod Turnstile Mechanism for access control turnstile including tripod arms,control board and motor

$882.44 $838.32

Out of stock


SKU: 32778174258
Category:

Description

Automatic Turnstile Motor Tripod Turnstile Mechanism for access control turnstile including tripod arms,control board and motor

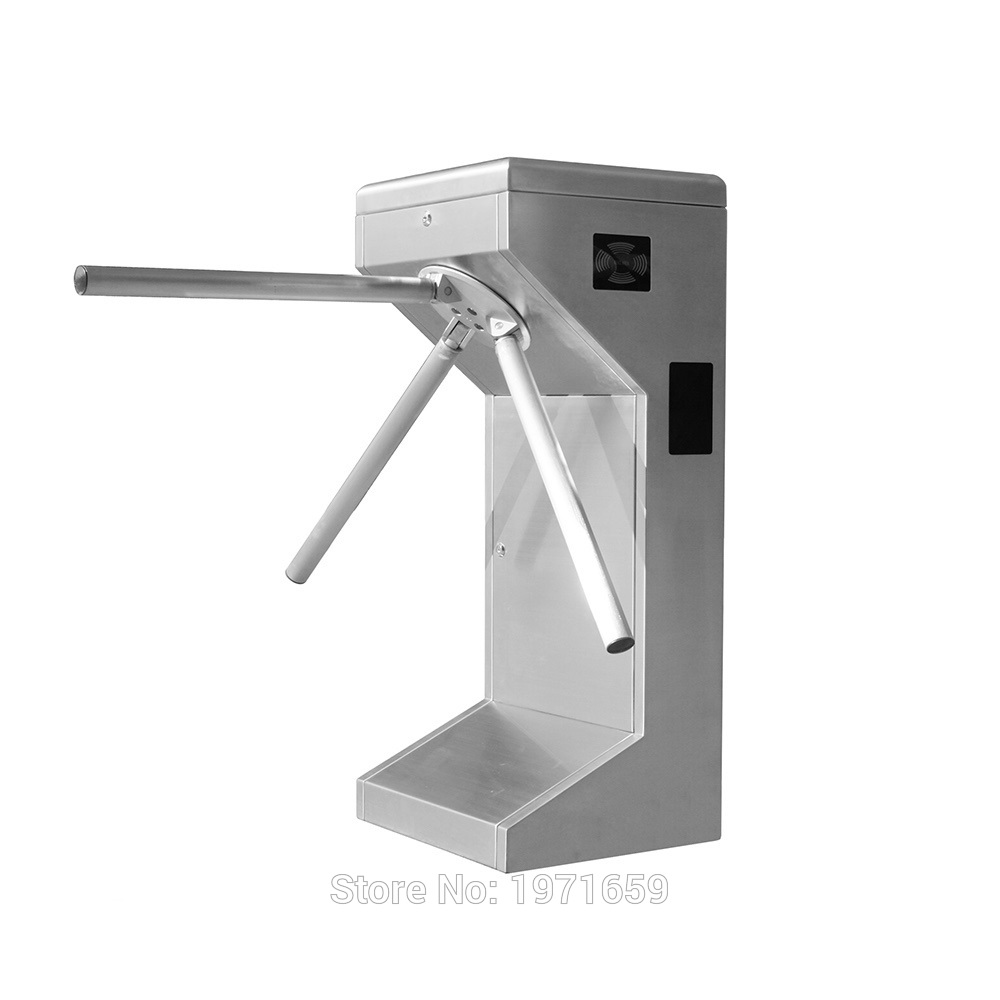

Tripod turnstile:

Function:
1. Single/double walkway—controlled in one direction or both
2. A valid lock action can allow one passage at one time Normally open—the machine will unlock when a valid signal is received
3. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change.
standard port-RS485
Control panel with count and LED digital function
Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing
Transit speed: ≤35 persons/min
Temperature: 10 below degree to 50 degree
situations where need single-direction control such as market club film theatre gymnasium subway airport customs and etc. It can be divided into Vertical

Emergency configuration: The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency.

Detailed Product Description

Turnstile:
1. full automatic
2. IR socket
3. heavy duty and high speed

Turnstile:

Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile

1.All the system runs stable with little noise and no mechanical impact
2.It can self-check and alarm which will be make it convenient to use
3.Several ways of working molds can be chosen at your request
4.It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board
5.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
6.Beam can be lifted and fall when electricity is cut-off
7.It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
8.So all the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance
9.The number of the persons who have passed by can be counted automatically which can also be displayed in LED
10.Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
11.You can set the function with or without card-reading memory according to your requirement
12.The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
13.After reading the card, if the person who punched the card does not pass it within the set time, then this chance to access will be canceled, and the set time can be changed according to your request

Turnstile Mechanism:

We can deliver the goods to all of the countries in the world; please just contact the seller if the aliexpress system does not support to send the goods to your nation. This is because the system default setup has a limited function.

For delivery express, if the buyer chooses EMS, the seller will send the goods with EMS, DHL or UPS or FEDEX or TNTor Aramex according to the situation. For any special requirements, please leave notes for the seller.

Features:

1.Case material 304 SS with a thickness of 1.5mm;

2.DC12V electro-mechanical motor ensures: positive locking operation for one person at a time; prevention of reverse rotation;

3.Emergency time and black out time: the arm will drop automatically to keep a clear passage for evacuation

4.Interfaces available for access control systems as biometric readers, RFID readers, scanning readers,push buttons, ect

5.Bi-directional pass controlled electronically

6.The arm will rise automatically when power on

7. Photo-electric arm positioning

8.Auto-locking when the grace time of the authorised signal ends; and the time is adjustable;

9.Status lights indicators available;

10.Passenger counters available;

Technical Data:

1. Power Supply: 220V/110V (50/60Hz)

2.Power: 30W

3.Flow Speed:35~40 people per minute

4. Indoor use only

Additional information

Security Mode

Fail Secure with Signal

Model Number

TS121M

Brand Name

KINGJOIN&GALO

Direction

Right Handle

Package

carton

is_customized

Yes

warranty

1 year

protection grade:

IP40

flow speed

35 tp 40 people per minute

motor voltage

DC12V

arm length

485MM

motor material:

die-casted aluminum
