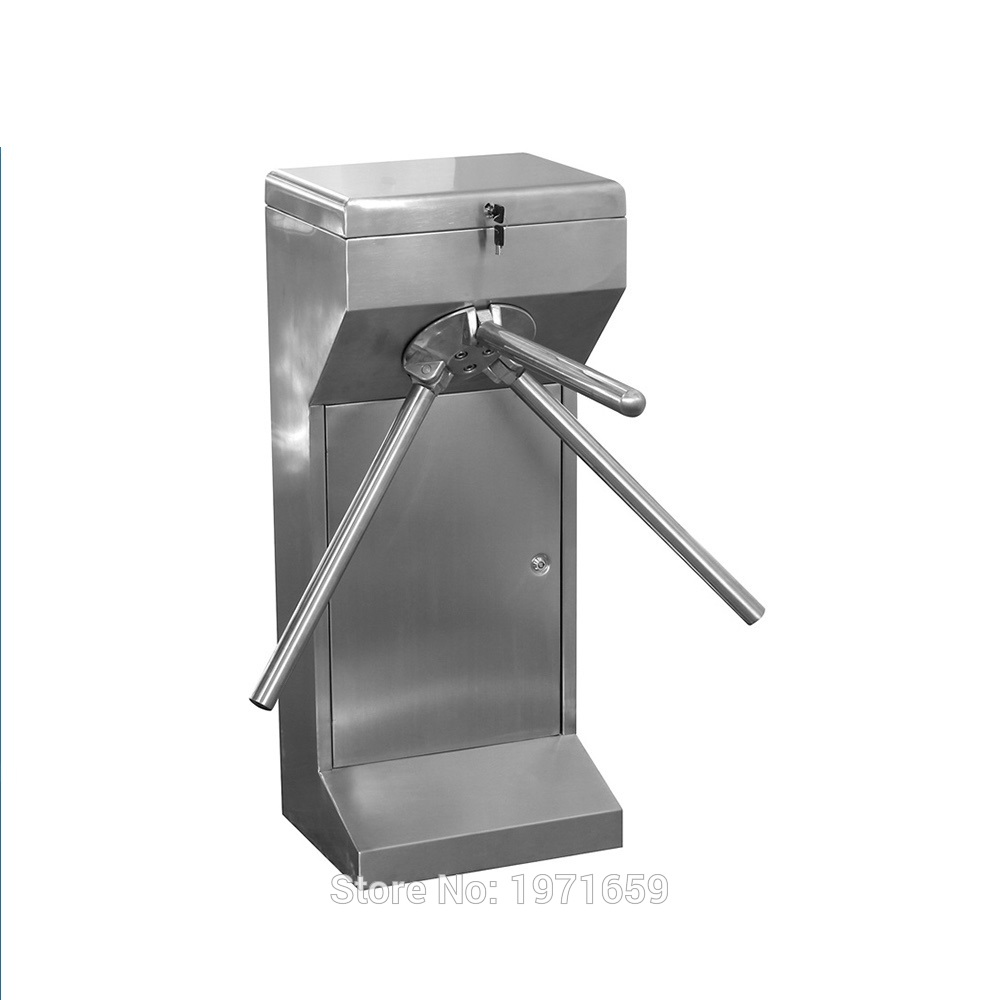

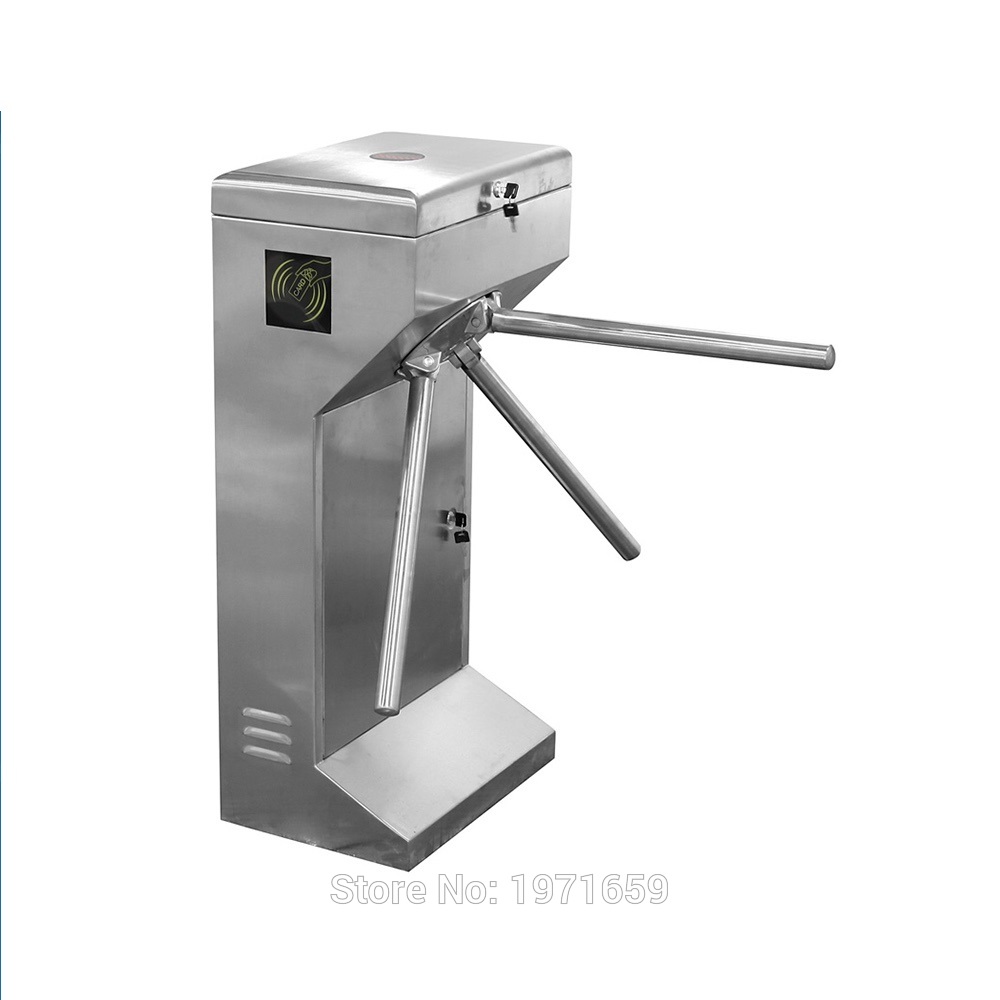

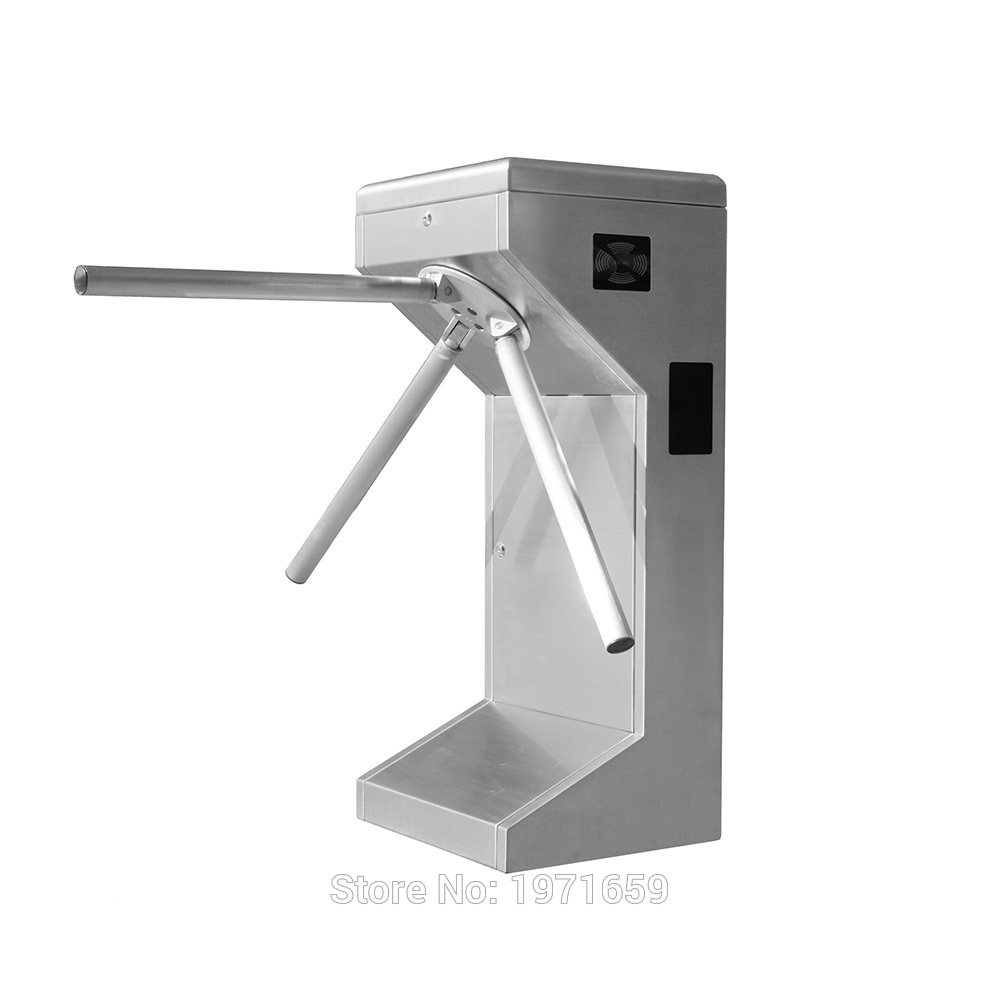

Access Control Semi-Auto Vertical Tripod Turnstile

$765.79 $727.50
Clear

SKU: 32792249941
Category:

Description

Technical Parameters

1

Power

AC220V/110V±10V,50/60HZ;

2

Machine core

semi-automatic

3

Operating Temperature

-45℃-60℃

4

Relative Humidity

≤95%, No Condensation

5

Passage Width

≤600mm

6

Passing Speed

45persons/min

7

Mechanism

8

Input Connection

+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma

9

Communication Connection

RS485 Communication

10

Material

Stainless steel 304,thickness is no less than 1.3mm

11

Communication Distance

1200M

12

Running life

5–8 Million(Continuous Opening and Closing Operation)

13

Protect level

IP54

14

Size

400*330*980mm(Vertical house);

custom made as demand

15

Colour

SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional)

16

Operation Place

Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

Functions& Features

1.Running stable without noise and mechanical impact
2. The passing person number of the persons can be set

3.Several ways of working molds for you to choose

4. Bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds set by the buttons in the main control board

5.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection.
6. Direction-guide lights in the turnstile to tell you whether the direction to go or not

7.The standard electrical interface connected with various kinds of reader and writer equipment, RS485 Communication interface, Relay interface, Level interface

8.All the functions realized in one integration machine and controlled and managed by the computer in the far distance
9.The number of the persons passed by can be counted automatically which can also be displayed in LED
10. Beam can be lifted and fall when power is cut-off, arms auto rise up when power on and auto stop on obstacle

11. The function with or without card-reading memory can be set according to your demand.
12. Self-check and alarm for coinventing to operate

Additional information

Security Mode

Fail Safe with Signal

Brand Name

KINGJOIN&GALO

Model Number

tripod turnstile

Direction

Right Handle

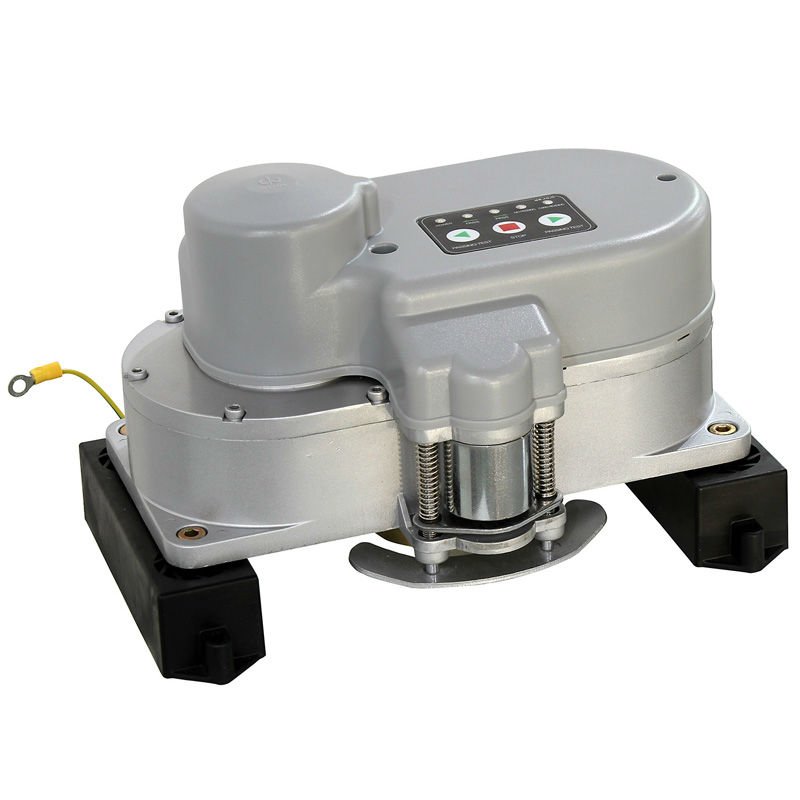

Mechanism:

heavy duty solenoid

RFID READER

yes, built-in

power

AC220V/110V

House Size

400mm*330*980mm

Running life

5–8 Million

Material:

Stainless steel 304,

Passing Speed

45persons/min

product

electoinc
