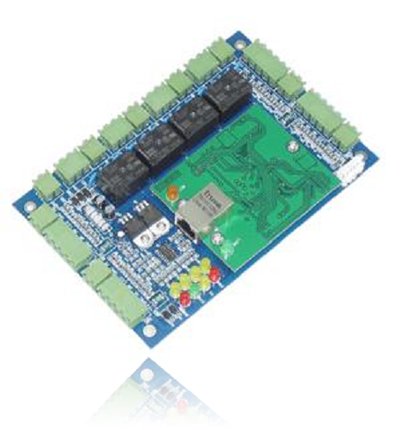

Access control board in shenzhen with magnetic lock

$277.04 $263.19

Out of stock


SKU: 670190282
Category:

Description

Access control board in shenzhen work with magnetic lock push button power supply

Unit Size

218mm *106mm

Unit Packing Way

Brown box

Unit Packing Size

273mm*228mm*65mm

Accessories

User Manual, warranty card

Function Introduction

Conventional Function

offline operation; real time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; revisable and printable report form; report form;report can be exported to excel file; card+password unlocking; alarm for long time unclosing;alarm for invalid card swiping; first card unlocking;alarm for illegal break in; unlocking at definite time; e-map etc.

Professional function

for professional users such as bank,cash house, telecom station, power supply station,prison and plice station: interface locking; intimidation alarm; integrated fire control;anti-passback and anti-tail; interlocking;multi-card unlocking; emergency double locking; in door population checking; unlocking based on internal and external validation.

all-in-one-card management system

nomal shift and multi-shifts time attendance management system; fixed ration dining management system; meeting attendance management system; online patrol management system and security alarm management system.

Parameter

Communication

TCP/IP

English Software supportable database:

SQL

Description

Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button

Power Supply

12VDC; 4-7A

Power Consumption of Circuit Board

Less than 100mA

Input Format of Reader

Wiegand 26 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)

Quantity of Readers

4 pcs

Door Controlled

4

Door opening time extending setting

1-600 Seconds(adjustable)

Max q ‘ ty of controller

Unlimited

Operation Temperature

-40-70

Operation Humidity

10-90 % RH , No Condensation

Q ‘ ty of users

20,000 Users

Q ‘ ty of Event Buffers(offline)

100,000 event buffers

Power interruption protection measure

High Speed Memory, Records never lose

Max Distance from Reader to Controller

100M (suggestion distance 80M)

Max Distance between Controllers

Depand on network range

Collocations

PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton

Alarm for long time door open, ilegal break in, intimidate

Yes

Fire and alarm linkage

If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm

Additional information

Brand Name

MY CIECOO

Model Number

CIB-004

door access controller

four door access control

building controller

complete set of the door access controller available

suitable for

bank cash house etc

work with

magnetic lock exit buttons etc

free software SDK

yes

with real time attendance functions

supported

Place of Origin

Guangdong, China (Mainland)

is_customized

Yes
