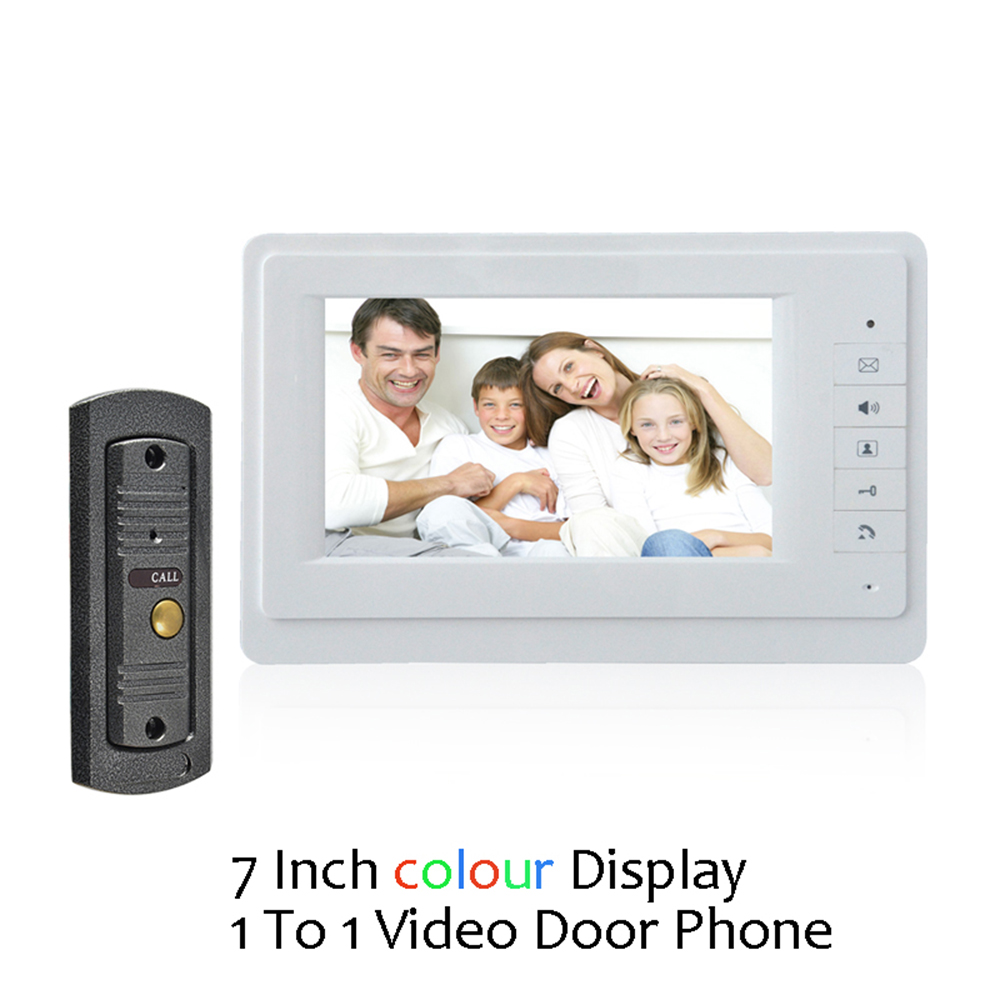

(1 set) Home use 1 to 1 Video door phone smart home system Video intercom waterproof camera 7 inch color monitor free shipping

126.24$ 119.93$

10 in stock

Qty :

SKU: 32811835796
Category:

Description

Feature:

1.7 inch color TFT-LCD screen,low power consumption without rediation

real widedisplay with high resolution

2.Hands-free talkhack funtion

3.Electronic control lock function

4.Outdoor monitioring function

5.Indoor mutual talkback funtion

6.Voiding disturbing during rest time function

7.Video in:to connect the external camera

Video out:to connect the DVR for recording

8.Indoor phone has thin design,aluminum deck or top grad acrylic panel electroplating buttons;

all of this makes its luxurious high-quality decorative style

9.There are 24 pieces beautiful chord music ringtone can be chosen

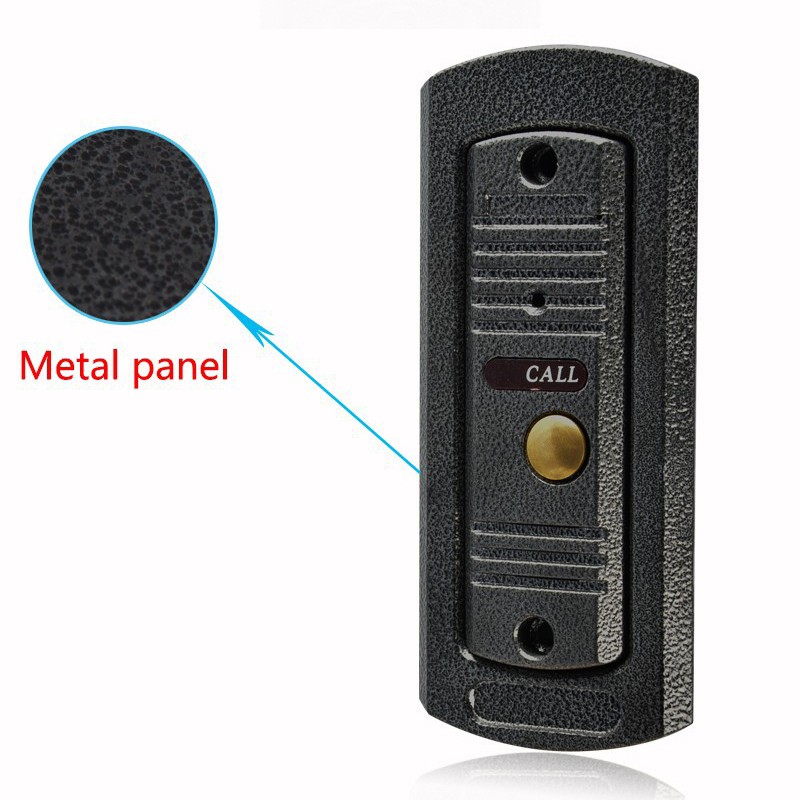

10.Outdoor station is exquisite and durable;it has function of viewing in the night by infrared,

The embedded installation makes it nice and safe

11.The available distance is 200M to connect the connection wire;it will not affect the picture is

shows and talkback

12.Complete accessories are attached,users can install the machine by themselves depend on the“operation

instruction”. the also can enjoy the happiness which is from the installation

Indoor unit specification:

1.screen size:7 inch(16:9display)
2.Resolution digital:800*480pixel
3.Visual angle:up 50degree,down 70 degree,left or right 70degree
4.Brightness:200CD/sq.m
5.Ringtone:chorded polyphonic ringtone
6.Sensitivity:56DB
7.Signal system:PAL
8.Input voltage:AC100-240V
9.Overall poer consumption:6W max(400mA)
10.Stand by poer comsumption:1.1W max
11.Power adapter specification:DC 15V
12.Talk time delay:120S
13.Monitor time delay:40S
14.Effective distance:200M(4.0.75 sq.m.m)
15.Operating temperature:-20 to 60 degree
16.Relative humidity:10% to 90%
17.Indoor unit installation method:wall-mounted type

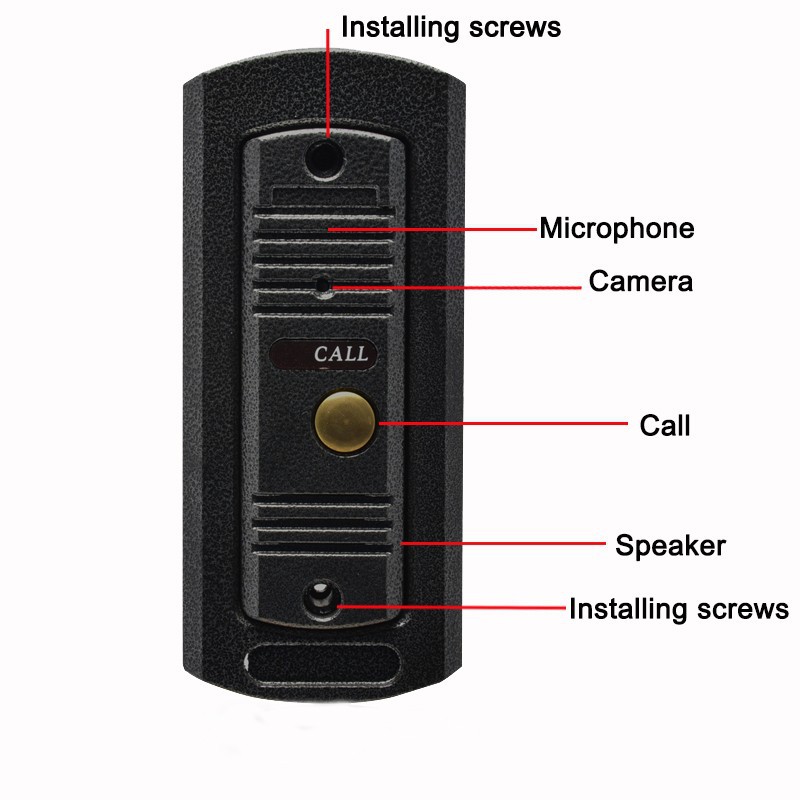

Outdoor unit:

1.Infrared lamp lighting distance:approximate 4 meters

2.Gain control:auto

3.Resolution:600 lines

4.Talk time delay:120S

5.Image transmission distance:approximate 200 meters

6.Visual angle:92 degree

7.KW:2W max

8.Power:DC 15V

9.Camea:High definition and colorful CMOS

10.Outdoor infrared night vision function:10 LUX infrared

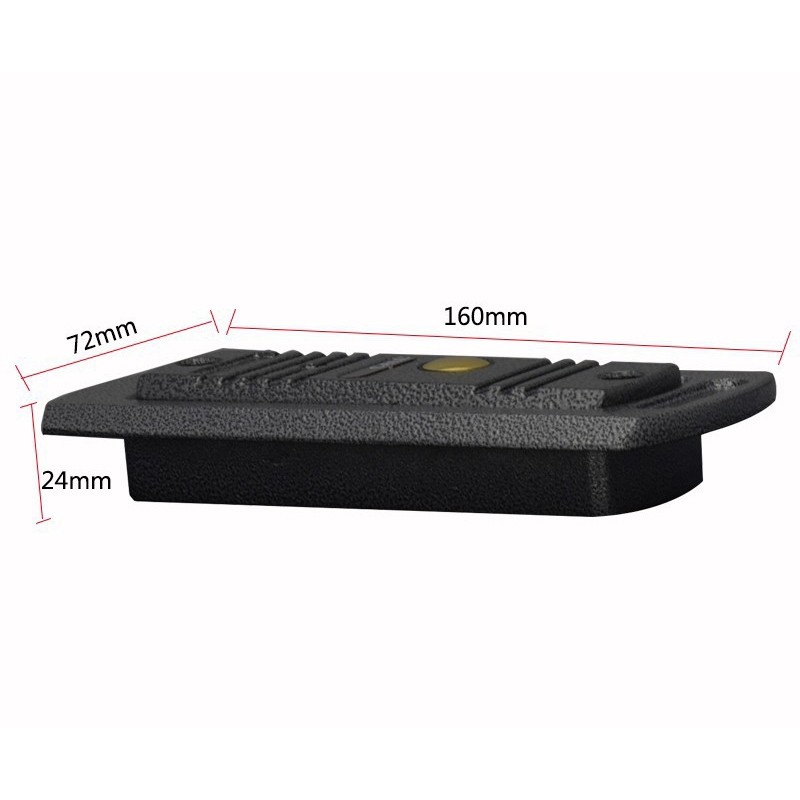

11.Outdoor unit installation:embedded or wall-mounted type

1.Connect the 4P cable with the outdoor camera,the other side to the indoor monitor 1 socket,

and then connect the 2P cable to the indoor monitor socket,at last plug the power in

2.When the visitor press the call button in the outdoor unit,the indoor unit rings and show the

vistor’s image.when the house master press the talkback button,they can talk with each other.the

talk tiem and image delay is approximate 120 seconds.

3.When the unit is power on,you can press unlock button in the indoor unit to unlock the electronic

lock

4.When you press the monitor button in the indoor unit,you can monitor the outdoor suituation for

40 seconds each time

5.Press the monitor button and then the talk button and you can monitor the outside and talk with

the visitor.if you finish talking,you can press the talkback button to shutdown the indoor unit

6.The birghness.color.ringtone volume of the indoor can be adjustment by the rotary button or menu

to get the optimal effect

7.In the monitor situation,press the ringtone button and you can hear several ringtones,you can choose

the one you prefer and doing no more operation means set it successful.when the indoor unit is blakout.

all the ringtones will resume to the default setting

Pls leave a message tell me what adapter you need,we will send EU type without message

About Shipping

1.If the package is below 2KG and NO Battery,we usual use the China Post Air Mail,If the package have battery,we usual use the Netherland Post;If the package is over 2KG we usual use the DHL or another special line logistics(such as aramex)

2.Most of country will arrivel in 40 days use china post air mail,but sometimes maybe have some reason delay the time.we will extend the date.Please Do Not worry.I think the package will arrivel to you finally.if not we will compensate all the money.

3.If the package shipping by DHL.when arrivel your country,The customs maybe need you offer infromation to clearance.So keep your cell phone is on line.usually DHL will arrivel in 20 days since the date of send

4.I really Do not like the negative feedback,if the product have some problem or you do not know How to use it,please tell me,i will answer you as soon as possible

Additional information

Sensor Size(Inch)

1/3

IP Camera Interface

Yes

Display Screen Size(inch)

Other

Resolution

> 420 TV Line

Material

ABS

Waterproof

Yes

Display Screen Type

Color

Connection Method

Wired

Installation

Wall Mounting

Brand Name

BESTWILL

Kit Configuration

One to One video doorphone

Doorbell

Yes

Power

100-240VAC

Viewing Angle (°)

92

Technology

Analog

Camera Sensor type

CMOS

Type

Intercom System

Model Number

714C9

Answering Mode

Hands-free

Communication Interface

Wired

Size

7 inch display

Samrt Home Interface

No

Camera

Other
