Establish USA warehouse and Russian warehouse （Order give me message check stock）
NIGHT VIDEO DEMO: https://youtu.be/QVoa4mHVGto (Youtube Select HD Player)
Suppor IPAD /Phone View IOS / Android APP
APP Video Demo Search Download “Secureye”

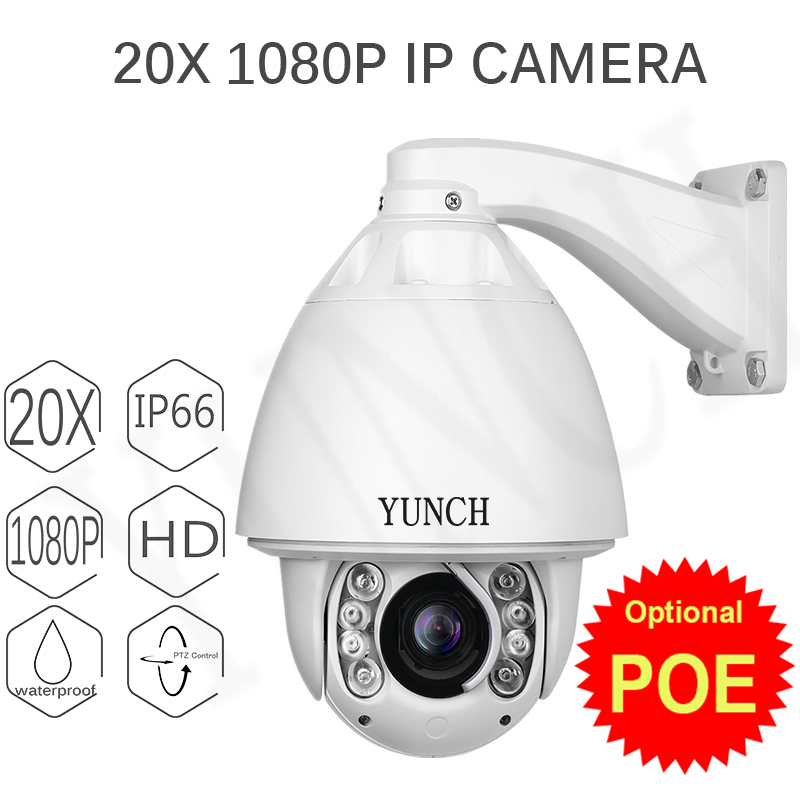

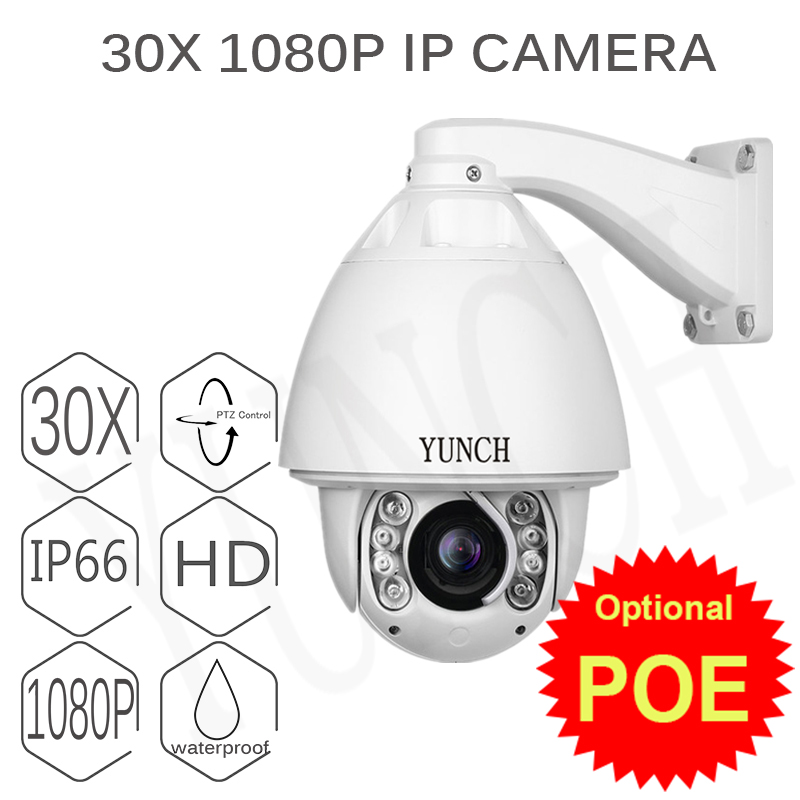

Optional POE Blue Iris CCTV Camera 2017 New 20X/30X Optical Zoom IR 150M/200M High Speed Dome Full HD1080P Auto Tracking PTZ IP Camera Support IVM*-4200 Software and HIK NVR
Support hik IVMS 42** Software Login
Support Internet Explore Login
Specifications
1080P 2MP IP IR PTZ Camera
1. 20X/30X optical zoom 16x digital zoom
2. 150m IR range /200m
3. WDR/ DNR(2D&3D)
4. 1/2.8”CMOS
Feature
High Quality 2 megapixel 20x/30x Speed Dome Panasonic outdoor security cam
1/2.8”Exmor CMOS Sensor ,WDR,DNR(2D &3D)
20x /30x optical zoom 16X digital zoom
2MP high resolution
150m /200mIR Range,IP66 Rating
Specification
|
Model |
YC-HD785R-20X/YC-HD785R-30X |
|
Image Sensor |
1/2.8″ Exmor CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Minimum Illumination |
Color: 0.5Lux F1.6, B/W: 0.02Lux F1.6 |
|
White Balance |
Auto / Manual / One Touch WB / ATW |
|
Min. Illumination |
Color: 0.05Lux (F1.6, AGC ON), B/W: 0.005Lux (F1.6, AGC On); 0 Lux with IR |
|
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
AGC |
Auto/Manual |
|
S/N Ratio |
>50dB |
|
Day & Night |
IR Cut Filter |
|
Digital Noise Reduction |
3D DNR |
|
Wide Dynamic Range |
Digital WDR |
|
Shutter Speed |
50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s |
|
Focus Mode |
Auto/Semiautomatic/Manual |
|
Enhancement |
Smart Defog: on/off |
|
Focal Length |
4.5 ~ 94mm 20X , Digital Zoom 16X/// 4.5-133mm,30X Digital Zoom 16X |
|
Zoom Speed |
Approx 2.7s(Optical Wide-Tele) |
|
Angle of View |
58.3 ~ 3.2 degree (Wide-Tele) |
|
Min. Working Distance |
10 ~ 1,500mm (Wide-Tele) |
|
Aperture Range |
F1.6 ~ F3.5 |
|
IR Distance |
150M /200M |
|
Day& Night |
ICR |
|
Auto Focus |
Auto / Semi-automatic / Manual |
|
Ethernet |
10Base -T, /100Base-TX, RJ45 Connector |
|
Max.Image Resolution |
1920×1080 |
|
Frame Rate |
50Hz:25fps( 1920×1080P),25fps((1280×720P) 60Hz:30fps( 1920×1080P),30fps((1280×720P) |
|
Image Compression |
H.264 |
|
Audio Compression |
NO |
|
Protocols |
TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, RTSP |
|
No. of Users |
Up to 6 user |
|
Dual Stream |
Support |
|
User/Host Level |
3 Levels: Administrator, Camera control, Live view online |
|
Protocols |
IPv4.HTTP, UPnP, DNS, DDNS, RTSP, TCP/IP, UDP, DHCP |
|
Simultaneous Live View |
Up to 10 |
|
Streams |
Two Streams +Mobile phone stream |
|

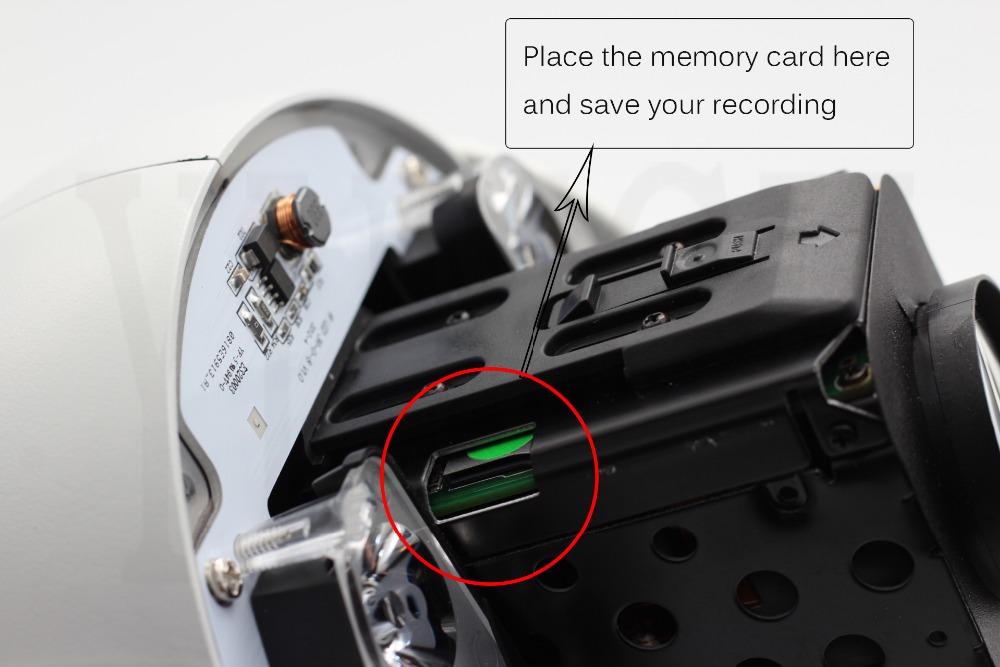

Mini Memory Card Port |
Support 16G/32G/64G |
|
User/Host Level |
Up to 32 users, 3 Levels: Administrator, Camera control, Live view only |
|
Application programming |
Open-ended API, support Onvif |
|
Camera Control |
Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode |
|
Client software |
Support PC software,NVR |
|
Web Browser |
IE 7, IE 8, IE 9 |
|
Auto tracking |
Support |
|
Security Measures |
User authentication (ID and PW), host authentication (MAC address) |
|
Pan Range |
360° endless |
|
Pan Speed |
High Speed: 0.01° ~ 200° /s |
|
Tilt Range |
-5° ~ 92° (auto flip ) |
|
Tilt Speed |
High Speed: 0.01° ~ 120° /s |
|
Pan preset speed |
High Speed: 340° /s |
|
Number of Preset |
255 |
|
Pattern |
4 patterns, with the recording time not less than 10 min per pattern |
|
3D Position |
Yes |
|
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Working Temperature/ Humidity |
-40°C ~ 75°C (-22° F ~ 149° F), 90% or less |
|
Protection Level |
IP66 with TVS 4000V lightning protection, surge protection and voltage transient protection |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
50W MAX |
|
Color / Material |
White / Aluminum |
|
Net Weight(approx.) |
6.0Kg (7.0Ibs) |
IVMS 42** Software Login
