OwlCat Hi3516C+SONY IMX323 PTZ IP Camera Wireless WiFi Security CCTV Camera Full HD 1080P 2.8-12mm 4XZoom P2P Night Vision Onvif
Features:
Image Resolution: Full HD 1080P 2 Megapixels 1920×1080
Sensor: 1080P: Hi 3516C + SONY IMX222
Support WIFI
Support Micro SD Card Slot, max upto 128GB ( SD card is not include )
2.8-12mm 4X optical zoom auto focus lens

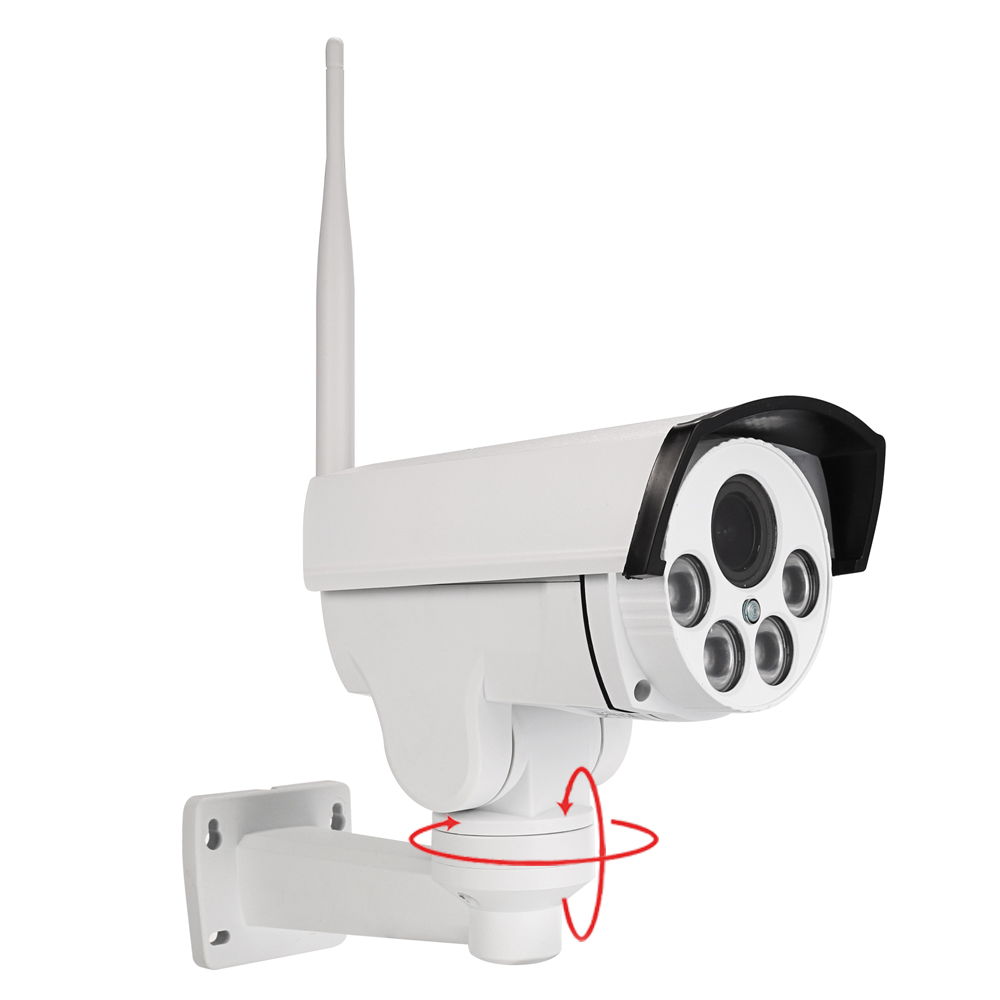

Pan Tilt rotation, horizontal:300 & vertical:60
Waterproof IP66 for both Indoor & Outdoor Environment Use
Built in IR-CUT, 4pcs array infrared LEDs, 50m Night Vision
Support Onvif 2.0
Support P2P, view & anywhere & anytime
Elegant outline and easy installation
Provide Android & iPhone OS APP (APP name” CamHi” ) and professional CMS PC client software
Remote recording / playback from your PC hard disk or SD Card
Motion Detection Support.
Specifications:
|
Camera |
Operating system |
Embedded Linux OS |
|
Processor |
HI3516C |
|
|
Sensor |
1/2.8″ sony222 low lux CMOS digital image sensor |
|
|
Lens interface type |
M12 |
|
|
Lens |
2.8-12mm 4X zoom auto focus lens |
|
|
View angle |
89.9°-26.2° |
|
|
Min.illumination |
0.05 Lux / 0 Lux(IR on) |
|
|
Day&Night mode |
Auto IR-CUT |
|
|
Night vision distance |
4pcs array IR LEDs. IR irradiation distance 50m |
|
|
Video |
Video compression standard |
H.264 Main Profile/H.264 Baseline |
|
Video streaming |
Three streaming |
|
|
Video resolution |
First stream: 1080P(1920×1080), 720P(1280×720), Q720P(640×352) Second stream: Q720P(640×352), QQ720P(320×176) Third stream: QQ720P(320×176) JPEG stream(Monitoring for mobile phones): Q720P(640×352), QQ720P(320×176) |
|
|
Video code rate |
32 to 8192Kbps. supports constant bitrate/variable bitrate |
|
|
Video frame rate |
25fps Real Time |
|
|
Image settings |
Brightness, saturation, contrast, Sharpness, Exposure, flip, mirror |
|
|
Image enhancement |
Backlight compensation, Automatic white balance, Digital WDR, 3D digital noise reduction |
|
|
Storage |
Micro SD Card |
Support max 128G Micro sd card slot (Card is not include) |
|
Audio |
Audio compression standard |
G.726/G.711 |
|
Audio code rate |
Rate adaptive |
|
|
Function |
Motion detecting |
can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
Alarm send pictures to the specified mailbox, alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro SD card, alarm message push |
|
|
Privacy mask |
maximum support 4 users to simultaneously browse |
|
|
OSD |
support camera name, date and time information superimposed |
|
|
User management |
Supports user and rights management |
|
|
Simultaneous viewers |
Maximum support 4 users to simultaneously browse |
|
|
Network protocol |
TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc. |
|
|
Connection protocol |
Support ONVIF 2.0 (backward compatible) |
|
|
Wireless |
Wireless standards |
IEEE802.11b. 802.11g. 802.11n Draft |
|
Frequency range |
2.4 GHz to 2.4835 GHz |
|
|
Wireless Security |
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
|
|
Transmission rate |
11b: 11Mbps.11g :54Mbps.11n :135Mbps |
|
|
PTZ |
Rotation angle |
Horizon: 0°to 300. Vertical: 0° to 60° |
|
Horizontal speed |
12/S |
|
|
Vertical speed |
12/S |
|
|
Preset |
Support 8 preset points |
|
|
Interface |
Power interface |
1 5.5mm power interface |
|
Ethernet |
1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface |
|
|
General specification |
Power supply |
DC 12V 2A |
|
power |
Day: 3W. Night: 8W |
|
|
Operating temperature |
-20 to +60 |
|
|
Operating humidity |
10% to 95% |
|
|
Waterproof level |
IP66 |
|
|
Material |
Aluminum |
|
|
Installation |
Rack mounting |
|
|

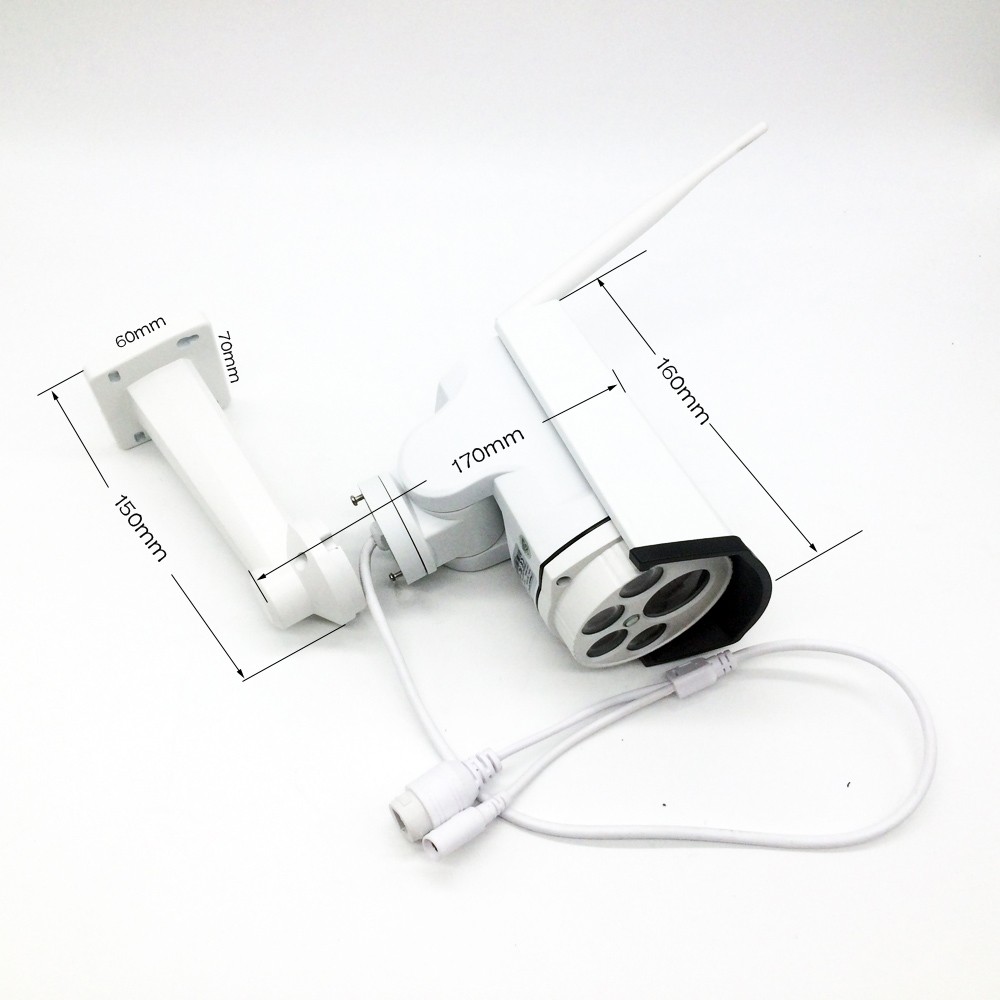

Size(W×D×H)(mm) |
||
|
Weight(kg) |
1.2kg |
|
|
Accessories |
1*1.5M Power supply. 1*CD. 1bag*Screws. 1*antenna. 1*manual |
|
|
Package Size(W×D×H)(mm) |
204*184*133 |
|
|
Package Weight(kg) |
1.5kg |

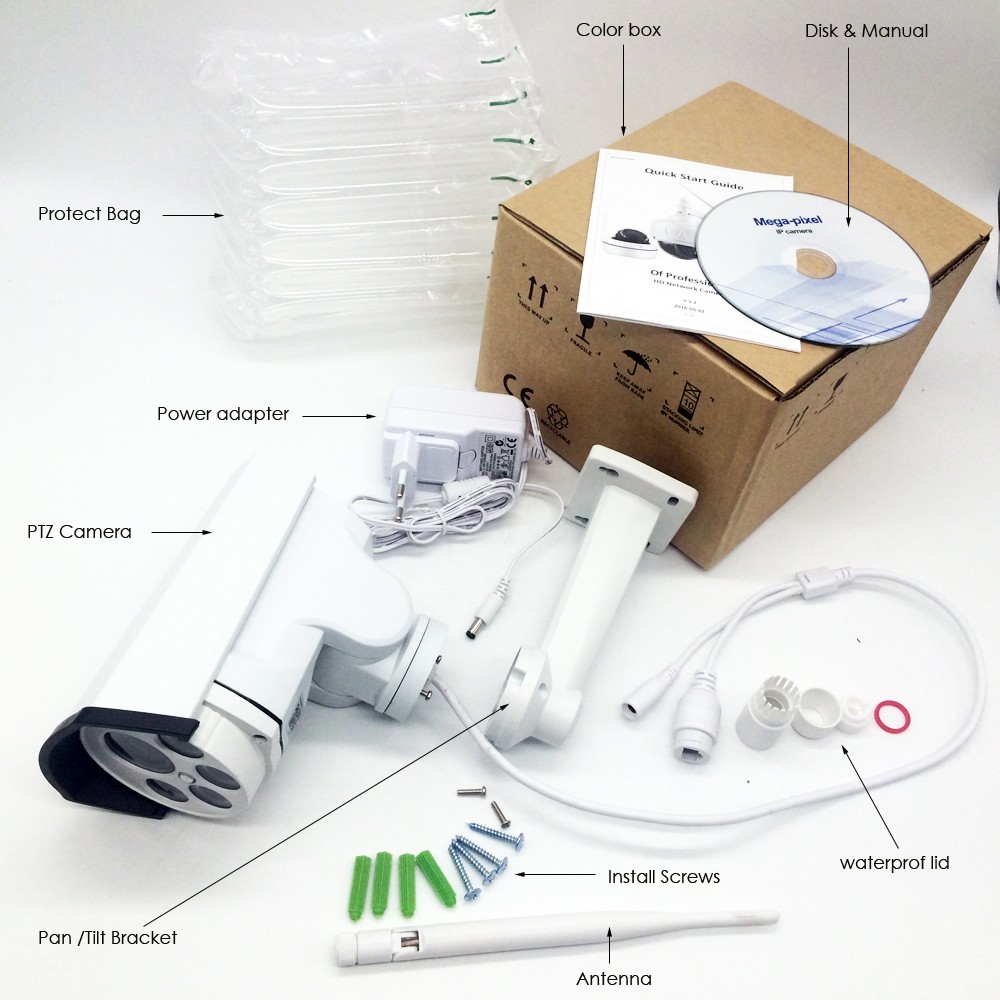

Package comes with below list in this photo:
